DTC P0710: A/T Fluid Temperature Sensor Circuit: Description: Notes

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

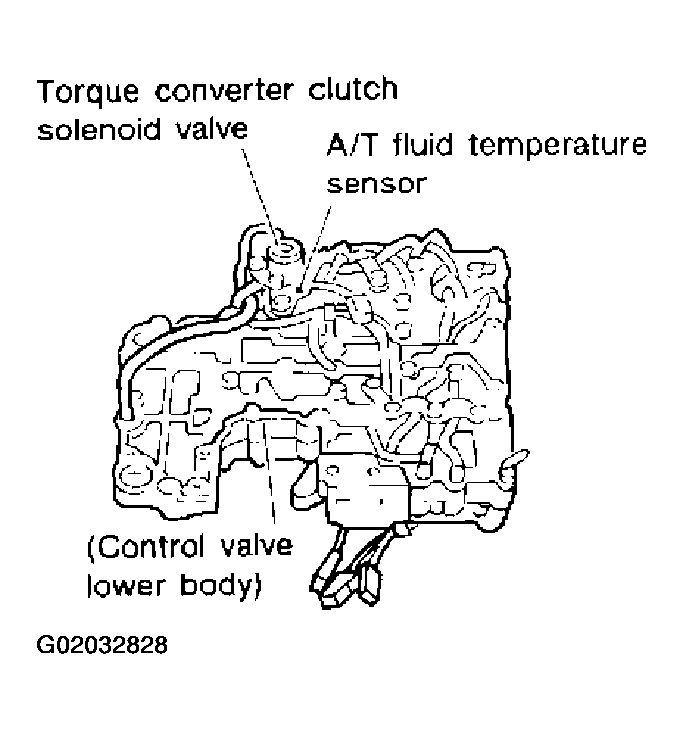

Fig 1: Identifying Torque Convertor Clutch Solenoid Valve And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: A/T Fluid Temperature Sensor Characteristics

Courtesy of NISSAN MOTOR CO., U.S.A.
