CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 1: CONSULT-II (Start Screen)
    G02032701Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".
    Fig 2: CONSULT-II (Touch A/T)
    G02032702Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".

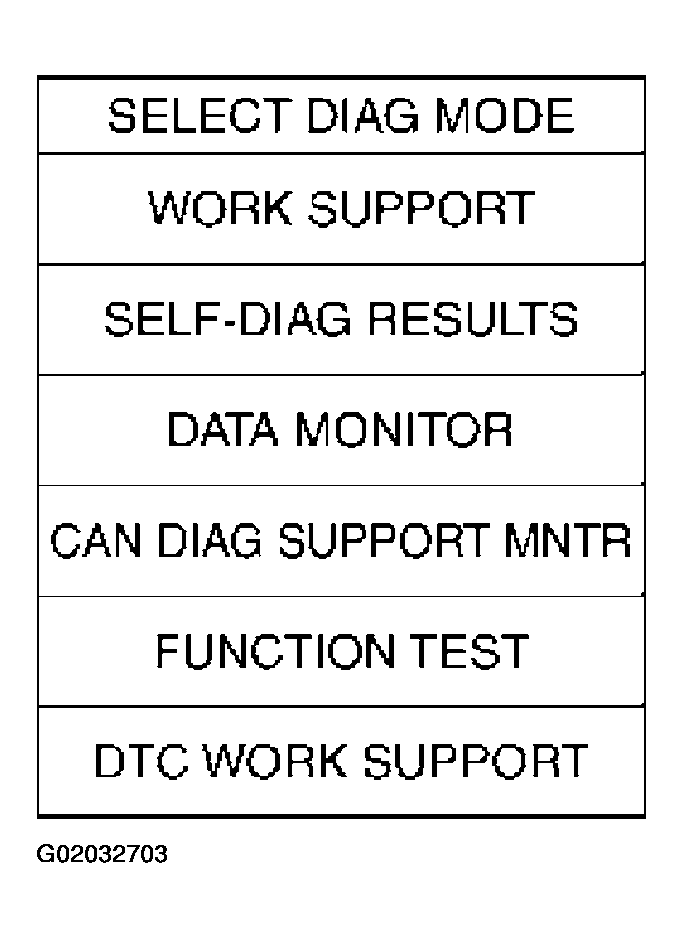

    Fig 3: CONSULT-II (Touch DTC Work Support)
    G02032703Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).
    Fig 4: CONSULT-II (Touch Select Item Menu, 1ST 2ND Etc. Display)
    G02032704Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".
    Fig 5: CONSULT-II (Touch Start Display)
    G02032705Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".
    Fig 6: CONSULT-II (DTC Confirmation Procedure In Trouble Diagnosis)
    G02032706Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".
      Fig 7: CONSULT-II (Screen Changes From Out Of Condition To Testing)
      G02032707Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
    Fig 8: CONSULT-II (Stop Vehicle Display)
    G02032708Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 9: CONSULT-II (NG Display)
    G02032709Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

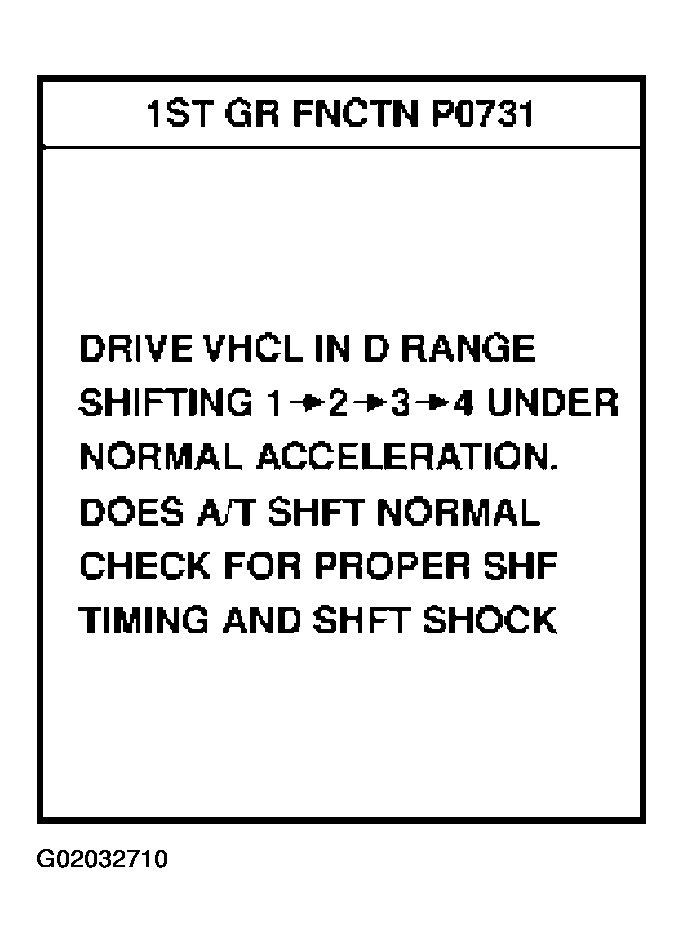

    Fig 10: CONSULT-II (Test Drive To Check Gear Shift Display)
    G02032710Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".
    Fig 11: CONSULT-II (Touch YES or NO DISPLAY)
    G02032711Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

    Fig 12: CONSULT-II (OK Display)
    G02032712Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 13: CONSULT-II (NG Display)
    G02032713Courtesy of NISSAN MOTOR CO., U.S.A.
