Manual Control Linkage Adjustment

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever from "P" position to "1" position. You should be able to feel the detents in each position.

If the detents cannot be felt or the pointer indicating the position is improperly aligned, the linkage needs adjustment.

Place selector lever in "P" position.
Loosen lock nuts.

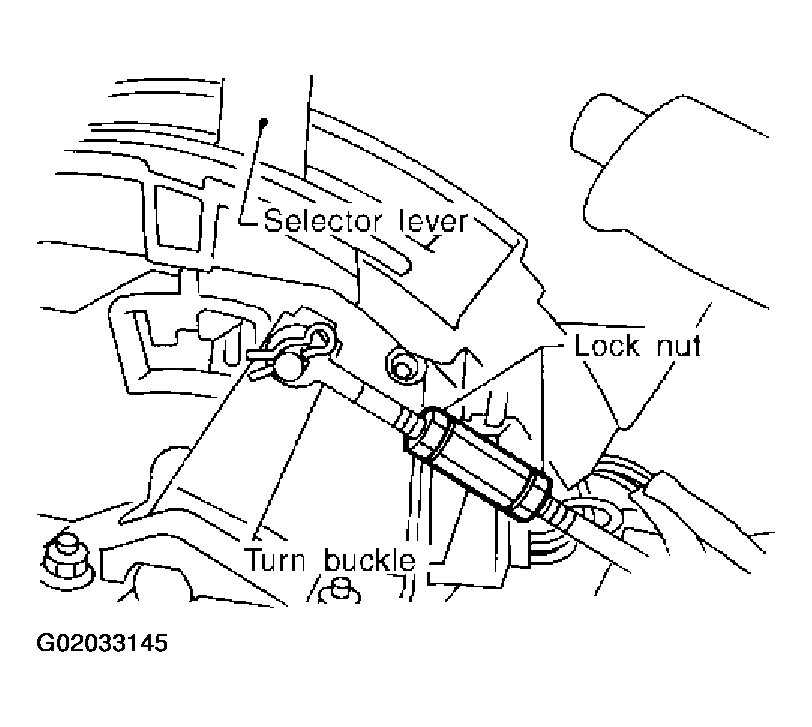

Fig 1: Locating Selector Lever And Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten turn buckle until aligns with inner cable, pulling selector lever toward "R" position side without pushing button.
Back off turn buckle 1 turn and tighten lock nuts to the specified torque.
Lock nut:

: 4.4 - 5.9 N.m (0.45 - 0.60 kg-m, 39.1 - 52.1 in-lb)
Move selector lever from "P" position to "1" position. Make sure that selector lever can move smoothly.

Fig 2: Pulling Selector Lever Toward "R" Position Without Pushing Button
Courtesy of NISSAN MOTOR CO., U.S.A.
