- 4WD Model -

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear engine mounting member from side member while supporting A/T with transfer case with jack. Tighten rear engine mounting member to the specified torque. Refer to "REAR ENGINE MOUNTING ".
  2. Lower A/T with transfer case as much as possible.
  3. Remove revolution sensor from A/T.
  4. Reinstall any part removed.
    • Always use new sealing parts.

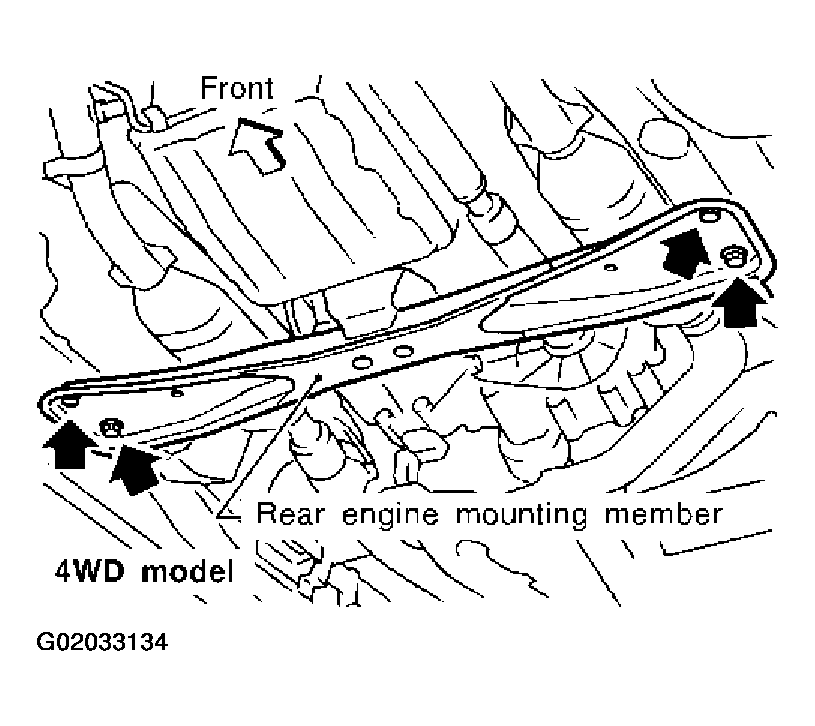

      Fig 1: Removing Rear Engine Mounting Member From Side Member
      G02033134Courtesy of NISSAN MOTOR CO., U.S.A.
