Turbine Revolution Sensor Replacement

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/T assembly, Refer to "Removal ".
Remove turbine revolution sensor from A/T assembly upper side.
Reinstall any part removed.
- Always use new sealing parts.

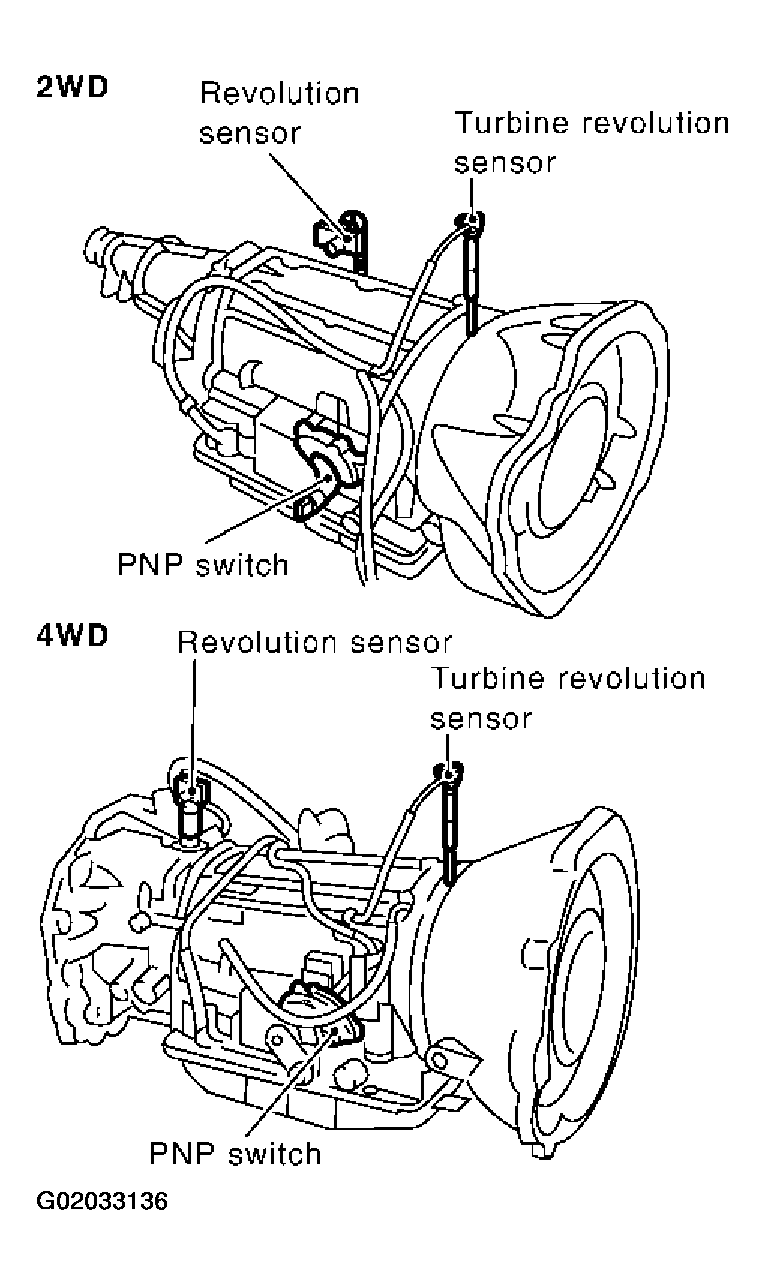

  Fig 1: Removing Turbine Revolution Sensor From A/T Assembly Upper Side
  Courtesy of NISSAN MOTOR CO., U.S.A.
