Band Servo Piston Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Block one oil hole in OD servo piston retainer and the center hole in OD band servo piston.
Apply compressed air to the other oil hole in piston retainer to remove OD band servo piston from retainer.

Fig 1: Applying Compressed Air To Other Oil Hole In Piston Retainer To Remove OD Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-ring from OD band servo piston.

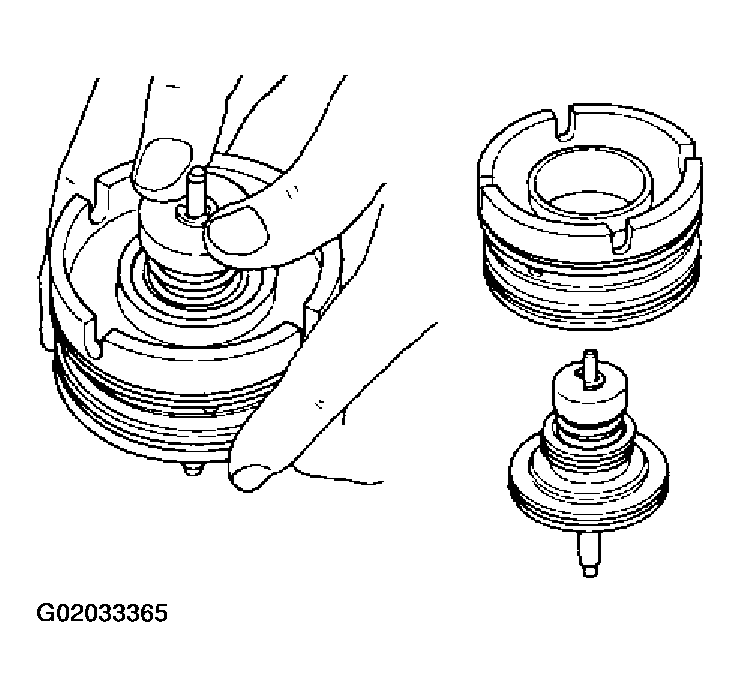

Remove band servo piston assembly from servo piston retainer by pushing it forward.

Fig 2: Removing Band Servo Piston Assembly From Servo Piston Retainer By Pushing It Forward
Courtesy of NISSAN MOTOR CO., U.S.A.
Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring.

Fig 3: Removing E-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove servo piston spring retainer, return spring C and piston stem from band servo piston.

Fig 4: Removing Servo Piston Spring Retainer, Return Spring C And Piston Stem From Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove E-ring from band servo piston.

Fig 5: Removing E-Ring From Band Servo Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove servo cushion spring retainer from band servo piston.
Remove D-rings from band servo piston.
Remove O-rings from servo piston retainer.

Fig 6: Removing O-Rings And D-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
