Oil Pump: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

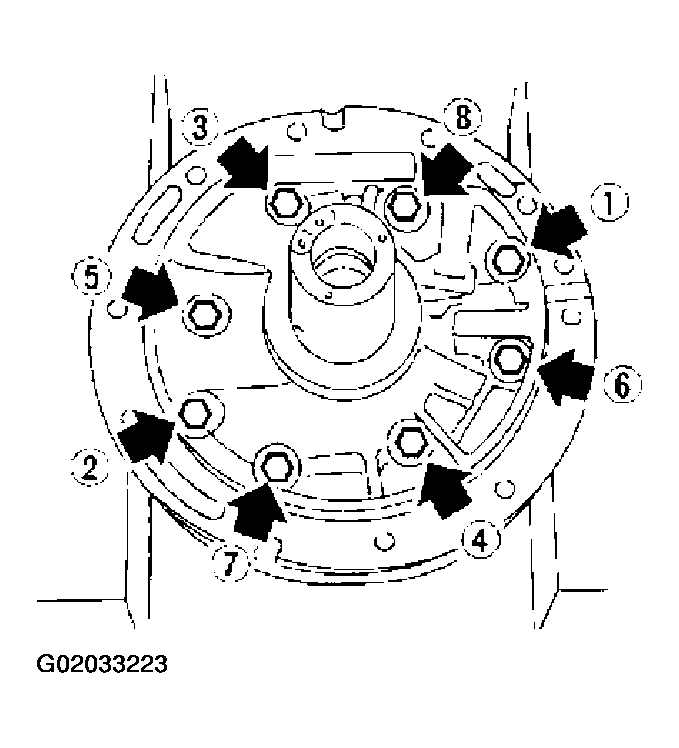

Loosen bolts in numerical order and remove oil pump cover.

Fig 1: Loosening Sequence Of Oil Pump Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rotor, vane rings and vanes.
- Inscribe a mark on back of rotor for identification of shaft direction when reassembling rotor. Then remove rotor.

  Fig 2: Locating Inscribe Identification Marks
  Courtesy of NISSAN MOTOR CO., U.S.A.

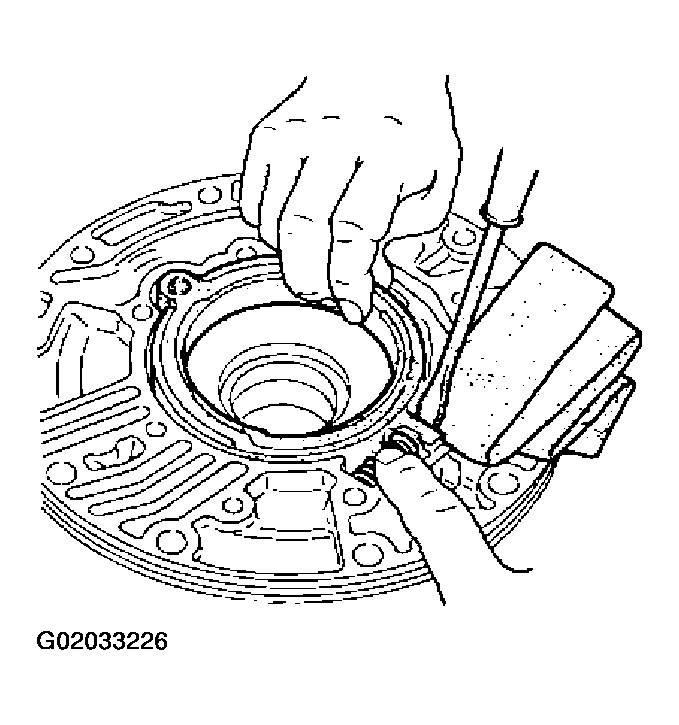

While pushing on cam ring remove pivot pin.
- Be careful not to scratch oil pump housing.

  Fig 3: Removing Pivot Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.

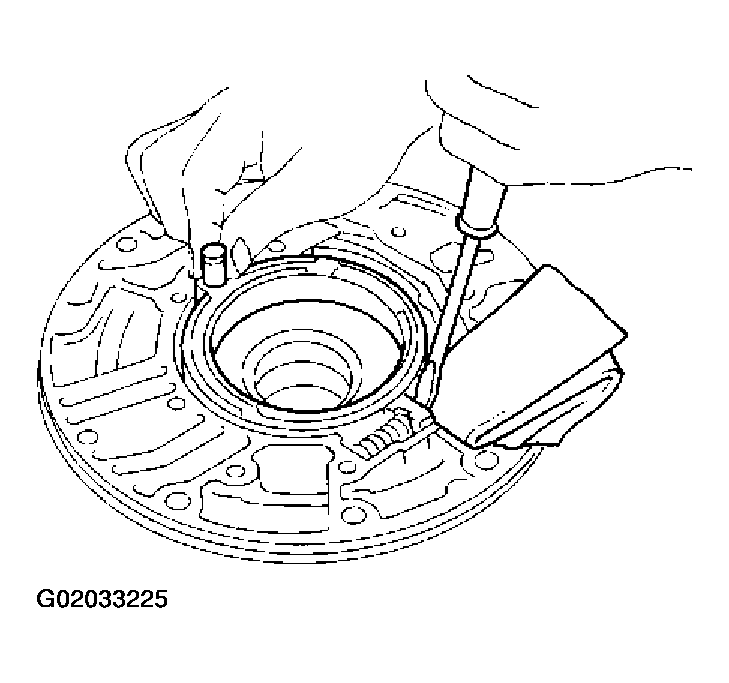

While holding cam ring and spring lift out cam ring spring.
- Be careful not to damage oil pump housing.
- Hold cam ring spring to prevent it from jumping.

  Fig 4: Lifting Out Cam Ring Spring
  Courtesy of NISSAN MOTOR CO., U.S.A.

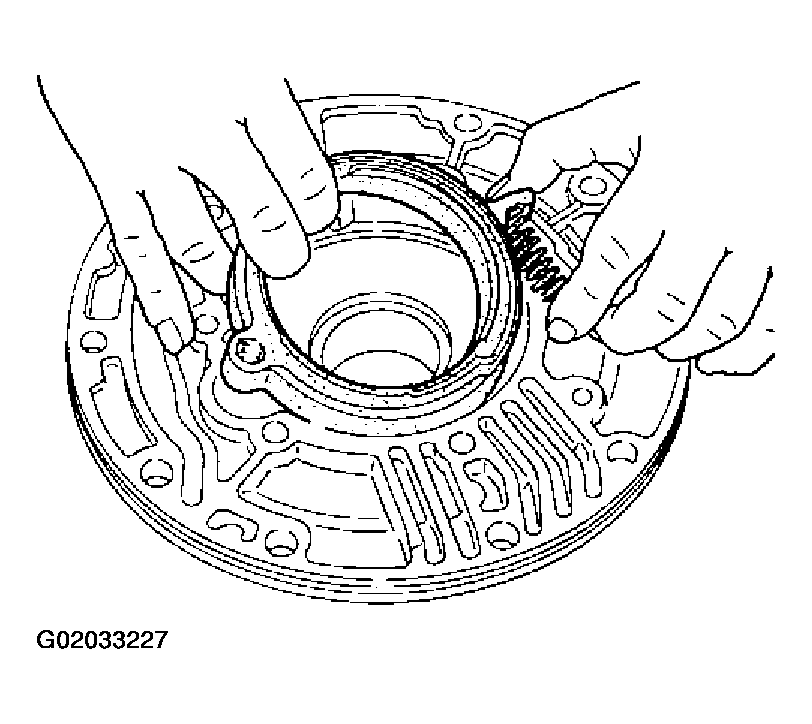

Remove cam ring and cam ring spring from oil pump housing.

Fig 5: Removing Cam Ring And Cam Ring Spring From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

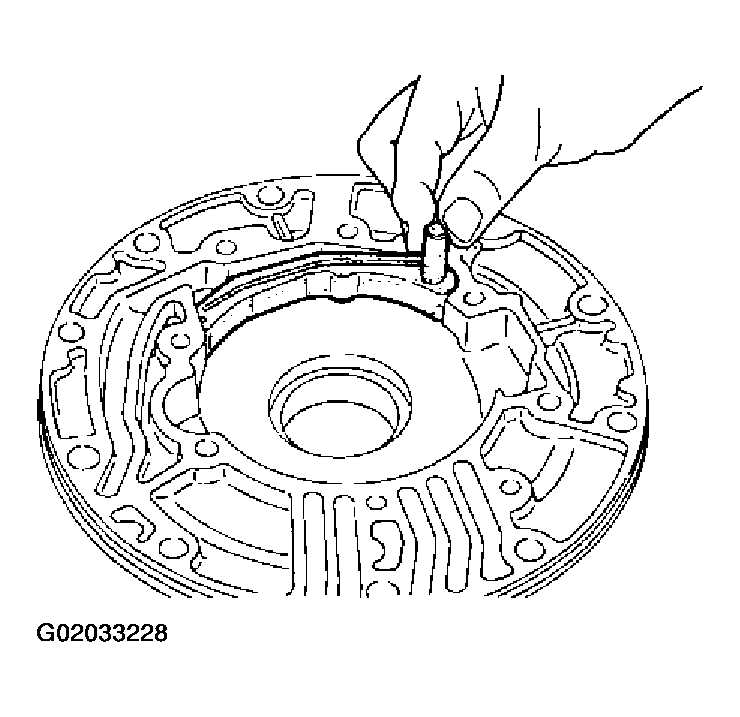

Remove pivot pin from control piston and remove control piston assembly.

Fig 6: Removing Pivot Pin From Control Piston And Removing Control Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

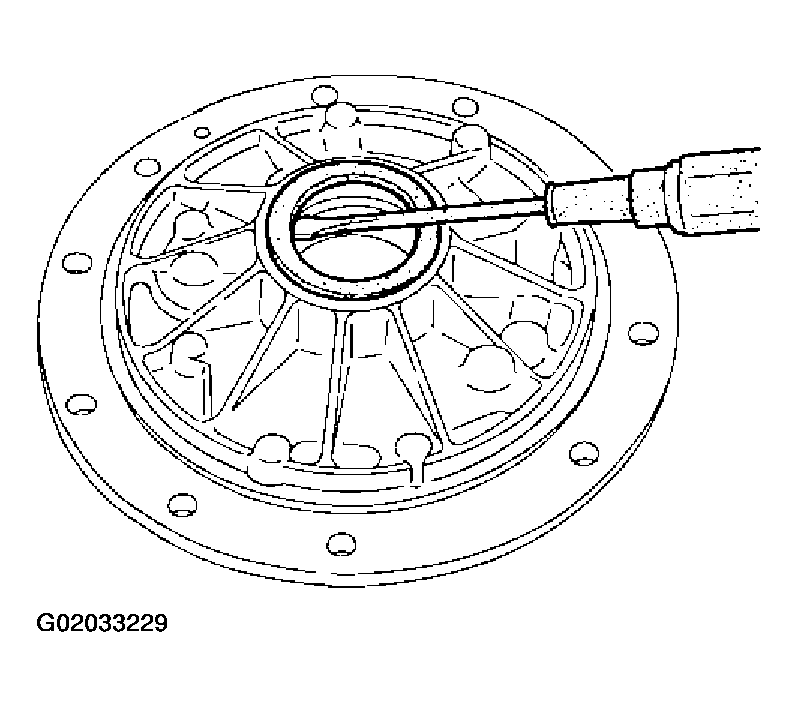

Remove oil seal from oil pump housing.
- Be careful not to scratch oil pump housing.

  Fig 7: Removing Oil Seal From Oil Pump Housing
  Courtesy of NISSAN MOTOR CO., U.S.A.
