Lock-up and select control system diagram

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

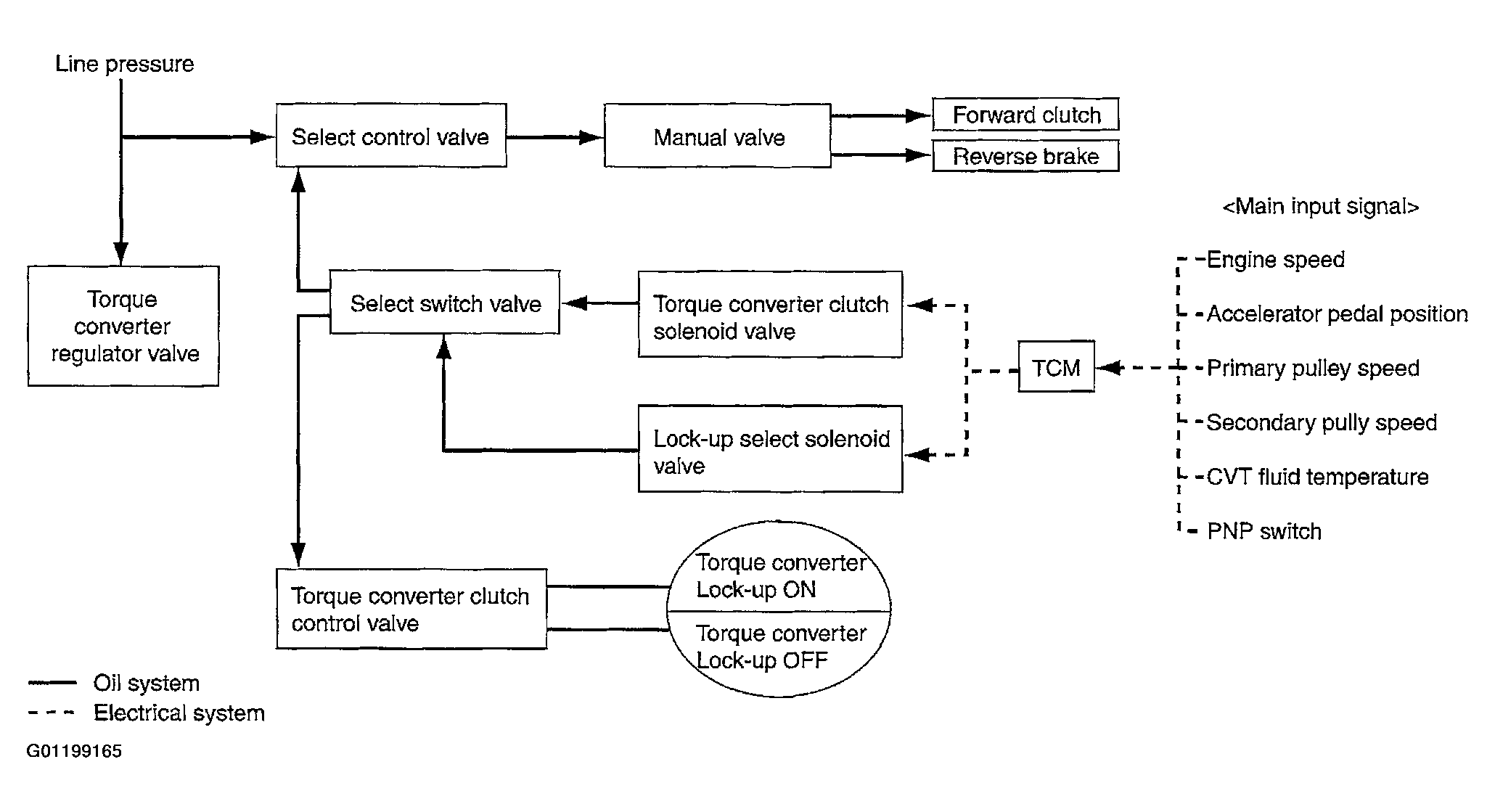

Fig 1: Lock-Up And Select Control System Diagram
G01199165Courtesy of NISSAN MOTOR CO., U.S.A.
