AWD System: Wiring Diagram

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

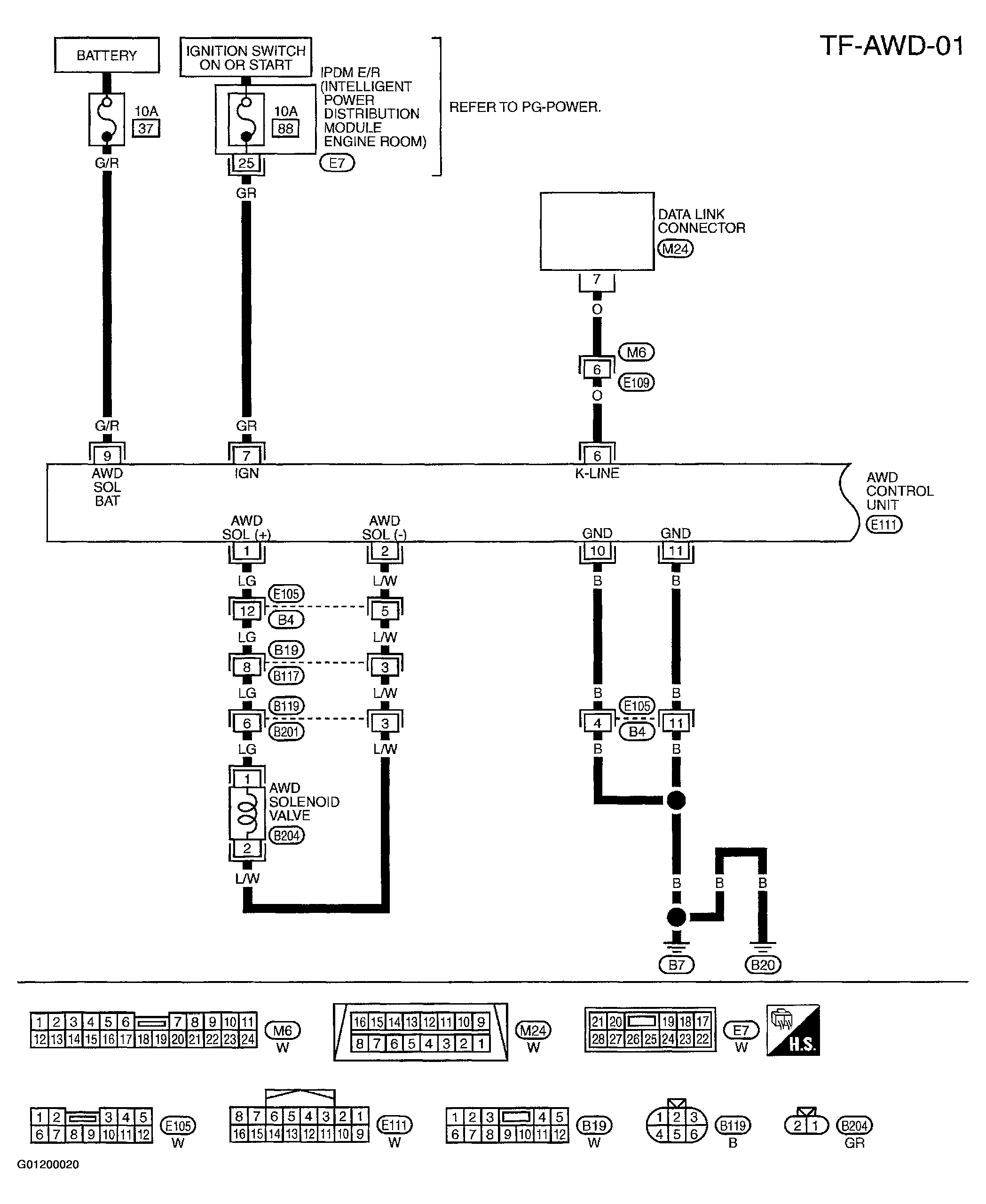

Fig 1: Displaying Wiring Diagram TF-AWD-01

Courtesy of NISSAN MOTOR CO., U.S.A.

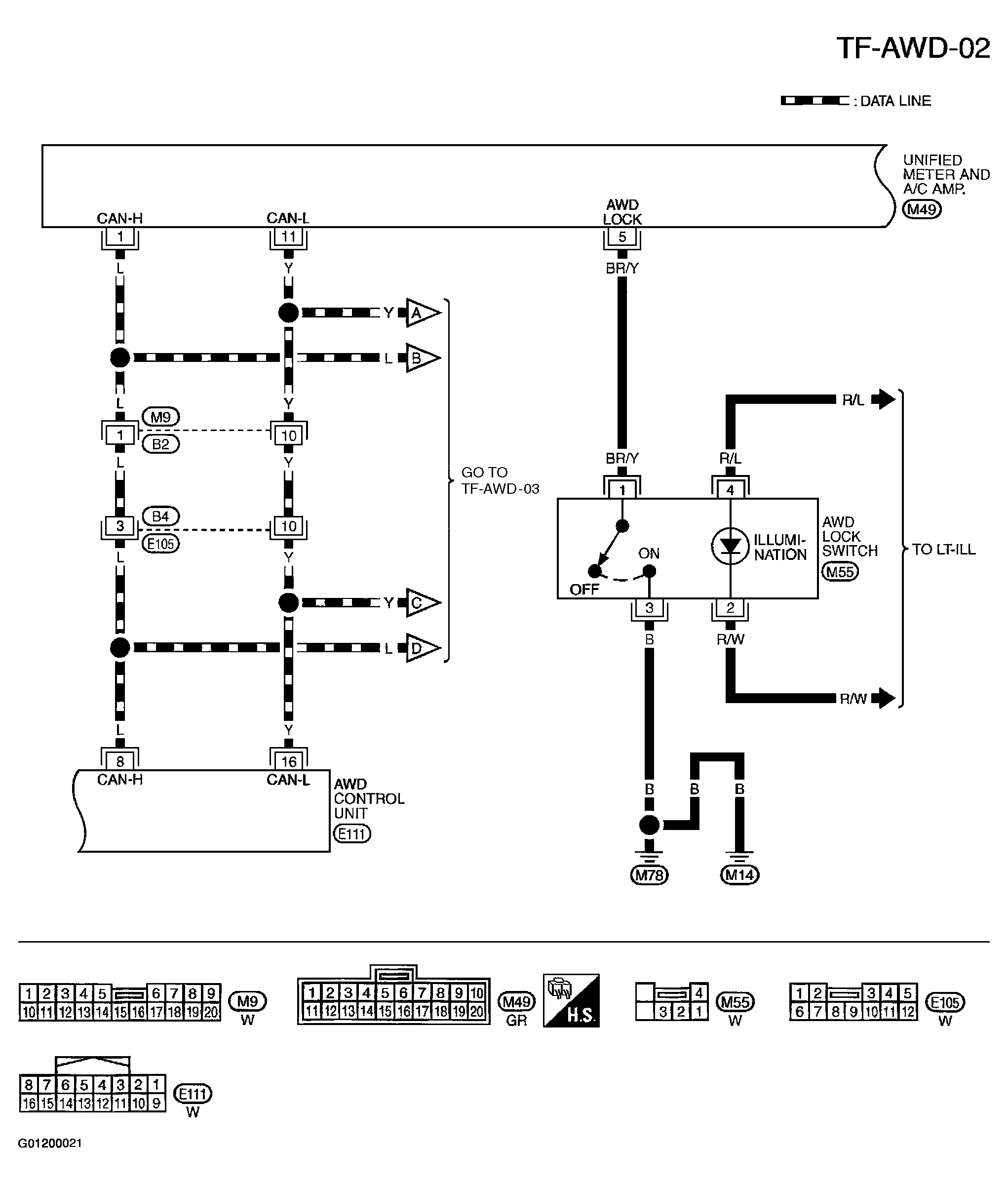

Fig 2: Displaying Wiring Diagram TF-AWD-02

Courtesy of NISSAN MOTOR CO., U.S.A.

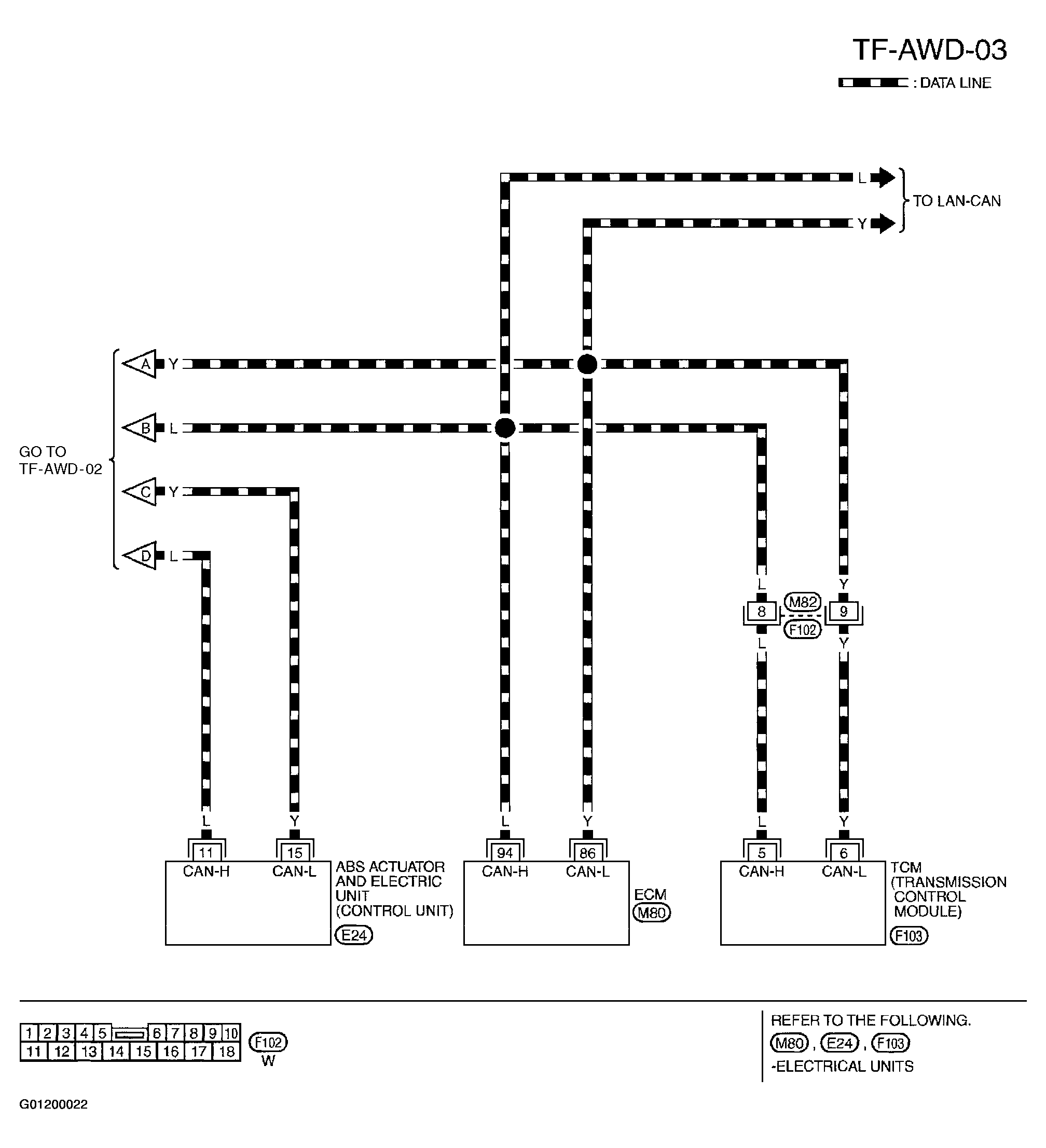

Fig 3: Displaying Wiring Diagram TF-AWD-03

Courtesy of NISSAN MOTOR CO., U.S.A.

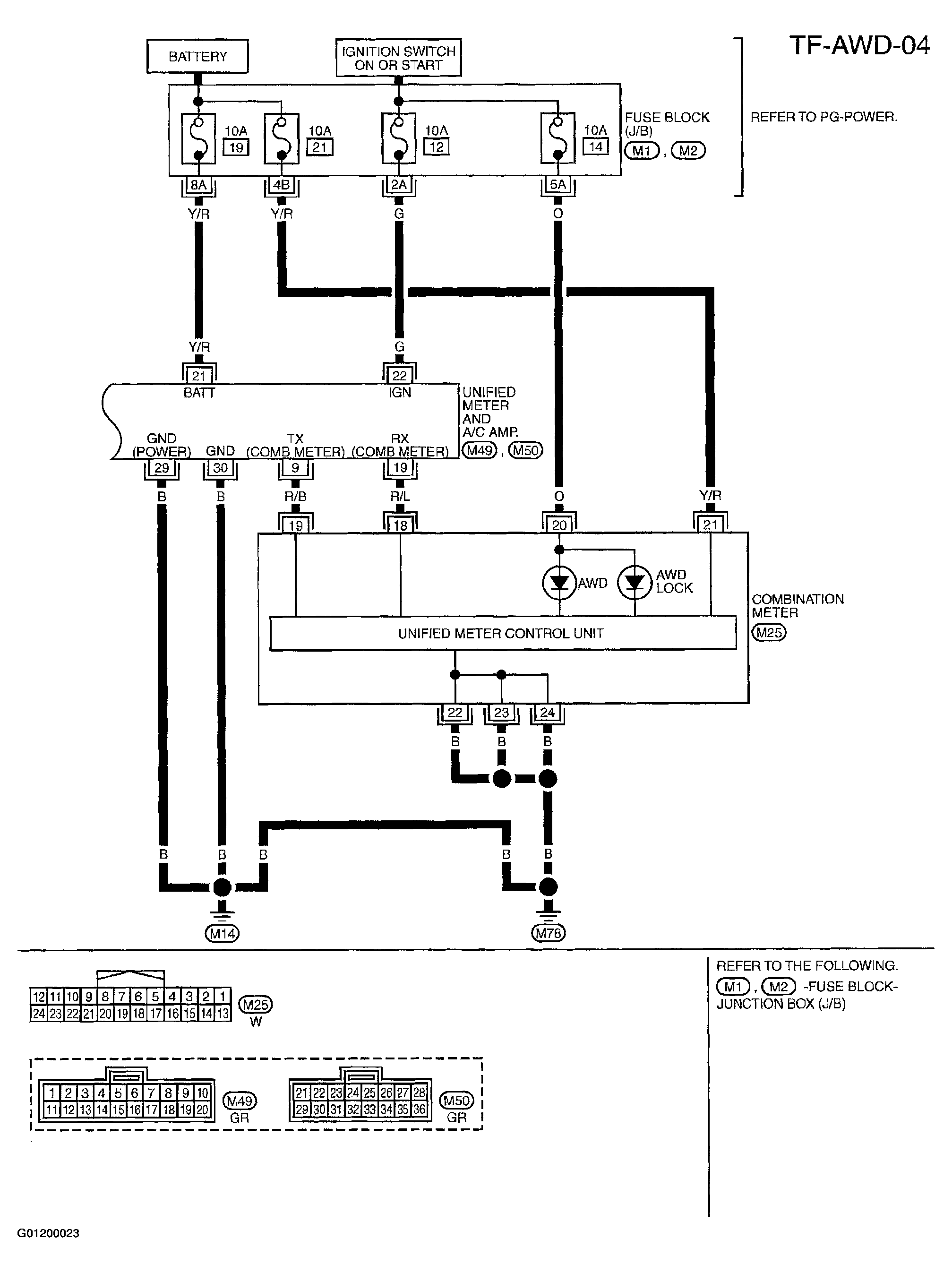

Fig 4: Displaying Wiring Diagram TF-AWD-04

Courtesy of NISSAN MOTOR CO., U.S.A.
