Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to CENTER CONSOLE ASSEMBLY .
  2. Disconnect harness connector.
  3. Remove installation nuts. Remove yaw rate/side/decel G-sensor.

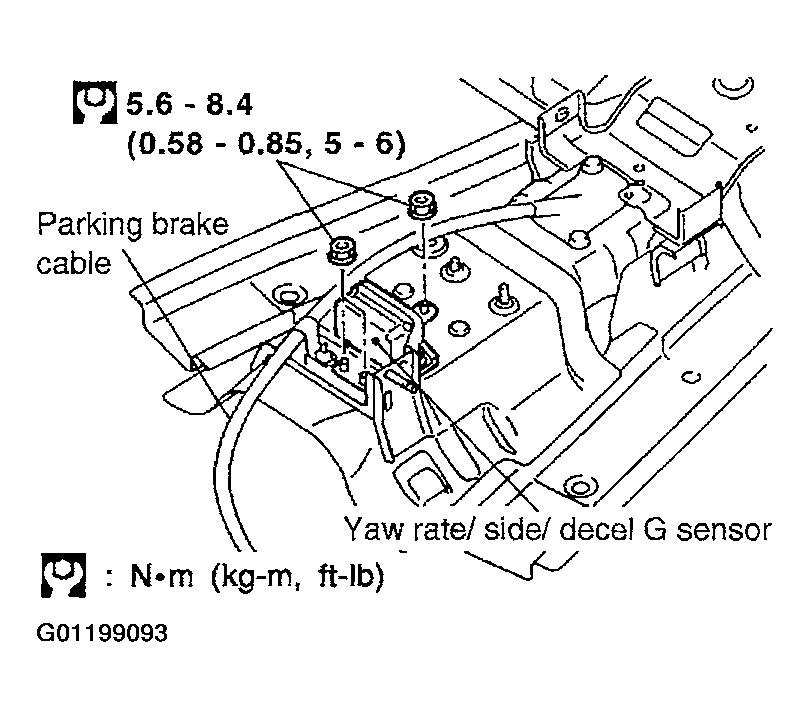

    Fig 1: Removing G Sensor
    G01199093Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not drop or strike the yaw rate/side/decel G-sensor, because it has little endurance to impact.
  • Do not use power tool etc., because Yaw rate/side/decel G sensor is weak for the impact.
