Switches & Control Function

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

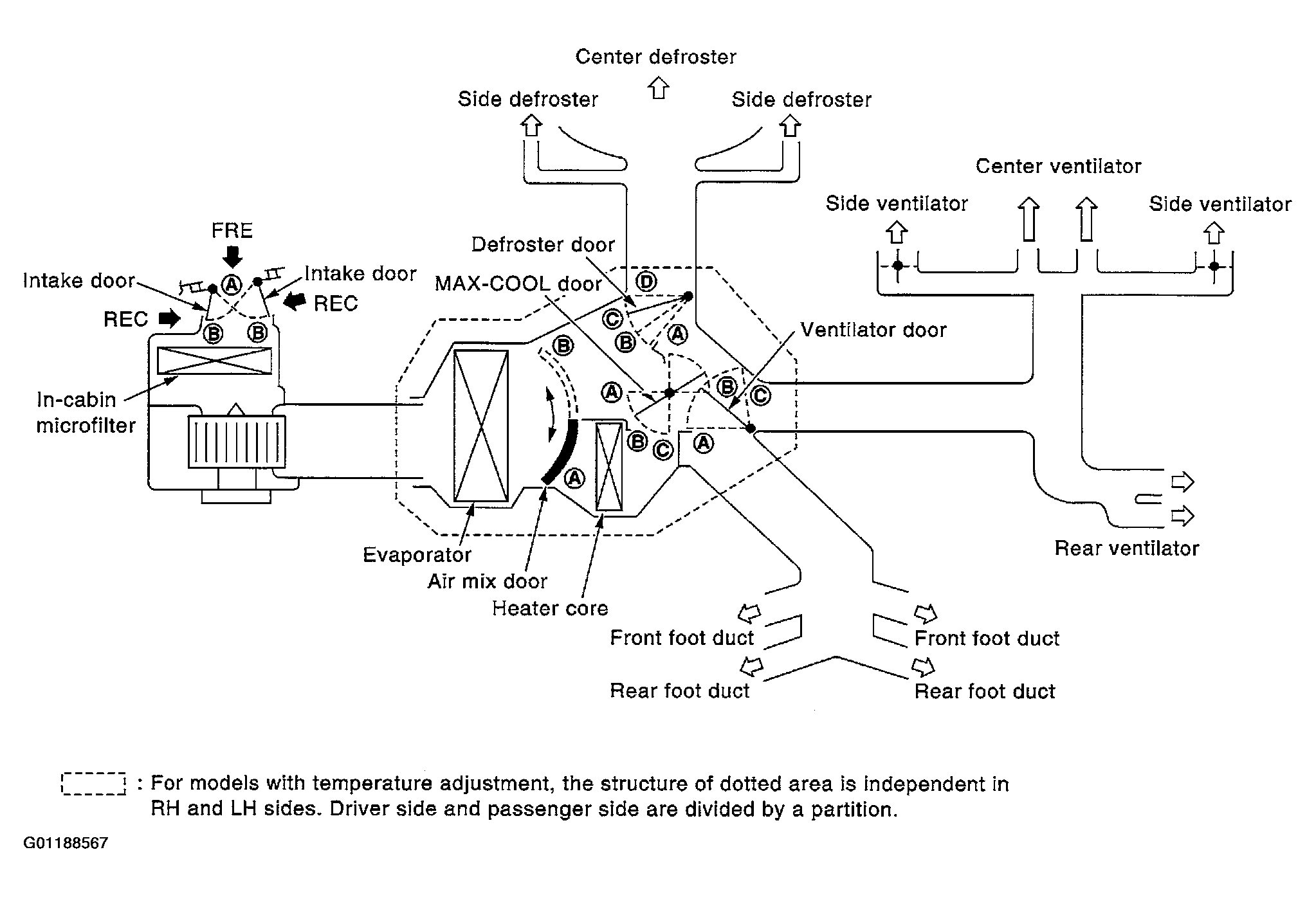

Fig 1: Identifying Air Conditioner Switches & Ventilation Air Flow

Courtesy of NISSAN MOTOR CO., U.S.A.

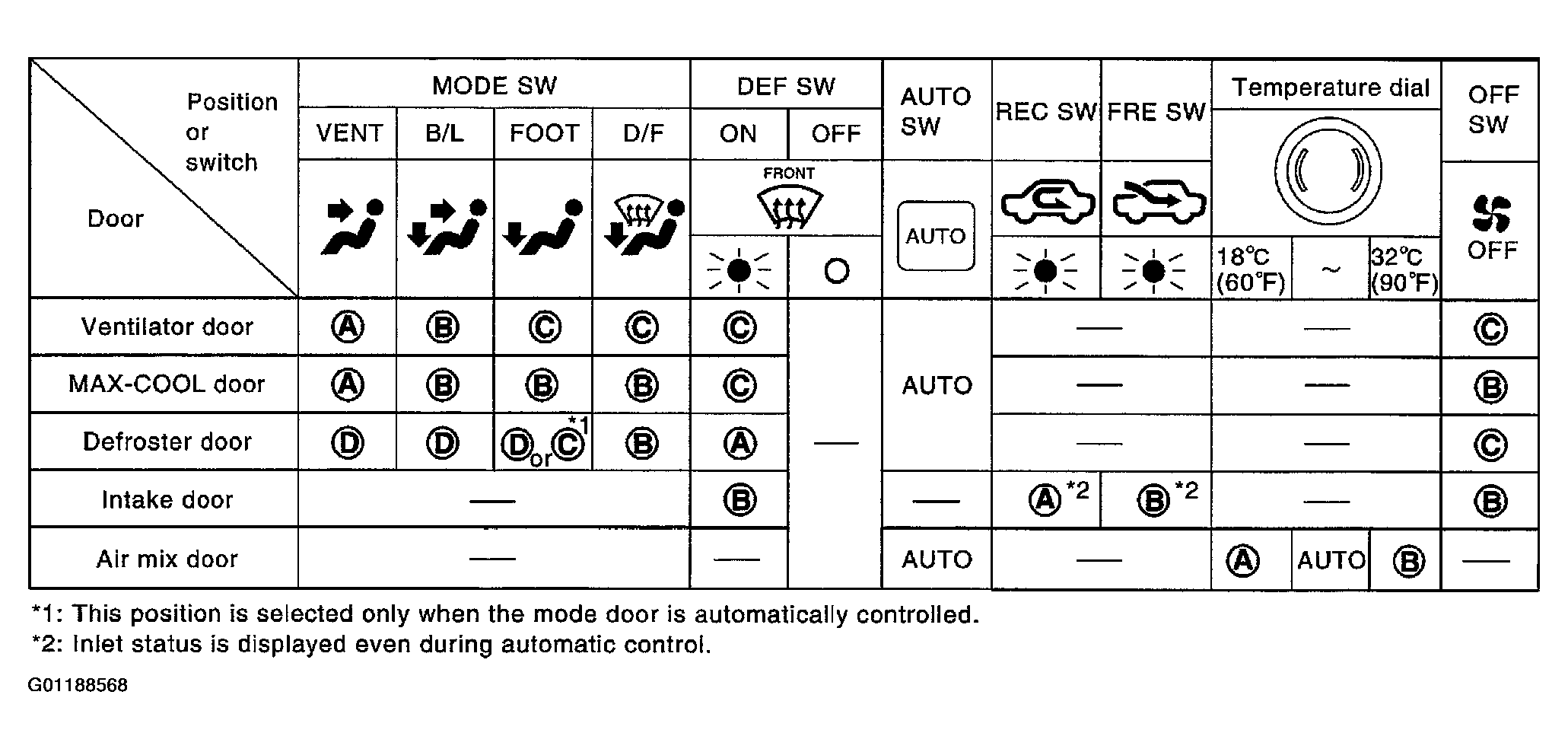

Fig 2: Identifying HVAC Switch Modes

Courtesy of NISSAN MOTOR CO., U.S.A.
