Functions Of Component Parts

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

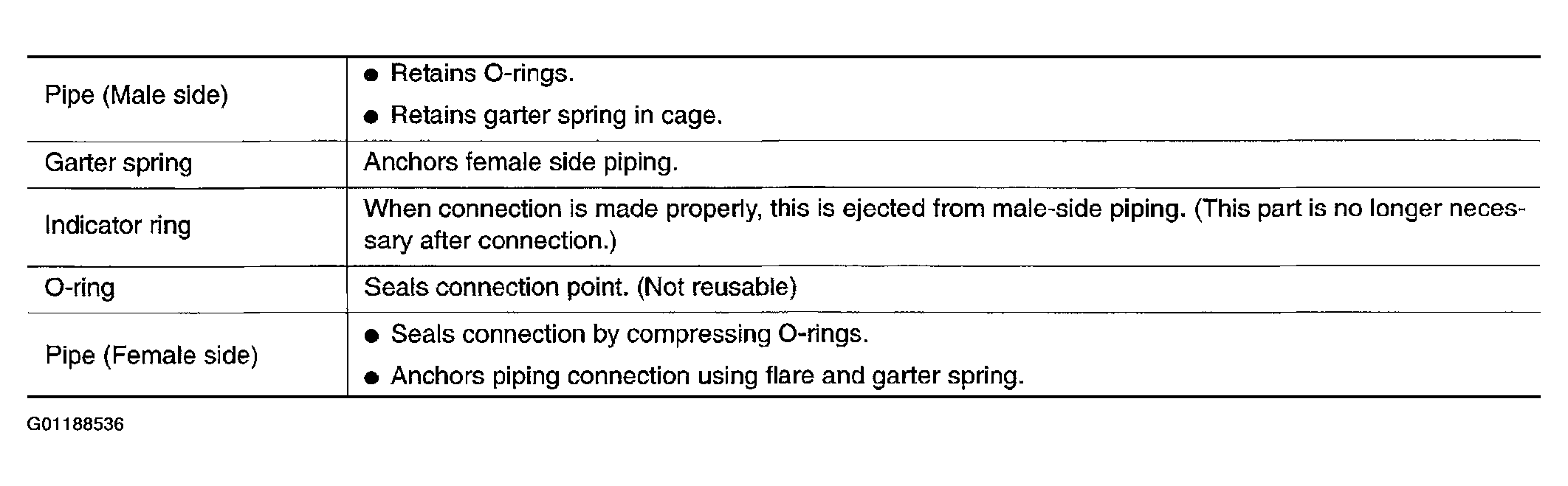

Fig 1: One-Touch Joint Component Function Chart

G01188536

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Garter spring cannot be removed from cage of male-side piping.
Indicator ring remains near piping connection point, however, this is not a malfunction. (This is to check piping connection during factory assembly.)
