Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WIPER" on "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
    Fig 1: Data Monitor Display Content Chart
    G01192502Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" selected, all the items will be monitored.
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

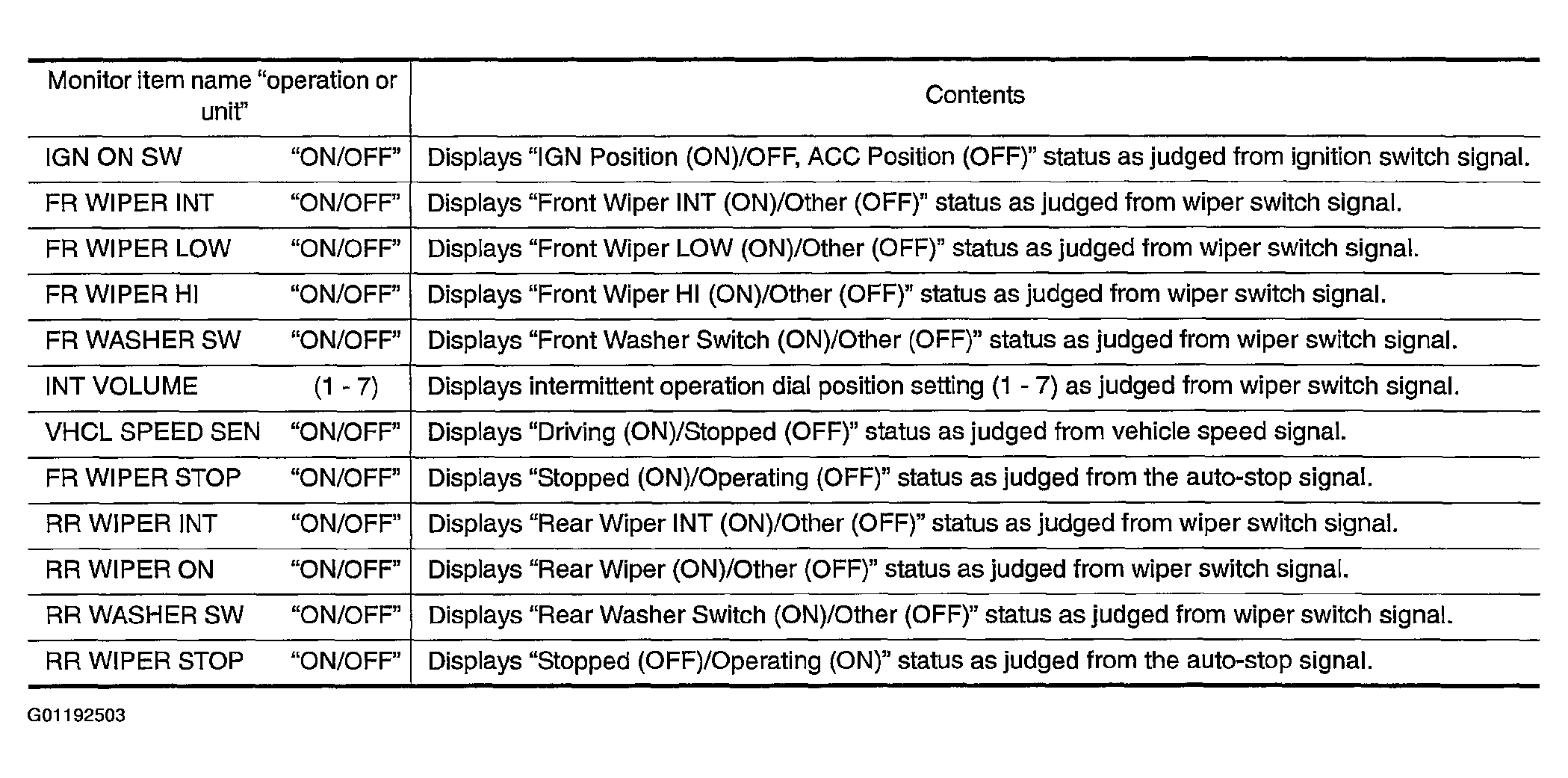

Fig 2: Display Item List (Data Monitor)
G01192503Courtesy of NISSAN MOTOR CO., U.S.A.
