Test Reading

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

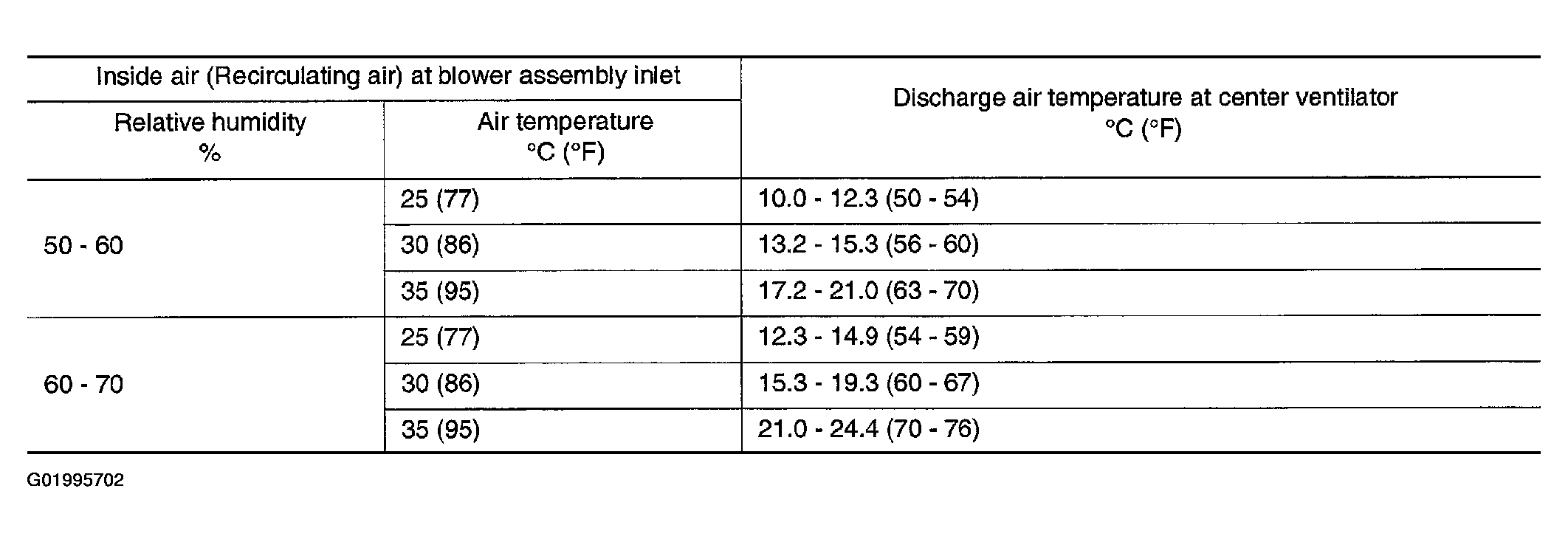

Recirculating-to-discharge Air Temperature Table

Fig 1: Recirculating-To-Discharge Air Temperature Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

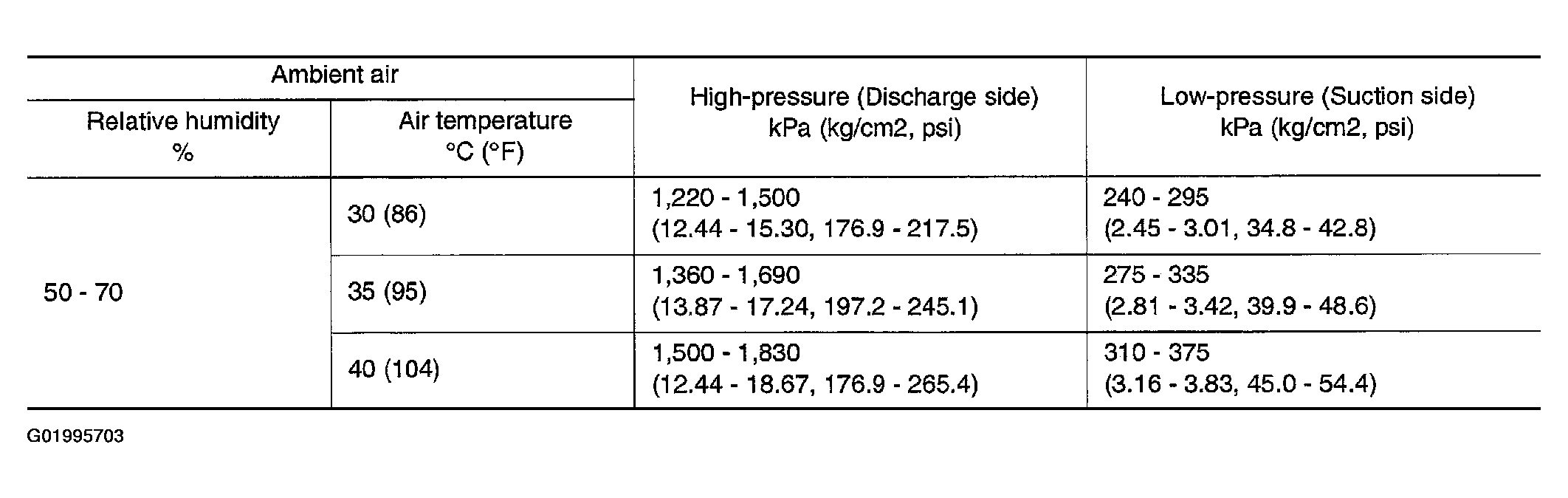

Ambient Air Temperature-to-operating Pressure Table

Fig 2: Ambient Air Temperature-To-Operating Pressure Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
