Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

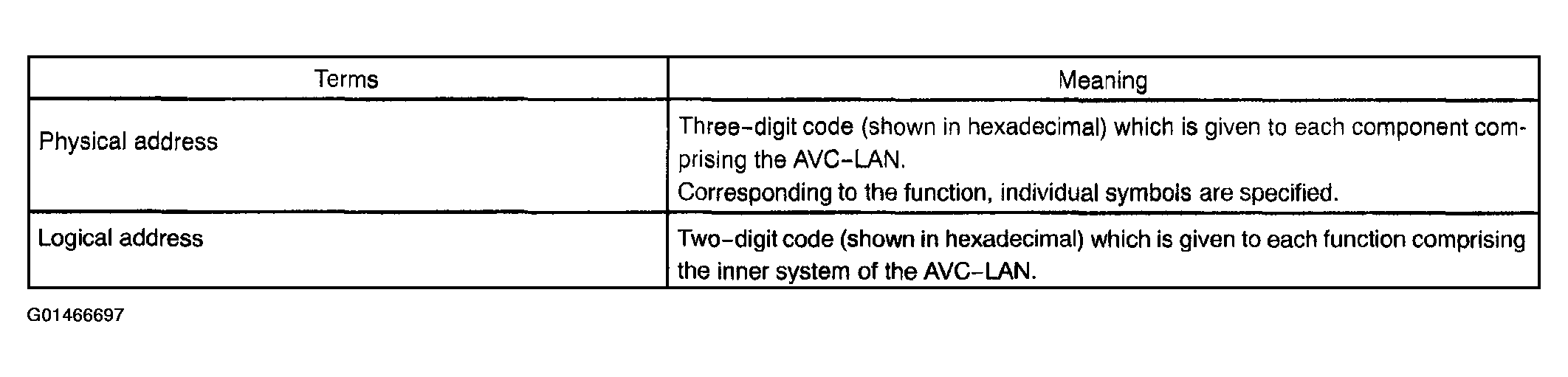

Fig 1: Identifying Diagnostic Trouble Code Chart
G01466697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. PIONEER MADE: RADIO RECEIVER ASSY (Physical address: 190)

    HINT:

    • *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
    • *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
    • *3: It may be stored when the engine key is turned 1 min. after engine start.
    • *4: It may be stored when the engine key is turned again after engine start.
    • *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
    1. Logical address: 01 (Communication control)

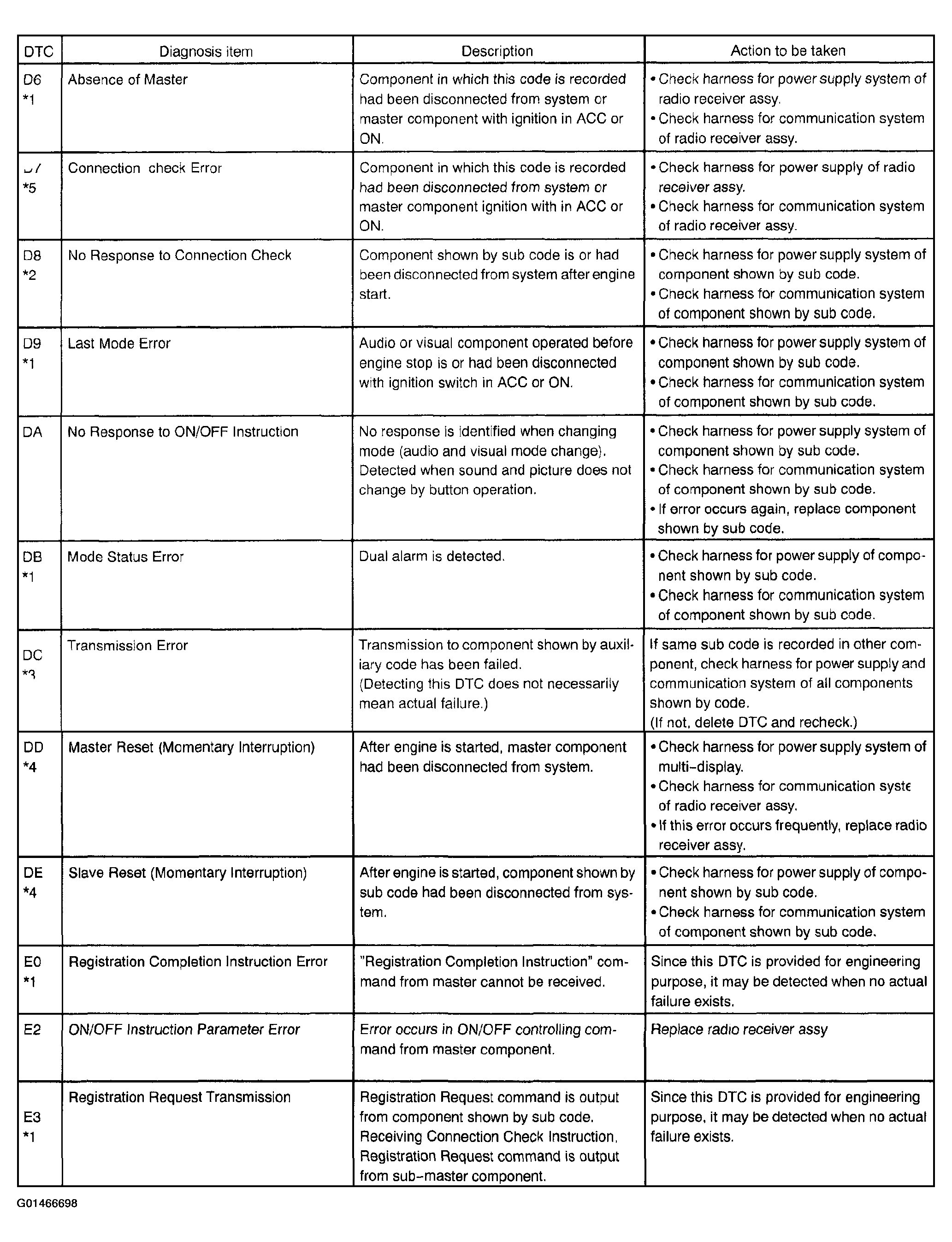

      Fig 2: Logical Address: 01 (Communication Control) Chart
      G01466698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Logical address: 61 (Cassette switch)

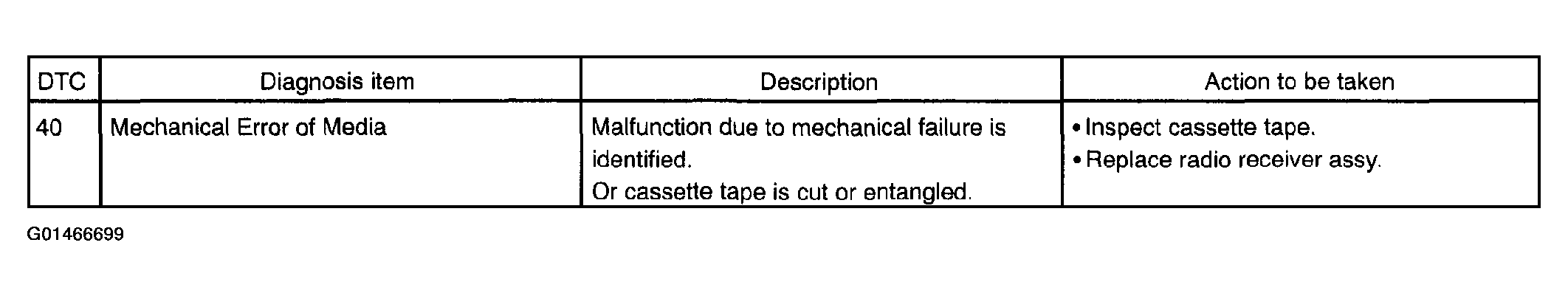

      Fig 3: Radio Receiver Assy Logical Address: 61 (Cassette Switch) Chart
      G01466699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Logical address: 62 (CD player)

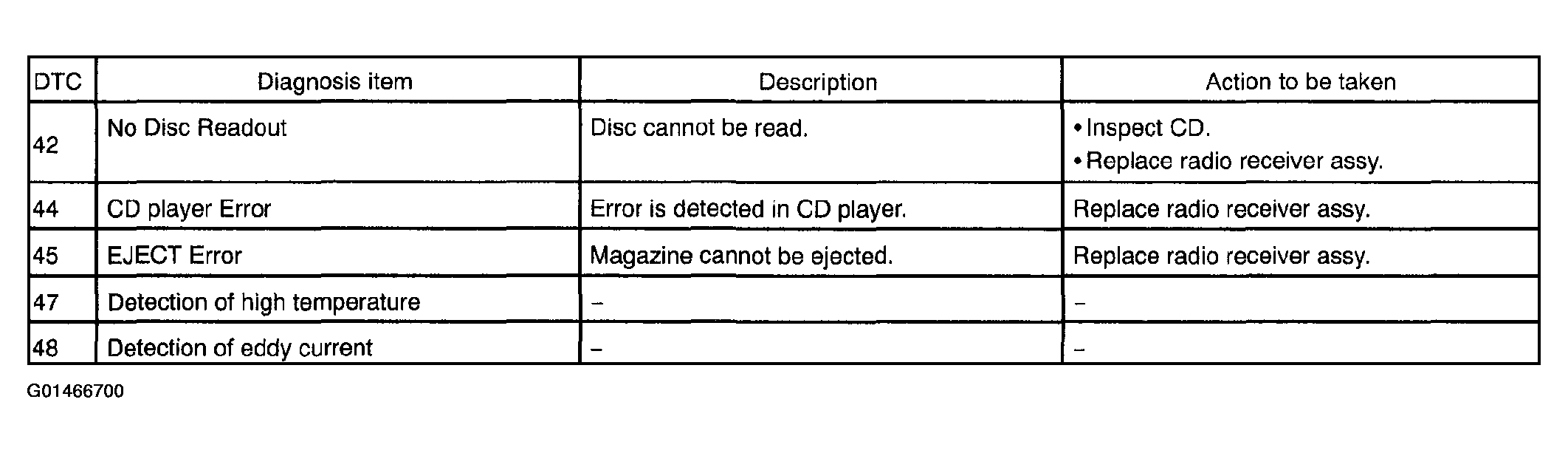

      Fig 4: Radio Receiver Assy Logical Address: 62 (CD Player) Chart
      G01466700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Logical address: 63 (In-dash CD changer)
    Fig 5: Radio Receiver Assy Logical Address: 63 (In-Dash CD Changer) Chart
    G01466701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PIONEER MADE: STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)

    HINT:

    • *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
    • *2: This code be stored when the engine key is turned again 1 min. after engine start.
    • *3: This code may be stored when the engine key is turned again after engine start.
    • *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

    Logical address: 01 (Communication control)

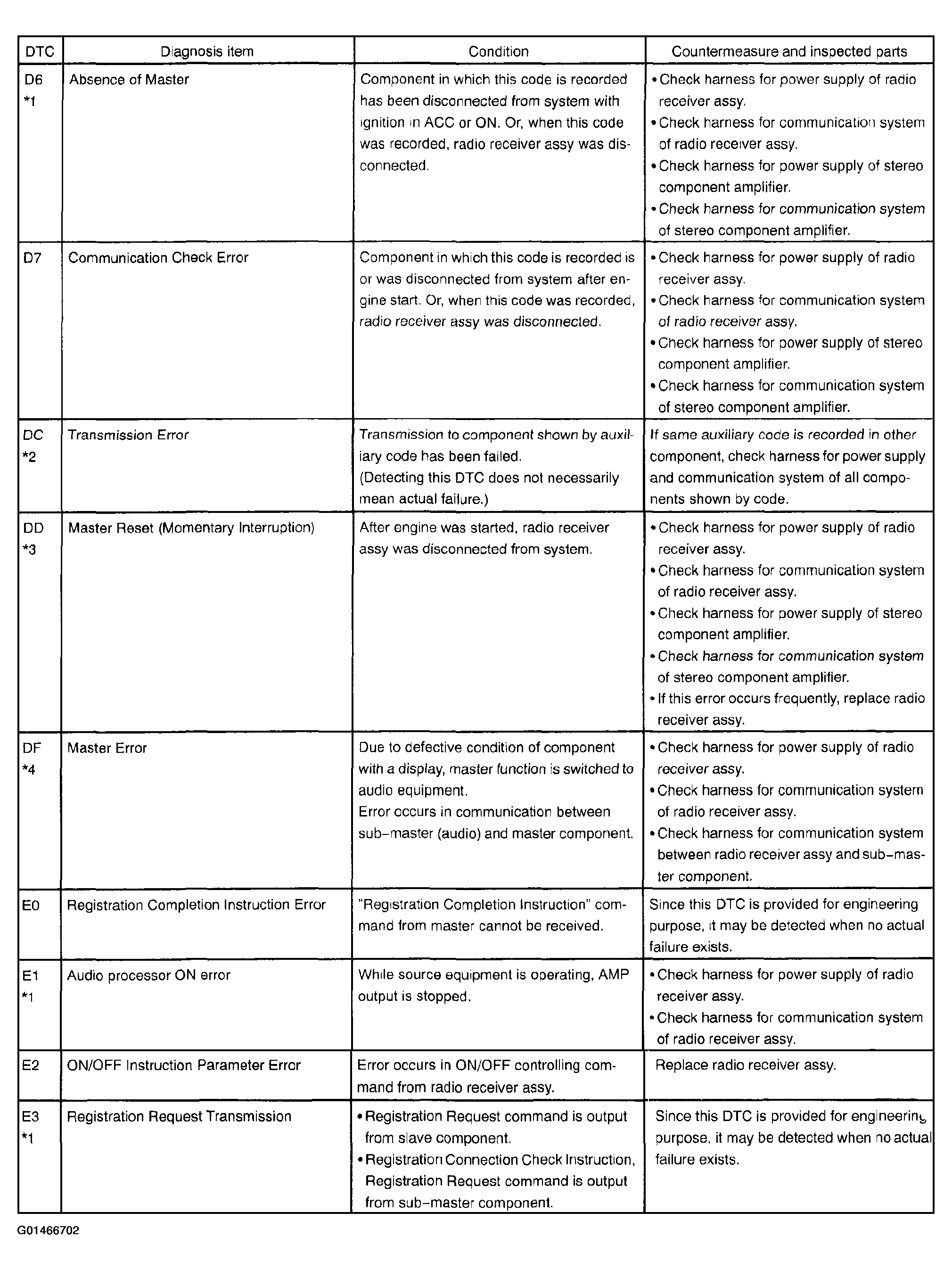

    Fig 6: Stereo Component Amplifier Assy Logical Address: 01 (Communication Control) Chart
    G01466702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. FUJITSU TEN MADE: RADIO RECEIVER ASSY (Physical address: 160)
    • If there is "O" in the column of system check, an error can be detected when the mode is switched to the system check mode.
    • If there is "O" in the column of diagnosis memory, each unit is monitoring whether or not it has failure. In case of detecting failure, it memorizes DTC.

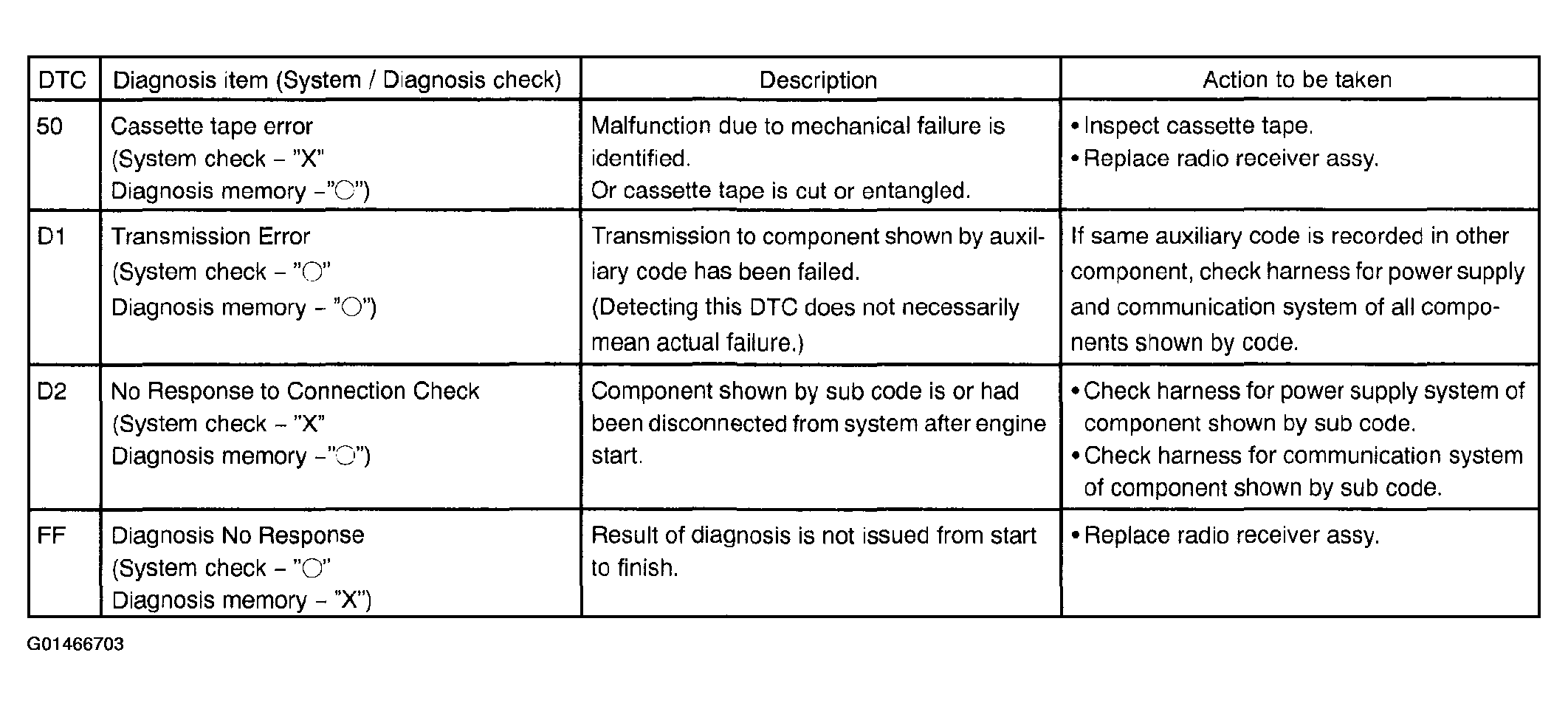

    Fig 7: Radio Receiver Assy Diagnosis Chart
    G01466703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FUJITSU TEN MADE: STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
    • If there is "O" in the column of system check, an error can be detected when the mode is switched to the system check mode.
    • If there is "O" in the column of diagnosis memory, each unit is monitoring whether or not it has failure. In case of detecting failure, it memorizes DTC.

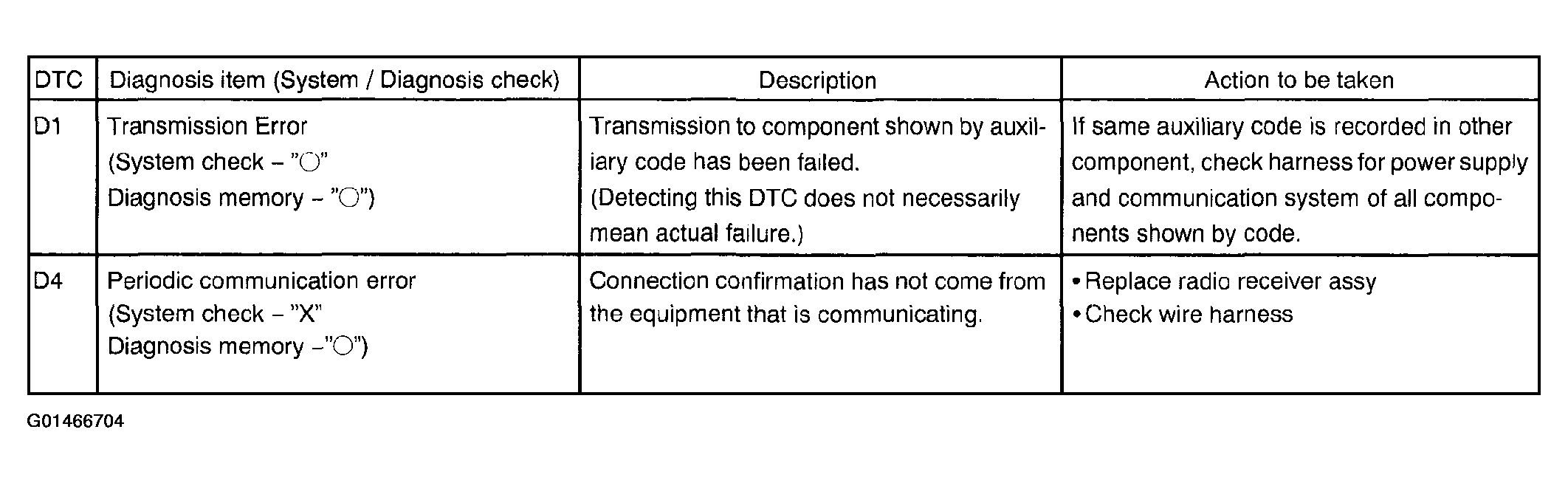

Fig 8: Stereo Component Amplifier Assy Diagnosis Chart
G01466704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
