Instrument Panel/Meter
›
Components
Instrument Panel/Meter: Components
WARNING:
This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

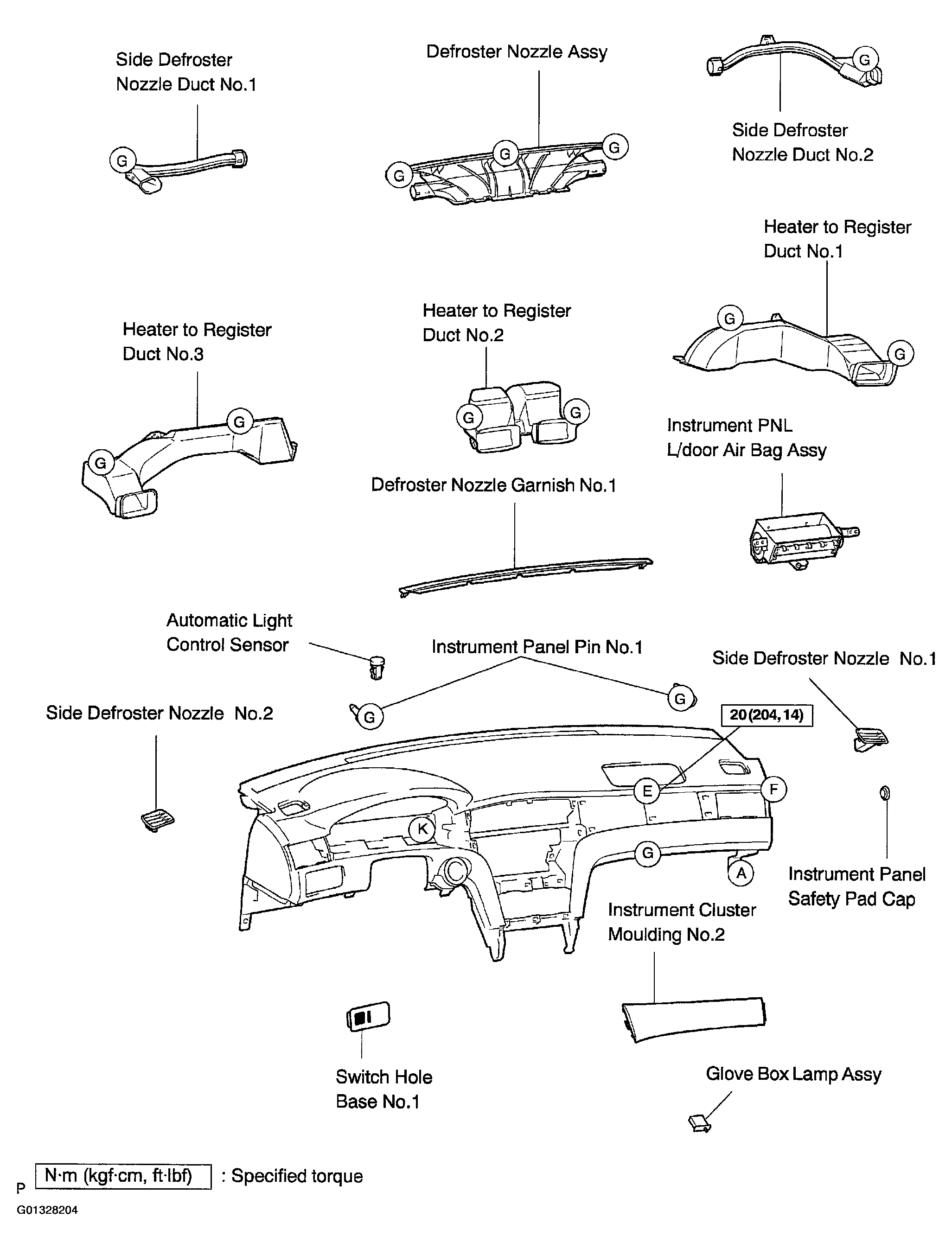

Fig 1: Identifying Instrument Panel/Meter Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

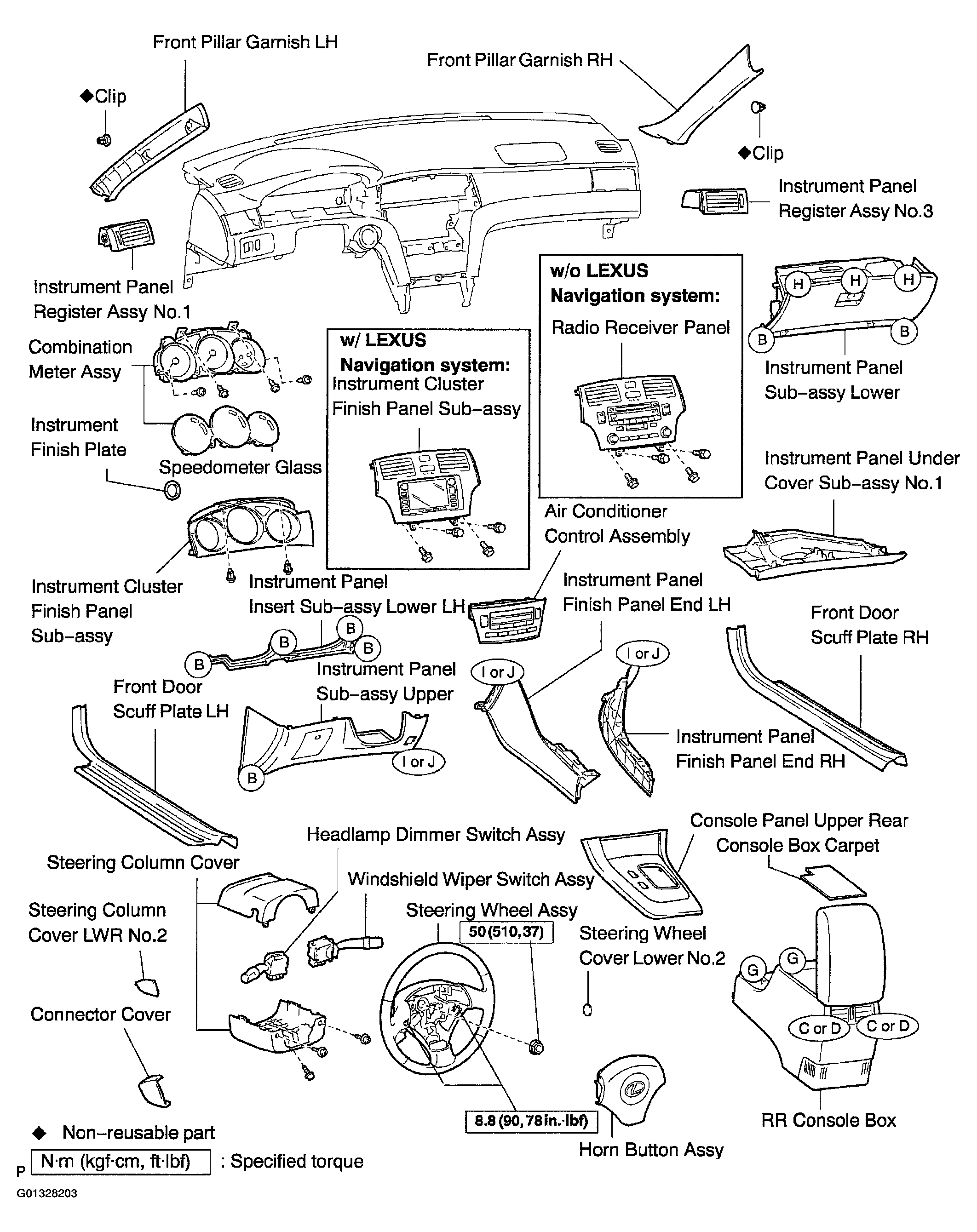

Fig 2: Identifying Instrument Panel/Meter Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
