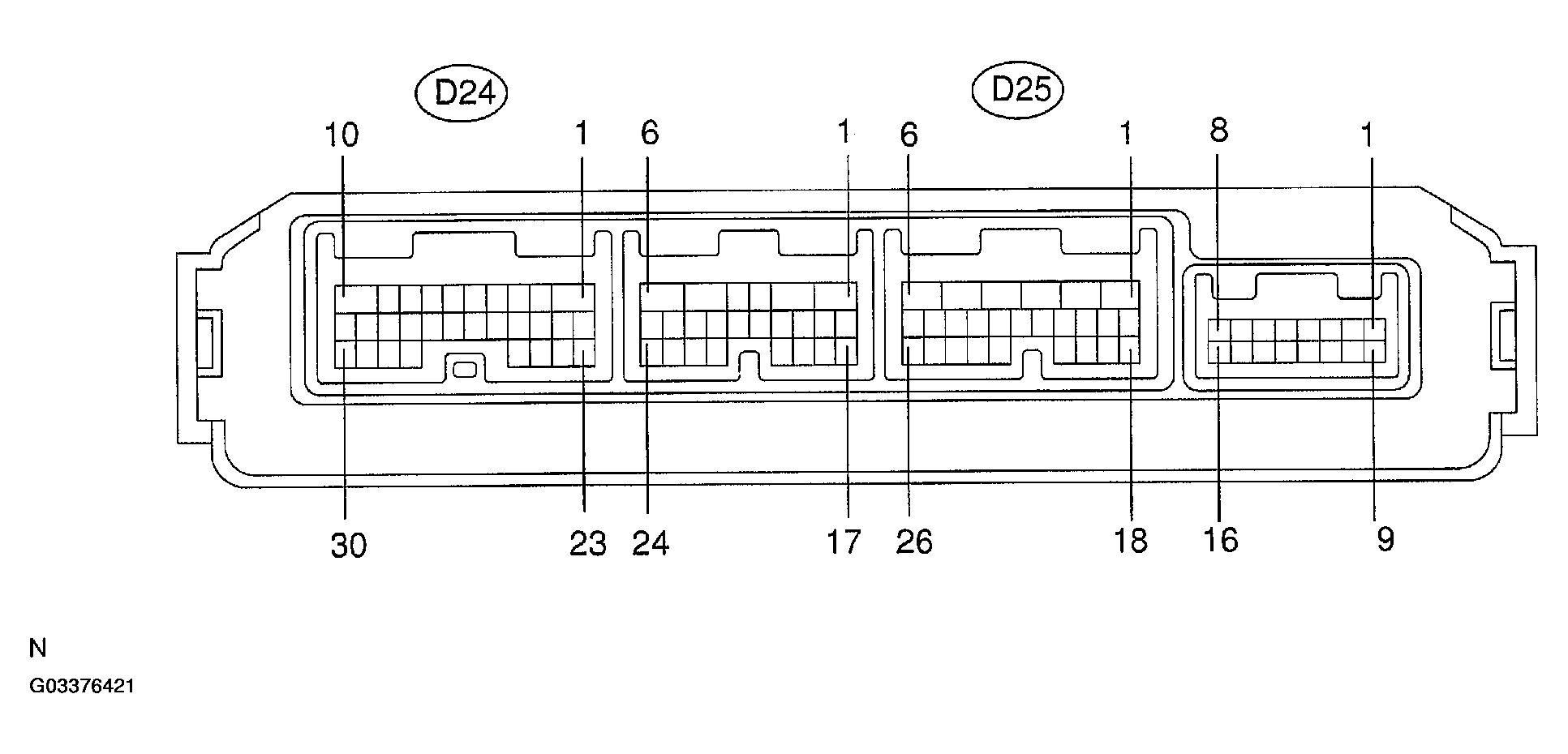

Fig 1: Identifying ECU Terminals
G03376421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRING COLOR CONDITION

Terminal No. (Symbols) Wiring Color Condition STD Voltage (V)
D25-1 - Body ground (GND - Body ground) W-B - Body ground Constantly Below 1 V
D25-2 - D25-1 (DN - GND) G - W-B Driver side power window is not operating Below 1 V
Driver side power window is moving downward 10 - 14 V
D25-3-D25-1 (UP - GND) R-G - W-B Driver side power window is not operating Below 1 V
Driver side power window is moving upward 10 -14 V
D25-4 - D25-1 (CPUB - GND) V-Y - W-B Constantly 10 - 14 V
D25-5 - D25-1 (SIG - GND) R-L - W-B Ignition switch ON 10 - 14 V
D25-6 - D25-1 (BDR - GND) R - W-B Constantly 10 - 14 V
D25-7 - D25-18 (ECI+ - ECI-) G-R - BR-B Electro chromic outer mirror system is operating 10 - 14 V
Electro chromic outer mirror system is not operating Below 1 V
D25-8 - D25-20(PLS - SGND) V-G - BR-W During the power window is in operation Pulse generation
Power window is not operated (pulse switch ON) Below 1 V
Power window is not operated (pulse switch OFF) 10 - 14 V
D25-16 - D24-22 (WLSW - PWS) Y - V-W Window lock switch OFF 10 - 14 V
Window lock switch ON Below 1 V
D25-17(MPX1) P-L Multiplex communication circuit -
D25-19 - D25-20 (LMT - SGND) B-W - BR-W Except window full-close position Below 1 V
Window full-close position 10 - 14 V
D25-20 - Body ground (SGND - Body ground) BR-W - Body ground Constantly Below 1 V
D25-23 - D25-1 (CTY - GND) P-G - W-B Driver door courtesy switch ON (Door open) Below 1 V
Driver door courtesy switch OFF (Door closed) 10 - 14 V
D25-24 - D25-15 (CTYB - CYL) L-Y - G Driver door courtesy switch OFF (Door closed) Below 1 V
Driver door courtesy switch ON (Door open) 10 - 14 V
D25-25 - D25-1 (WLS1 - GND) Y-B - W-B Window lock switch OFF 10 - 14 V
Window lock switch ON Below 1 V
D25-26 (MPX2) P-L Multiplex communication circuit - -
D24-2 - D24-30 (AUTO - PWE) W-G - BR-R Driver power window switch OFF 10 - 14 V
Driver power window switch AUTO 10 - 14 V
D24-3 - D24-26 (DSUP - DSE) L-W - L-0 Shoulder belt adjust switch OFF Below 1 V
Shoulder belt adjust switch UP 10 - 14 V
D24-7 - D24-18 (LED+ - LED-) L-Y Inside handle illumination goes OFF Pulse generation
Inside handle illumination goes ON 3-6 V
D24-8 - D25-1 (ML - GND)   W - W-B Door lock manual switch OFF 10 - 14 V
Door lock manual switch LOCK Below 1 V
D24-9 - D24-28 (M3 - MSWE) P-L - BR-W Memory 3 position switch OFF 10 - 14 V
Memory 3 position switch ON Below 1 V
D24-14 - D24-26 (DSDN - DSE)   L-Y - L-0 Shoulder belt adjust switch OFF 10 - 14 V
Shoulder belt adjust switch DOWN Below 1 V
D24-15-D24-4 (SC3 - DT3) R-W - G-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch AUTO (except Driver side switch) Below 1 V
D24-15 - D24-5 (SC3 - DT2) R-W - L-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch AUTO (except Driver side switch) Below 1 V
D24-15 - D24-6 (SC3 - DT1) R-W - G-R Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch AUTO (except Driver side switch) Below 1 V
D24-16 - D24-4 (SC2 - DT3) Y-R - G-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch UP (except Driver side switch) Below 1 V
D24-16 - D24-5 (SC2 - DT2) Y-R - L-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch UP (except Driver side switch) Below 1 V
D24-16 - D24-6 (SC2 - DT1) Y-R - G-R Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch UP (except Driver side switch) Below 1 V
D24-17 - D24-4 (SC1 - DT3) L-R - G-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch DOWN (except Driver side switch) Below 1 V
D24-17 - D24-5 (SC1 - DT2) L-R - L-B Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch DOWN (except Driver side switch) Below 1 V
D24-17 - D24-6 (SC1 - DT1) L-R - G-R Power window switch OFF (except Driver side switch) 10 - 14 V
Power window switch DOWN (except Driver side switch) Below 1 V
D24-19 - D25-1 (MUL - GND) W-R - W-B Door lock manual switch OFF 10 - 14 V
Door lock manual switch UNLOCK Below 1 V
D24-20 - D24-28 (M2 - MSWE) P-B - BR-W Memory 2 position switch OFF 10 - 14 V
Memory 2 position switch ON Below 1 V
D24-21 - D24-28 (M1 - MSWE) P - BR-W Memory 1 position switch OFF 10 - 14 V
Memory 1 position switch ON Below 1 V
D24-23 - D24-30 (MUP - PWE) Y-B - BR-R Driver power window switch OFF 10 - 14 V
Driver power window switch UP Below 1 V
D24-25 - D24-30 (MDN - PWE) G - BR-R Driver power window switch OFF 10 - 14 V
Driver power window switch DOWN Below 1 V
D24-29 - D24-28 (MM - MSWE) GR - BR-W Memory SET switch OFF 10 - 14 V
Memory SET switch ON Below 1 V
1 - D25-1 (A+ - GND) -W-B Driver door lock is operating to UNLOCK 10 - 14 V
Driver door lock is operating to LOCK Below 1 V
2 - D25-1 (A+ - GND) - W-B Driver door lock is operating to LOCK 10 - 14 V
Driver door lock is operating to UNLOCK Below 1 V
4 - 21. (CPS3 - KEYE) - See "DTCB2211 -
5 - D25-1 (A1 - GND) - W-B Driver door closer is not operating Below 1 V
Driver door closer is operating 10 - 14 V
6 - D25-1 (A1+ - GND) - W-B Driver door closer is not operating Below 1 V
Driver door closer is operating 10 - 14 V
9 - 21 (KUL - KEYE) - Door key lock and unlock switch OFF 10 - 14 V
Door key lock and unlock switch UNLOCK Below 1 V
10 - 21 (KL - KEYE) - Door key lock and unlock switch LOCK Below 1 V
Door key lock and unlock switch OFF 10 - 14 V
14 - 21 (CPS2-KEYE) - See "DTCB2211" -
16-21 (CPS1 - KEYE) - See "DTCB2211" -
1 - D25-1 (#MVR-GND) - W-B Driver outside view mirror is not operating Below 1 V
Driver outside view mirror is operating to DOWN or LEFT Below 1 V
Driver outside view mirror is operating to UP or RIGHT 10 - 14 V
2 - 12 (LP - HTR-) - Driver outside view mirror step light lights up (Door unlocked) 10 - 14 V
Driver outside view mirror step light does not lights up (Door locked) Below 1 V
3 - 11 (MR+ - MR-) - Driver outside view mirror retract system is not operating Below 1 V
Driver outside view mirror retract system is RETRACT operating 10 - 14 V
4 - 12 (HTR+ - HTR-) - Outer mirror defogger switch ON 10 - 14 V
Outer mirror defogger switch OFF Below 1 V
5 - 14 (#VC - #E2) - Ignition switch OFF Below 1 V
Ignition switch ON 10 - 14 V
6 - 14 (VSSR - #E2) - Vertical direction of mirror position sensor circuit -
7 - 15 (EC+ - EC-) - Electro chromic outer mirror system is operating 10 - 14 V
Electro chromic outer mirror system is not operating Below 1 V
9 - D25-1 (#MHR-GND) - W-B Driver outside view mirror is not operating Below 1 V
Driver outside view mirror is operating to UP or RIGHT Below 1 V
Driver outside view mirror is operating to LEFT or DOWN 10 - 14 V
10 - D25-1 (#M+R - GND) - W-B Driver outside view mirror is not operating Below 1 V
Driver outside view mirror is operating to UP or LEFT Below 1 V
Driver outside view mirror is operating to DOWN or RIGHT 10 - 14 V
13 - 14 (HSSR - #E2) - Horizontal direction of mirror position sensor circuit -
