Overheating Cause Analysis

WARNING: This page is about a different variant/trim than selected.

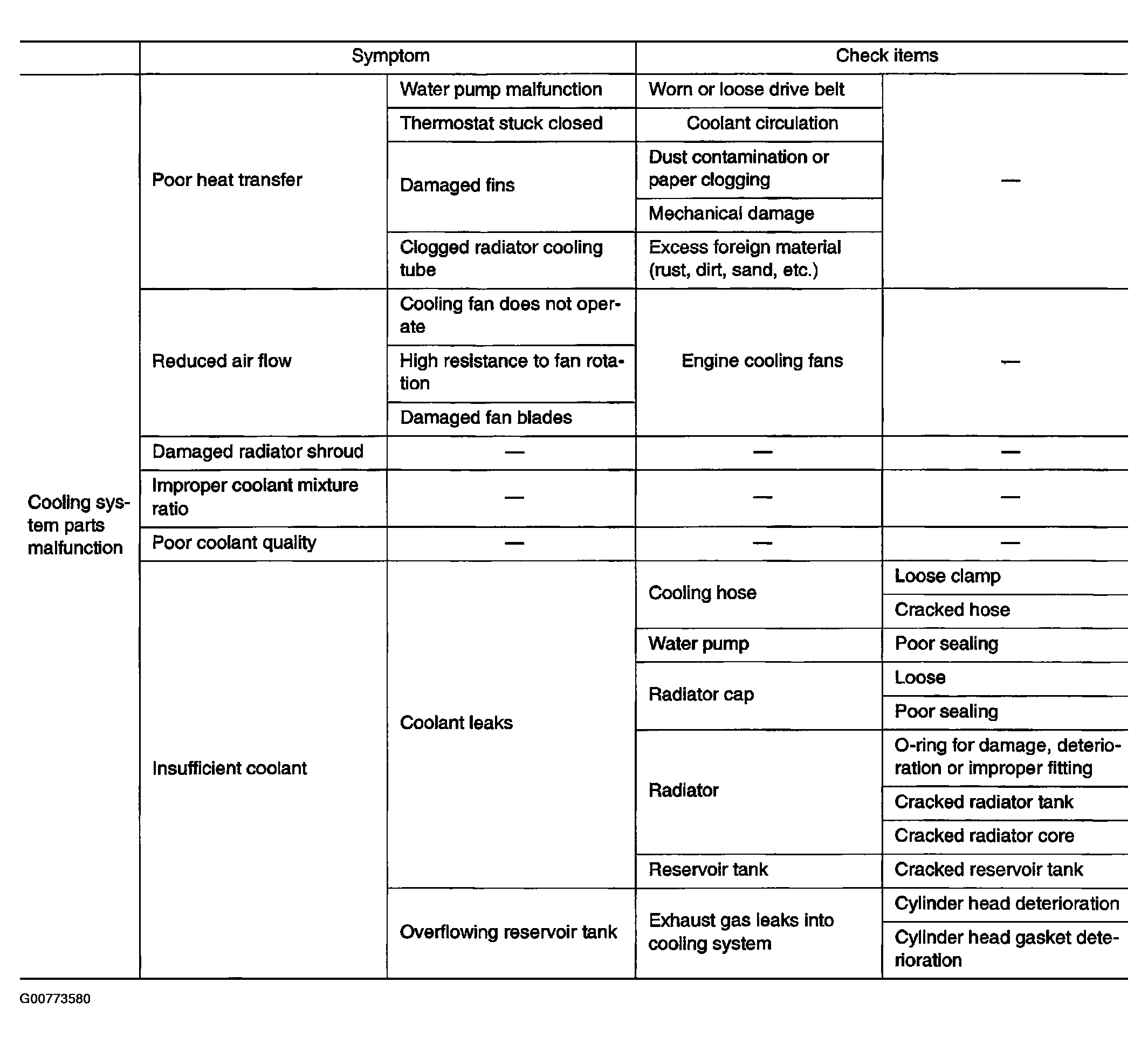

Fig 1: Overheating Cause Analysis Chart (1 Of 2)

G00773580

Courtesy of NISSAN MOTOR CO., U.S.A.

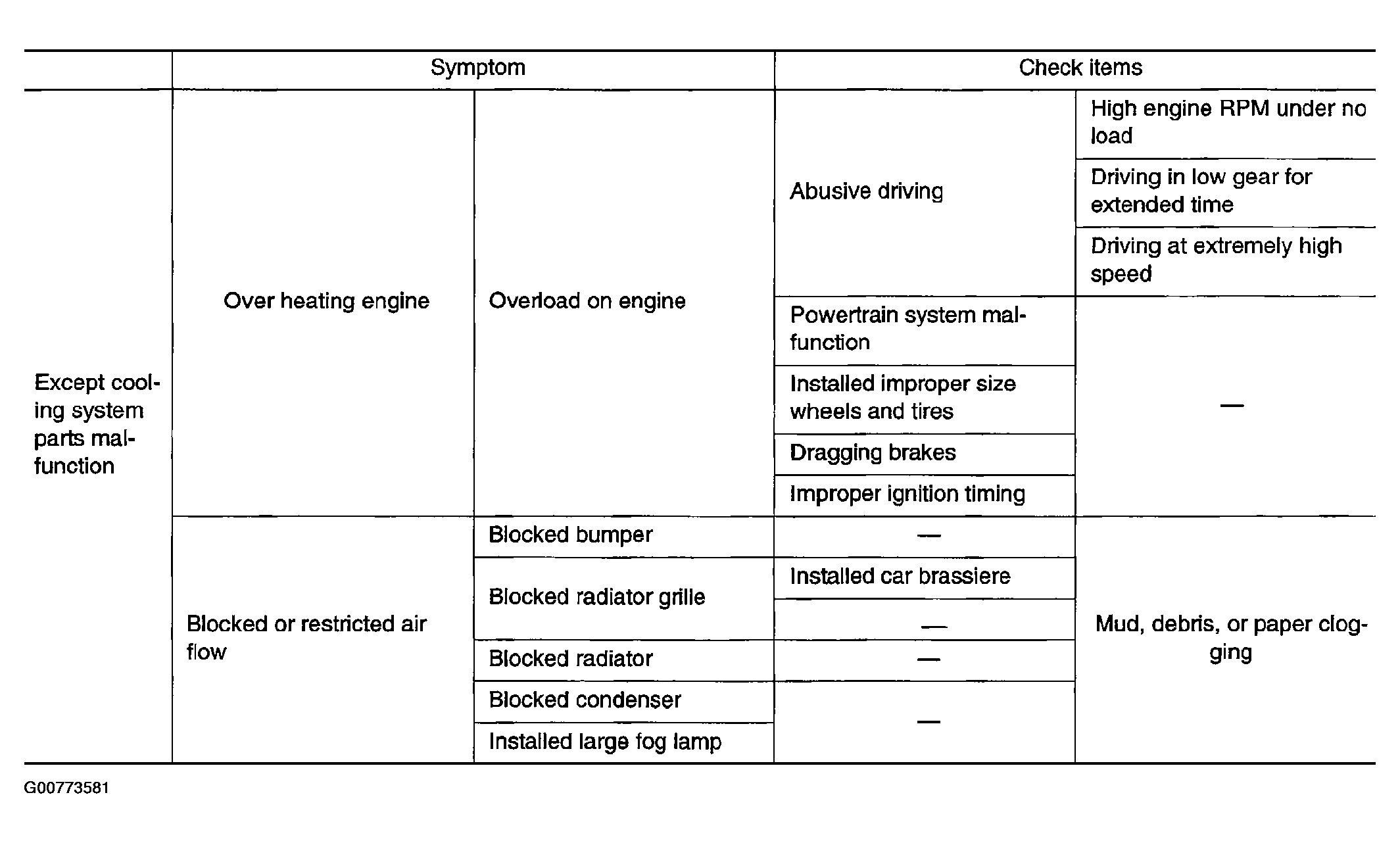

Fig 2: Overheating Cause Analysis Chart (2 Of 2)

G00773581

Courtesy of NISSAN MOTOR CO., U.S.A.
