Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

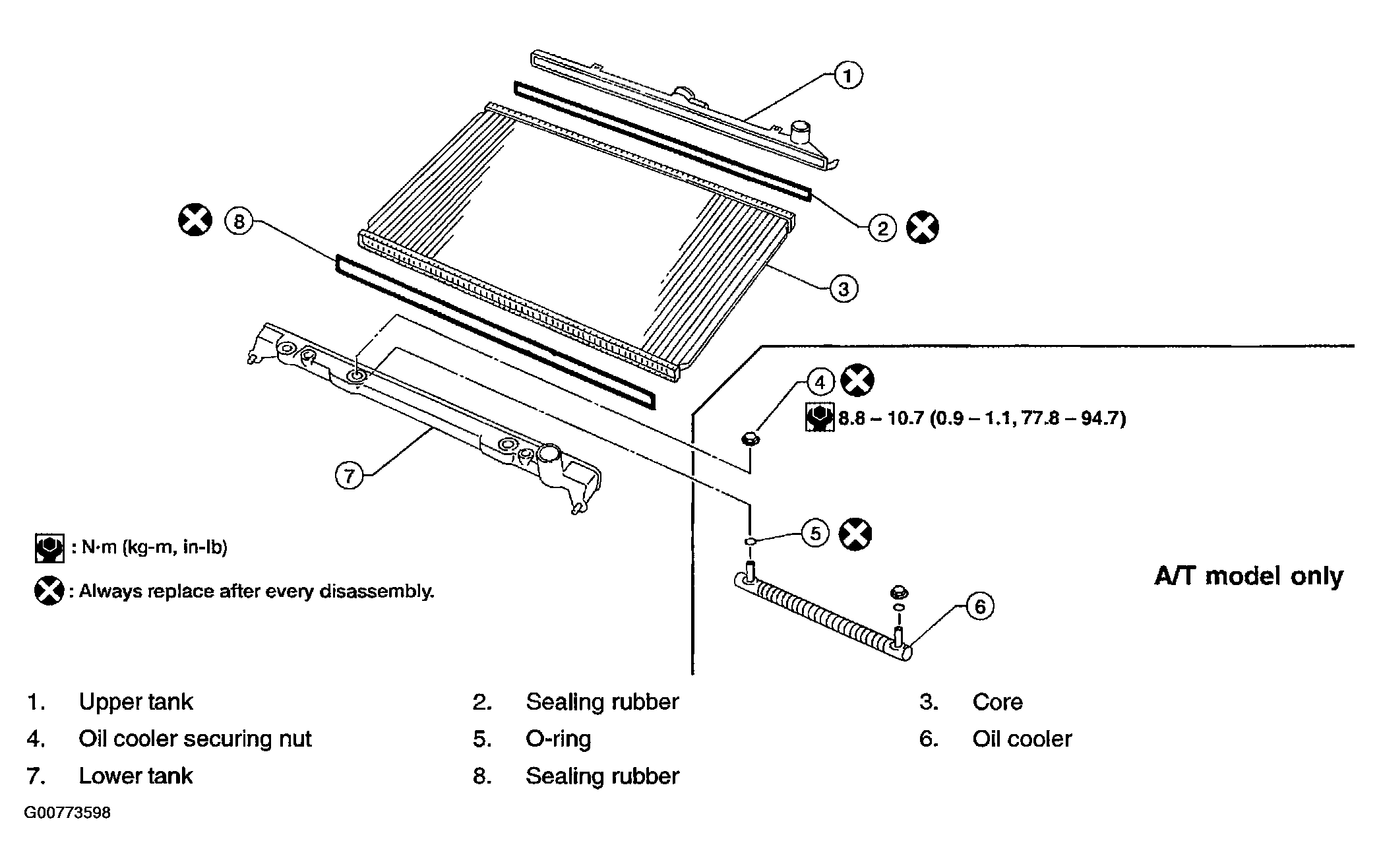

Fig 1: Identifying Radiator Assembly
G00773598Courtesy of NISSAN MOTOR CO., U.S.A.
