System Description: Operation

WARNING: This page is about a different variant/trim than selected.

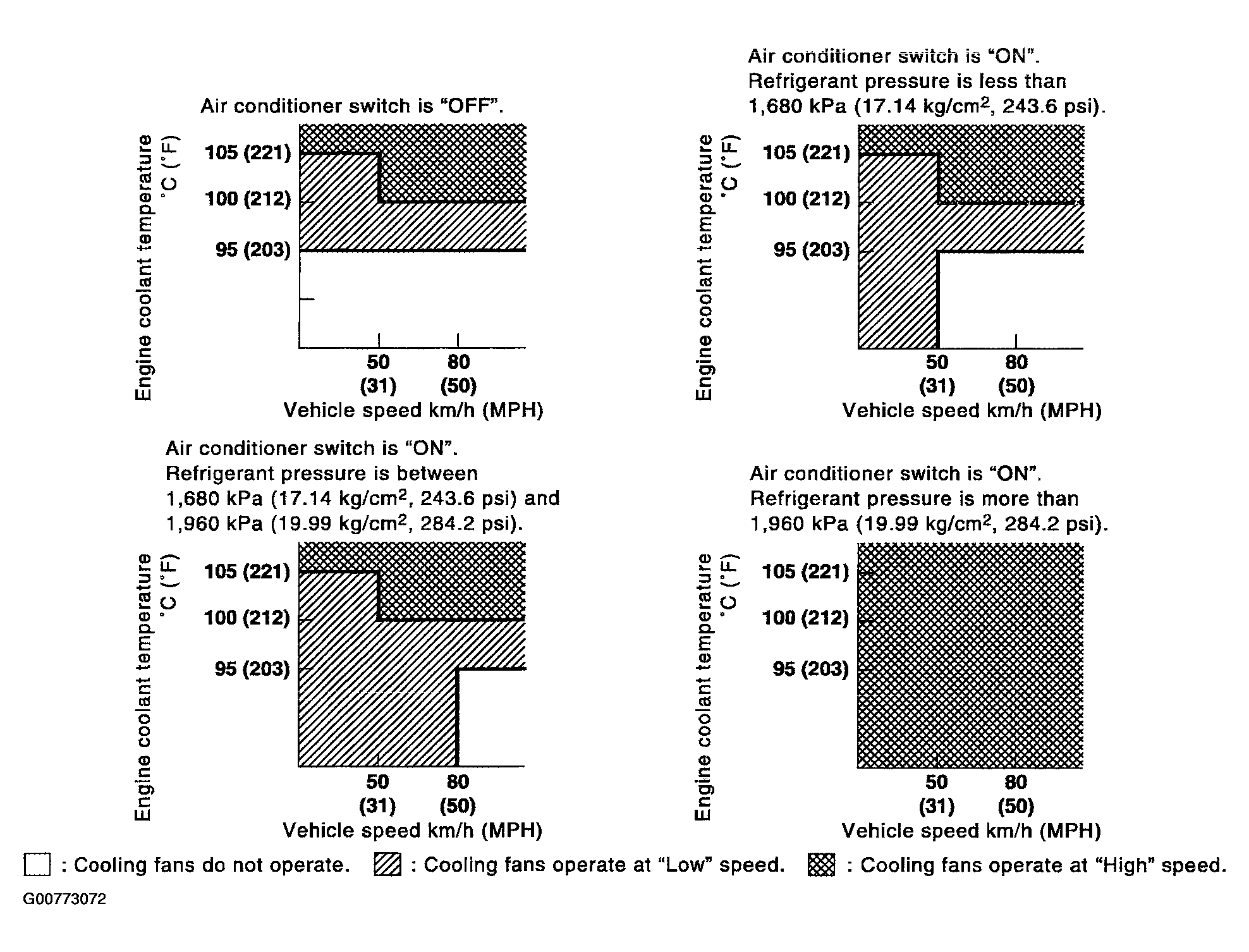

Fig 1: Cooling Fan Operation Graph
G00773072Courtesy of NISSAN MOTOR CO., U.S.A.
