Work Item

WARNING: This page is about a different variant/trim than selected.

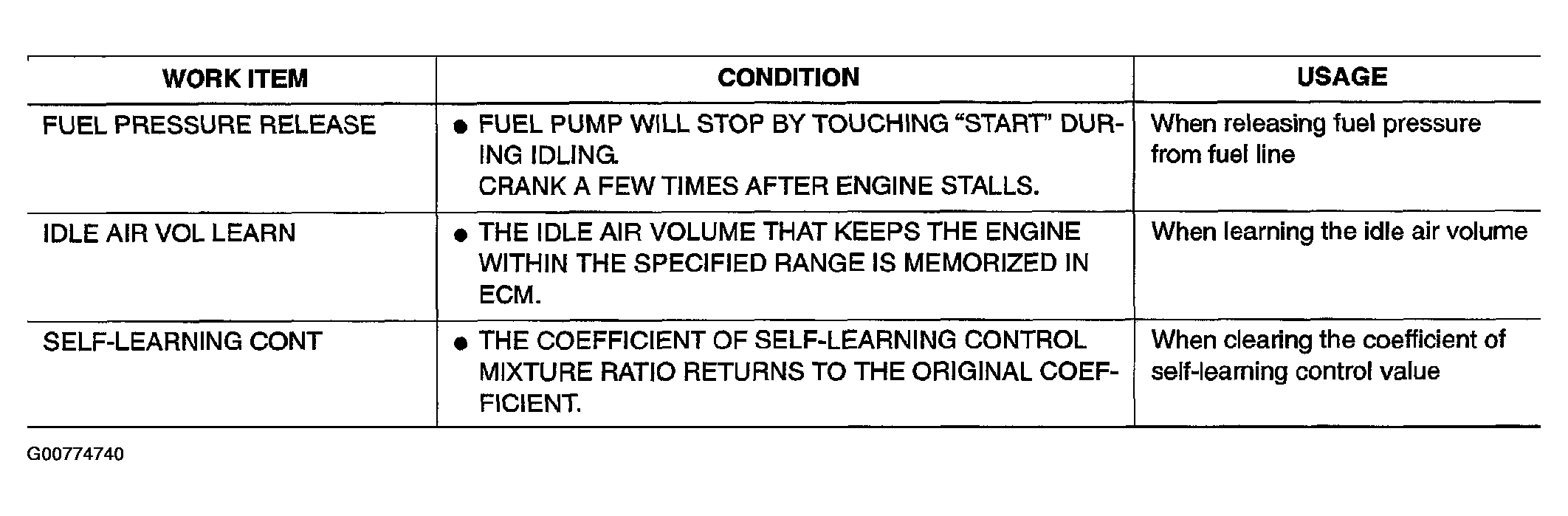

Fig 1: Work Item Specification Chart (1 Of 2)
G00774740Courtesy of NISSAN MOTOR CO., U.S.A.

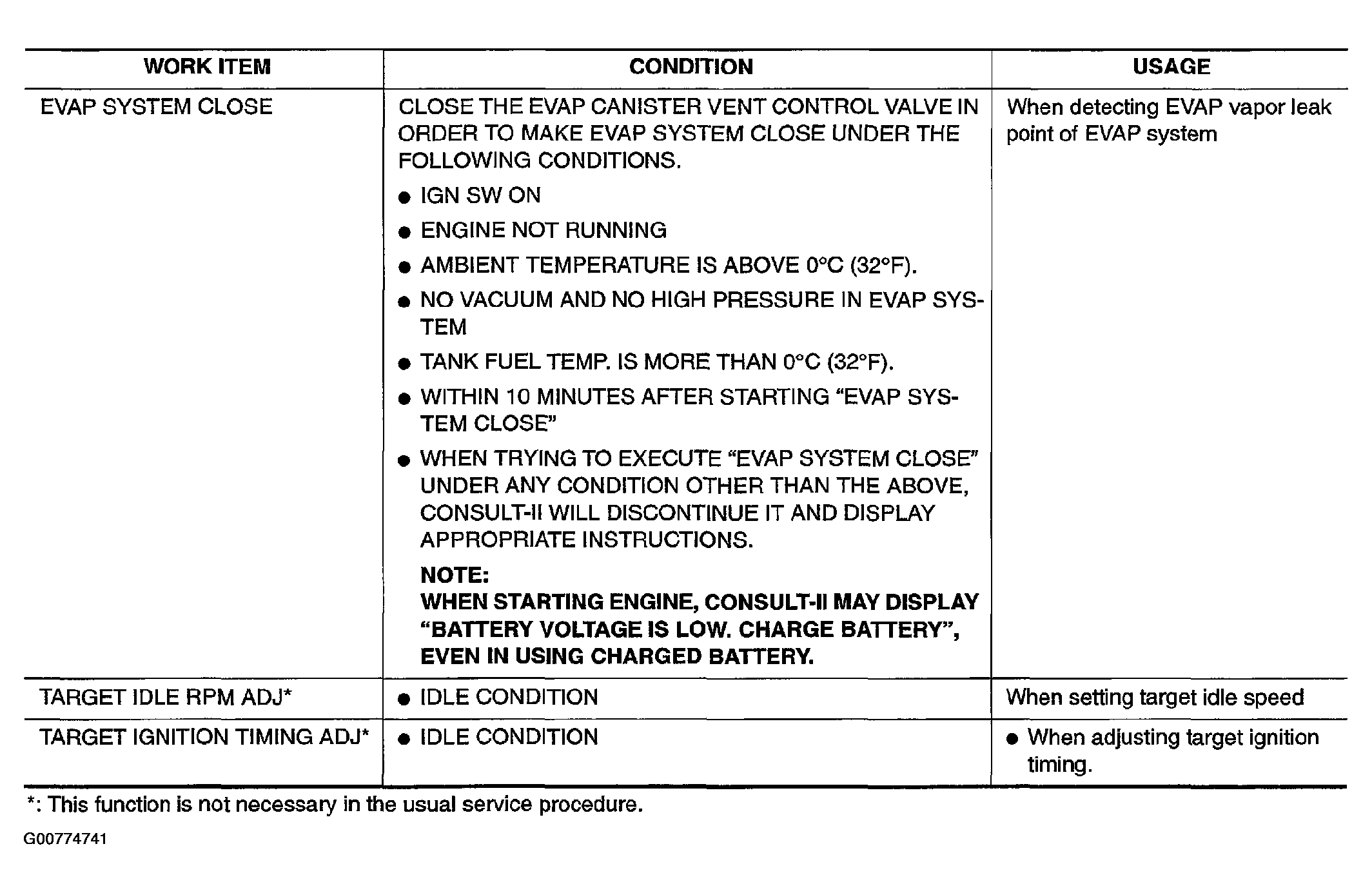

Fig 2: Work Item Specification Chart (2 Of 2)
G00774741Courtesy of NISSAN MOTOR CO., U.S.A.
