Home › Nissan-Datsun › 2004 › Sentra SE-R › Repair and Diagnosis › External Pages › Different variant/trim › Section 4 (Engine Control System - QG18DE) › Trouble Diagnosis › Generic Scan Tool (GST) › Function

Generic Scan Tool (GST): Function

WARNING: This page is about a different variant/trim than selected.

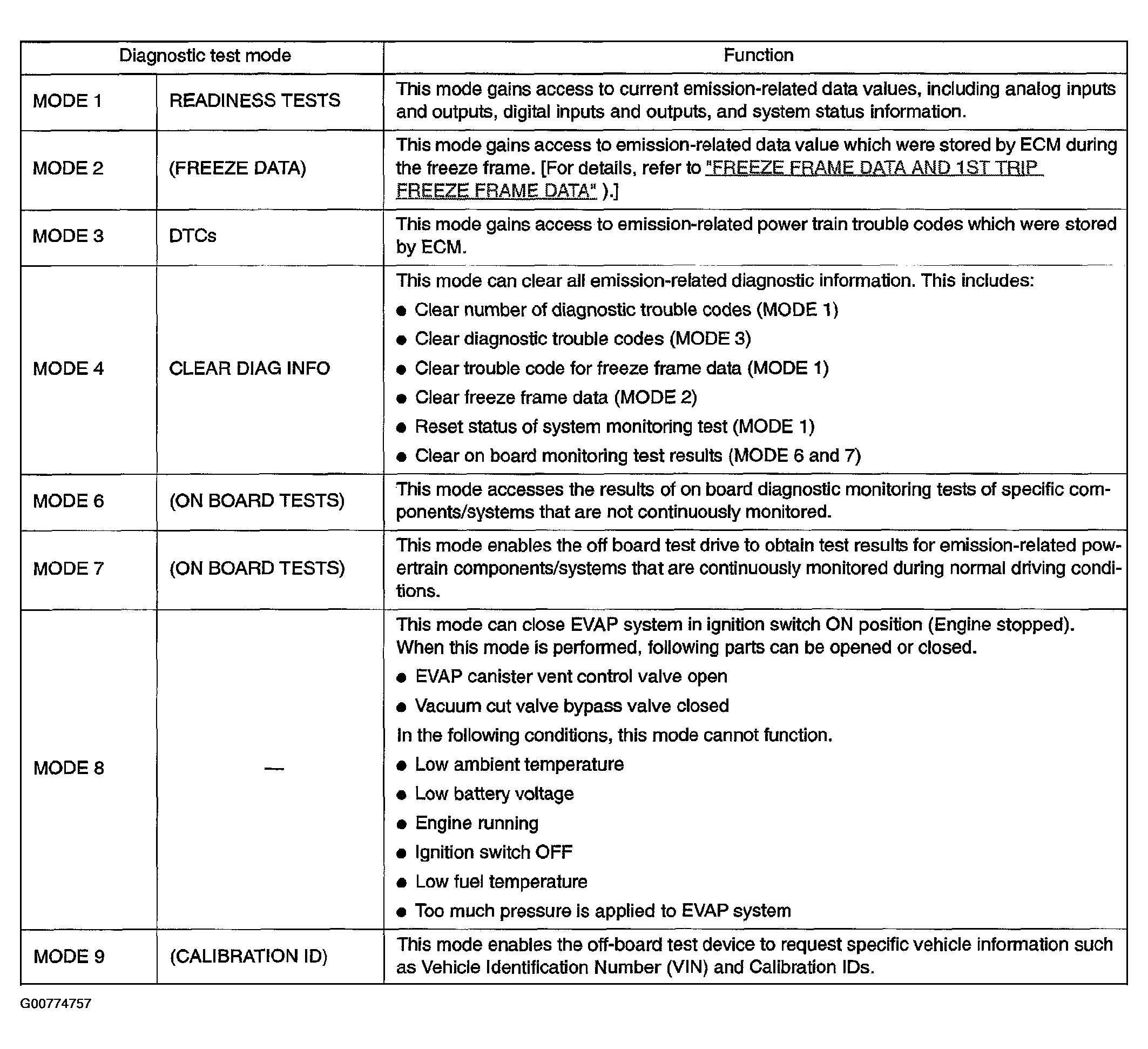

Fig 1: Function Chart
G00774757Courtesy of NISSAN MOTOR CO., U.S.A.
