Forward Clutch And Overrun Clutch: Components

WARNING: This page is about a different variant/trim than selected.

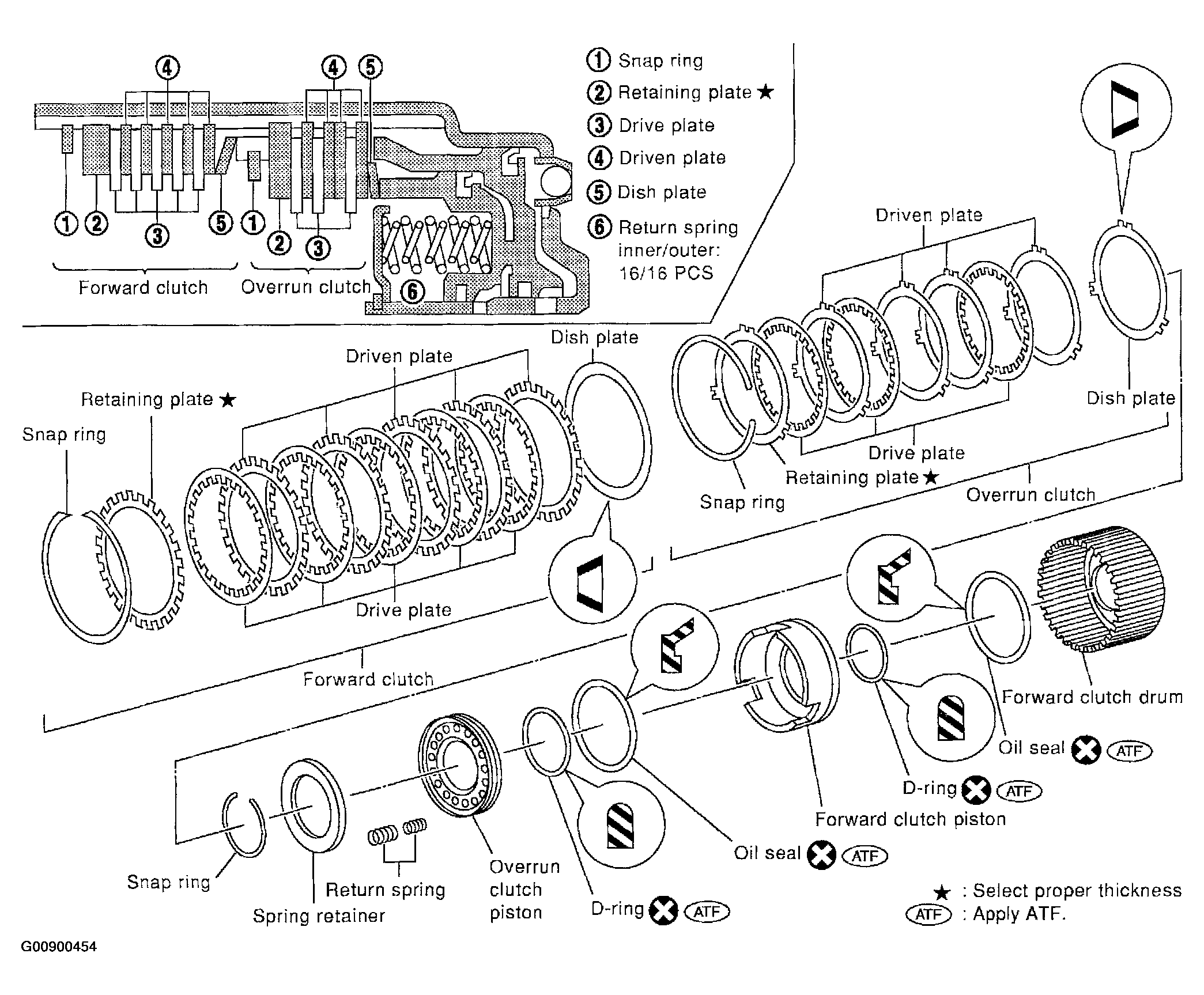

Fig 1: Identifying Forward Clutch And Overrun Clutch Components
G00900454Courtesy of NISSAN MOTOR CO., U.S.A.
