Low & Reverse Brake: Components

WARNING: This page is about a different variant/trim than selected.

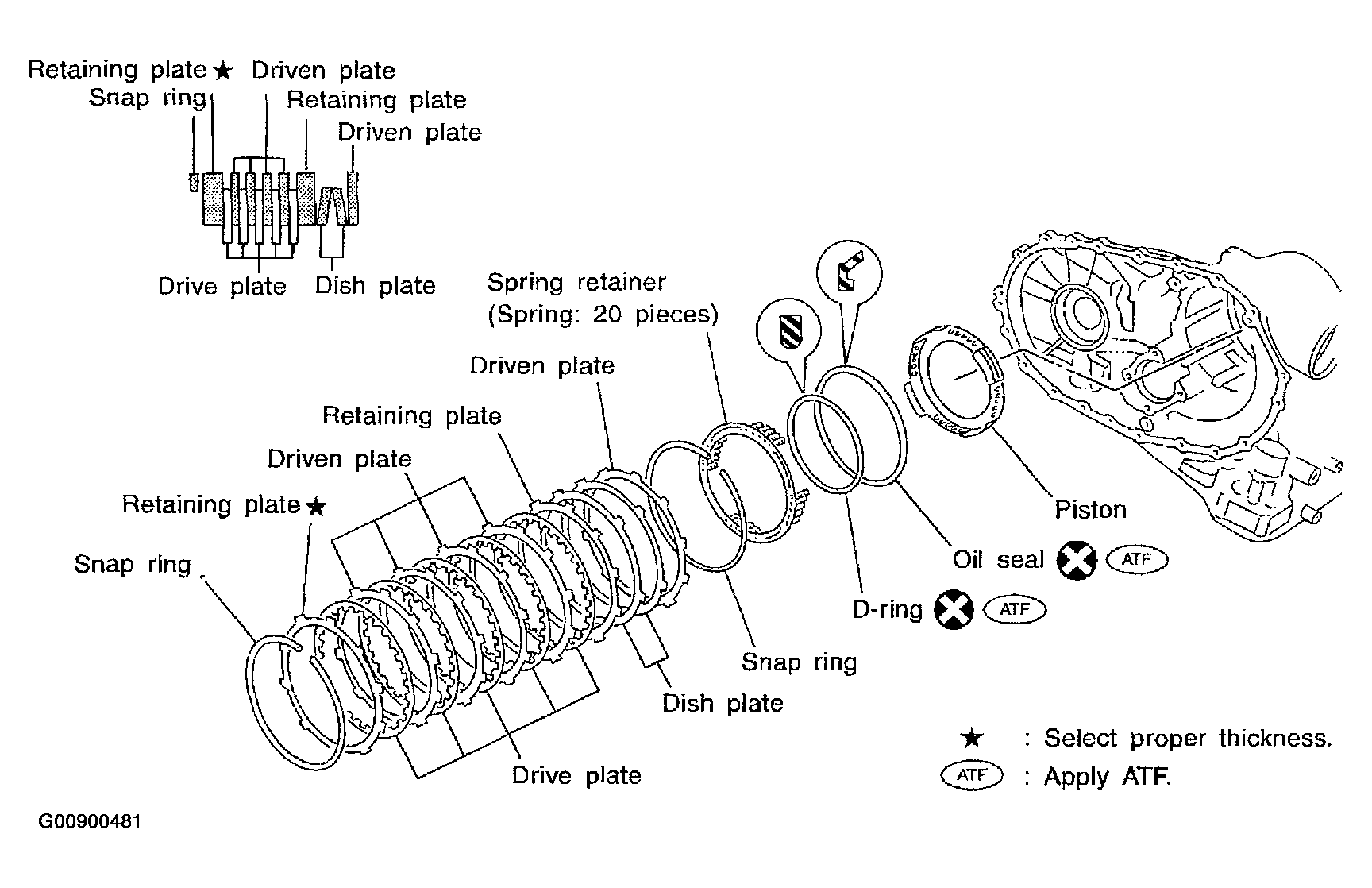

Fig 1: Identifying Low & Reverse Brake Components

G00900481

Courtesy of NISSAN MOTOR CO., U.S.A.
