DTC Work Support Mode With Consult-II

WARNING: This page is about a different variant/trim than selected.

CONSULT-II Setting Procedure

  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II to Data link connector which is located in left side lower dash panel.
    Fig 1: Identifying Data Link Connector
    G00899044Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START".
    Fig 2: Consult II Display (1 Of 13)
    G00899045Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".
    Fig 3: Consult II Display (2 Of 13)
    G00899046Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".
    Fig 4: Consult II Display (3 Of 13)
    G00899047Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).
    Fig 5: Consult II Display (4 Of 13)
    G00899048Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".

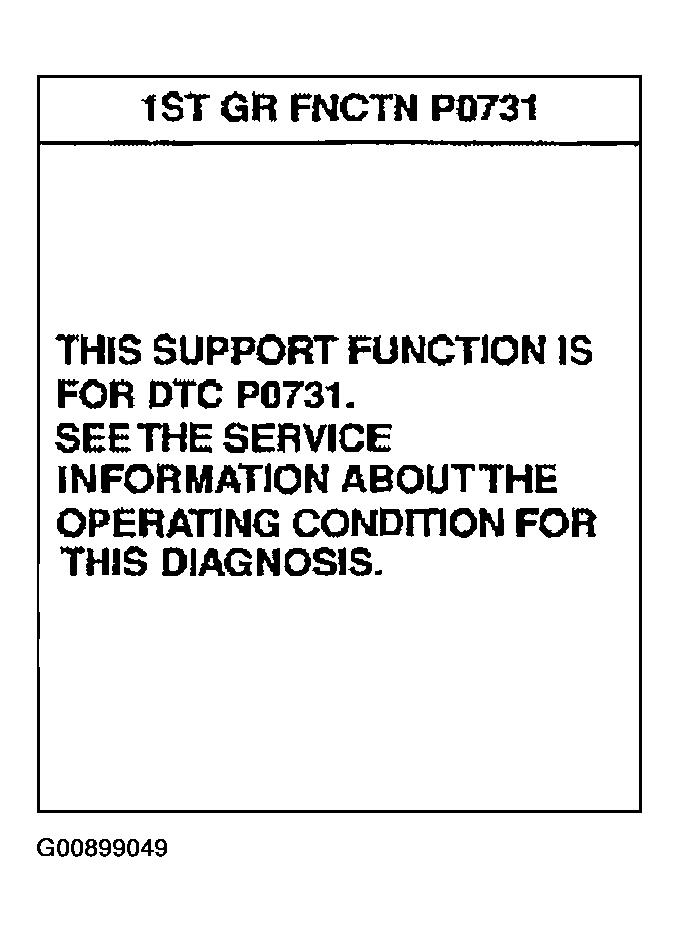

    Fig 6: Consult II Display (5 Of 13)
    G00899049Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

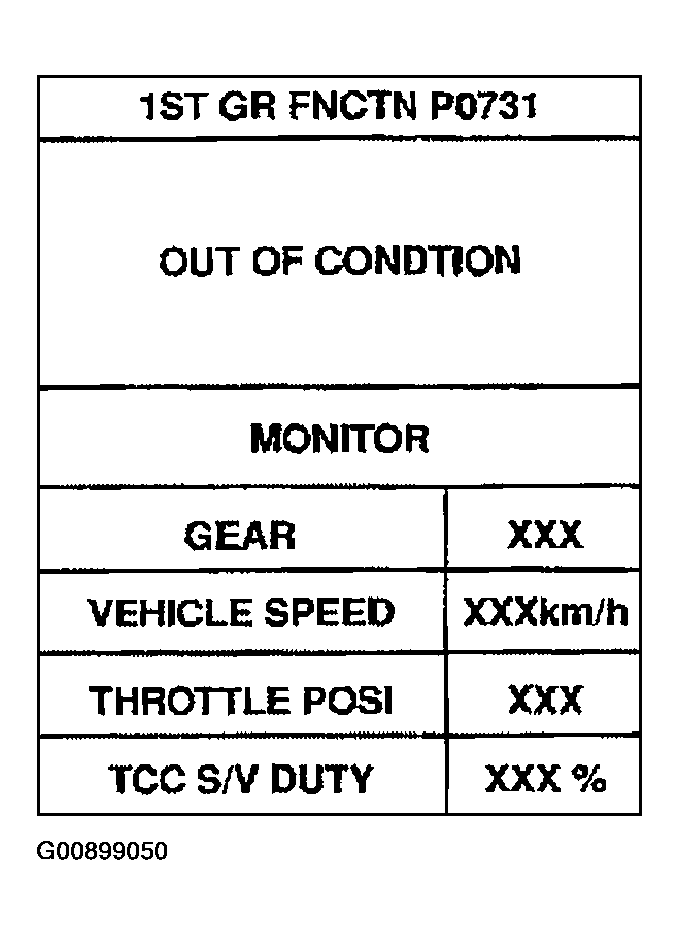

    Fig 7: Consult II Display (6 Of 13)
    G00899050Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

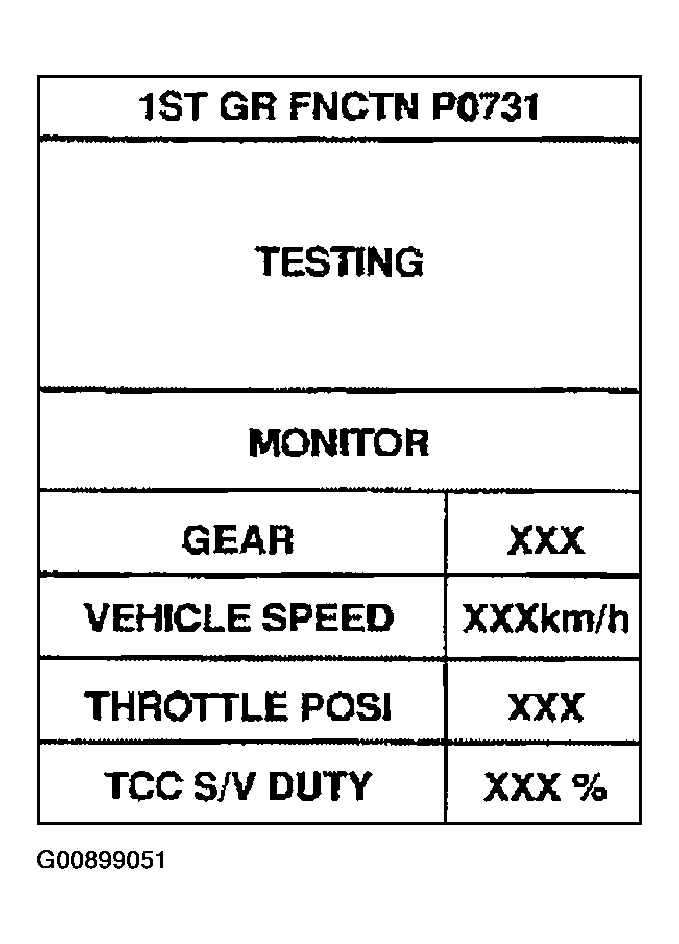

    Fig 8: Consult II Display (7 Of 13)
    G00899051Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to appropriate "DIAGNOSTIC PROCEDURE".
    Fig 9: Consult II Display (8 Of 13)
    G00899052Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: Consult II Display (9 Of 13)
    G00899053Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

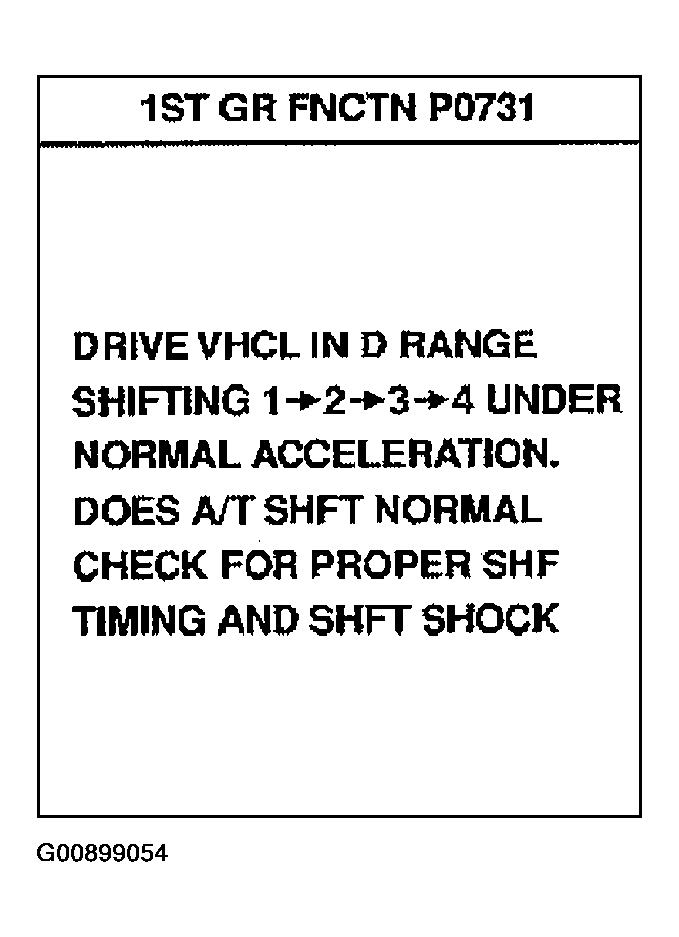

    Fig 11: Consult II Display (10 Of 13)
    G00899054Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".

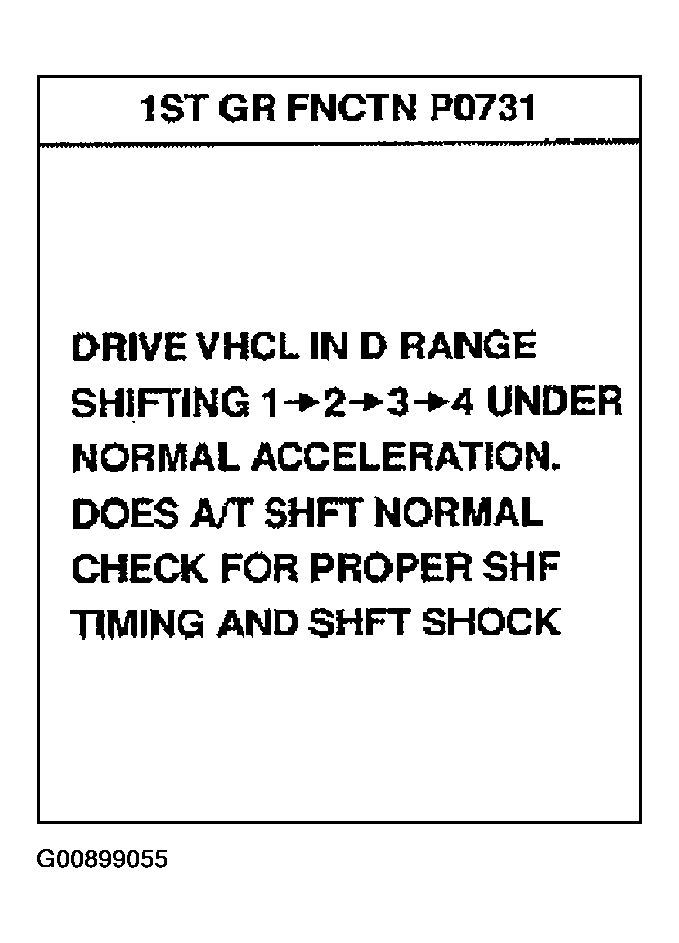

    Fig 12: Consult II Display (11 Of 13)
    G00899055Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.
    Fig 13: Consult II Display (12 Of 13)
    G00899056Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: Consult II Display (13 Of 13)
    G00899057Courtesy of NISSAN MOTOR CO., U.S.A.

    If "NG" appears on the screen, a malfunction may exist. Go to appropriate "DIAGNOSTIC PROCEDURE".
