Data Monitor Mode (A/T)

WARNING: This page is about a different variant/trim than selected.

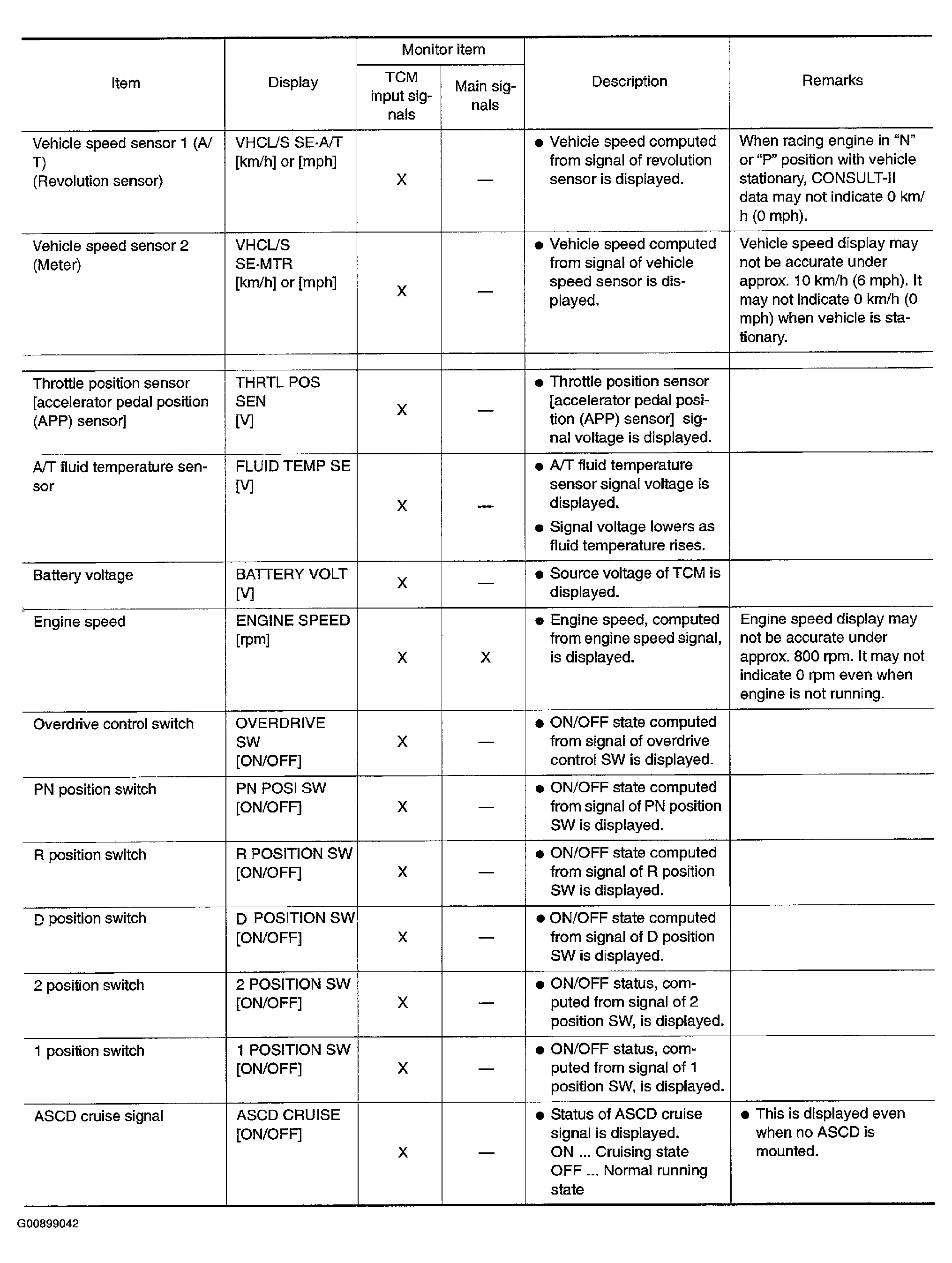

Fig 1: A/T Data Monitor Mode Chart (1 Of 2)
G00899042Courtesy of NISSAN MOTOR CO., U.S.A.

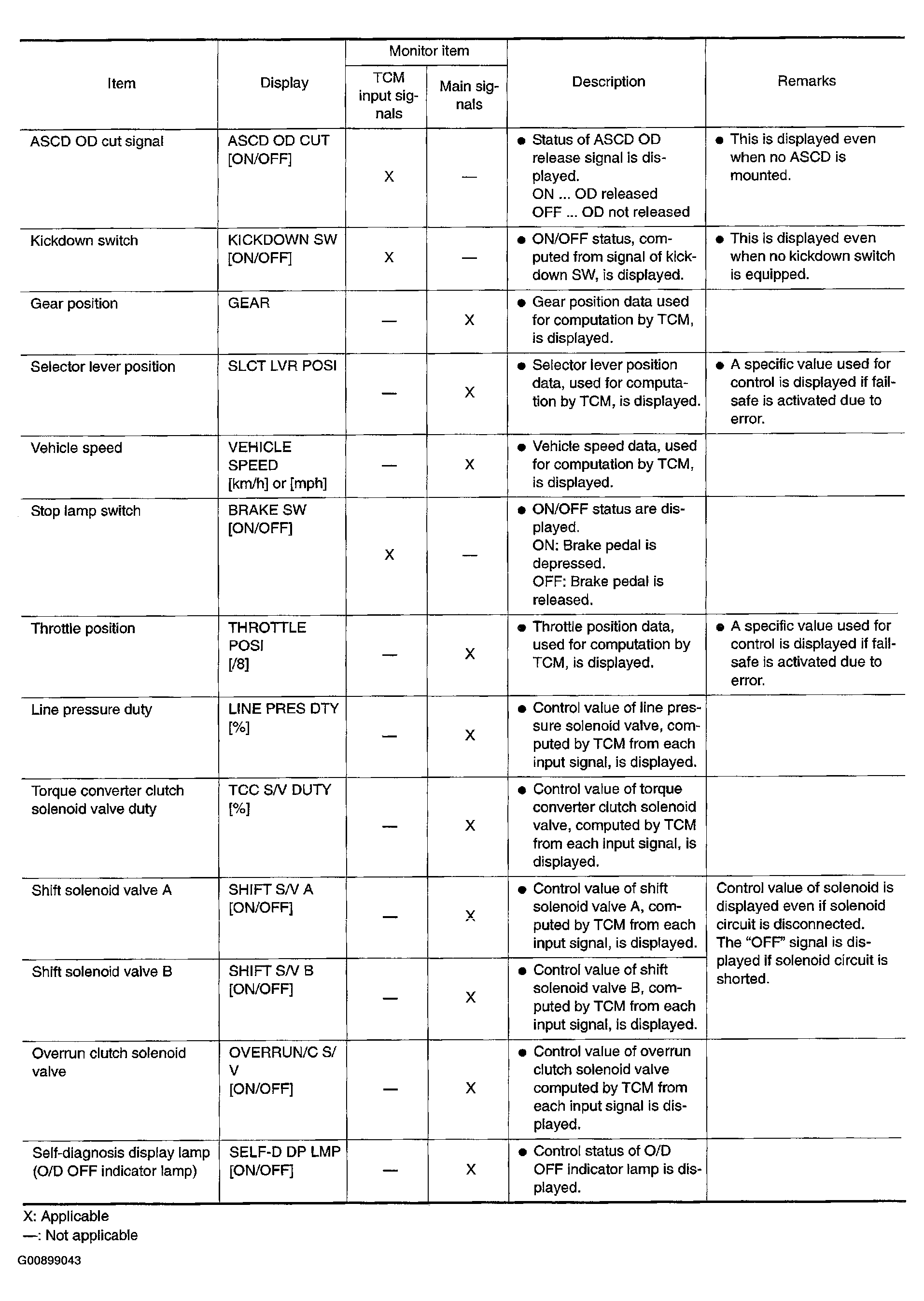

Fig 2: A/T Data Monitor Mode Chart (2 Of 2)
G00899043Courtesy of NISSAN MOTOR CO., U.S.A.
