Control of Shift Solenoid Valves A and B
WARNING: This page is about a different variant/trim than selected.
The TCM activates shift solenoid valves A and B according to signals from the throttle position sensor [accelerator pedal position (APP) sensor] and revolution sensor to select the optimum gear position on the basis of the shift schedule memorized in the TCM.

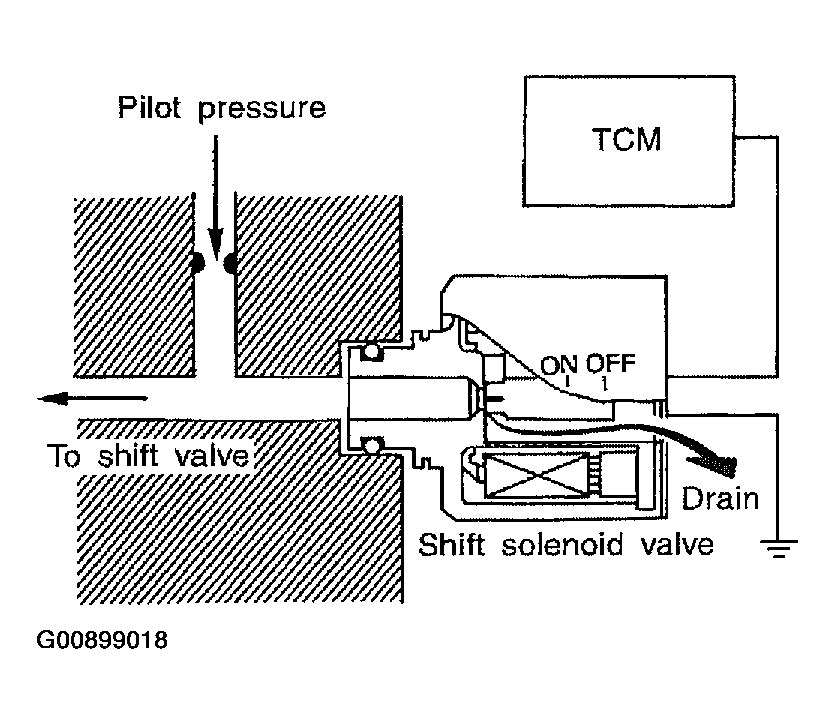

The shift solenoid valve performs simple ON-OFF operation. When set to "ON", the drain circuit closes and pilot pressure is applied to the shift valve.
