Section 9 (Automatic Transaxle - Re4F03B)
›
Overall System
›
Shift Mechanism
›
Clutch And Band Chart
Clutch And Band Chart
WARNING:
This page is about a different variant/trim than selected.

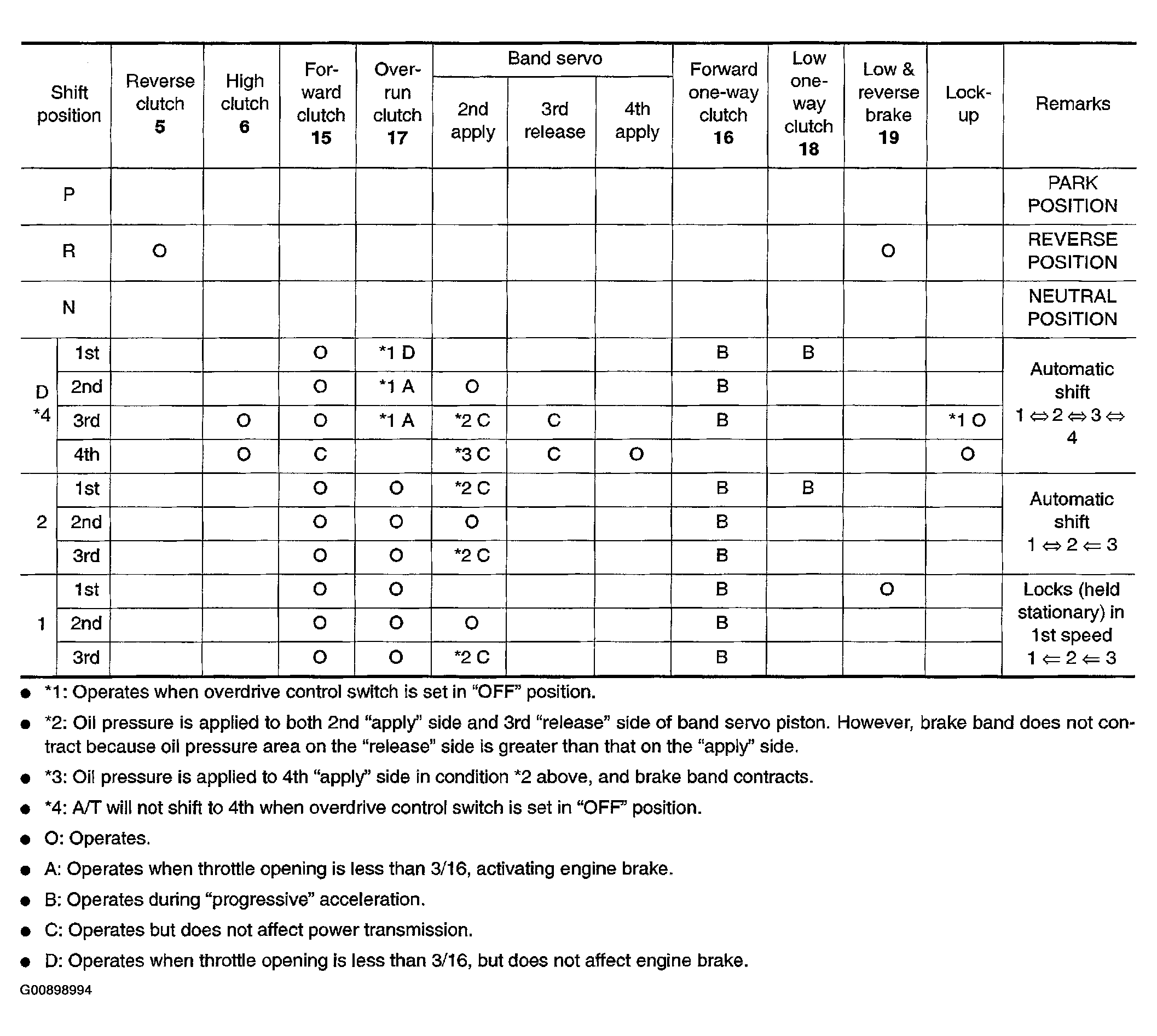

Fig 1: Clutch And Band Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
