Function Of Clutch And Brake
Function Of Clutch And Brake
WARNING:
This page is about a different variant/trim than selected.

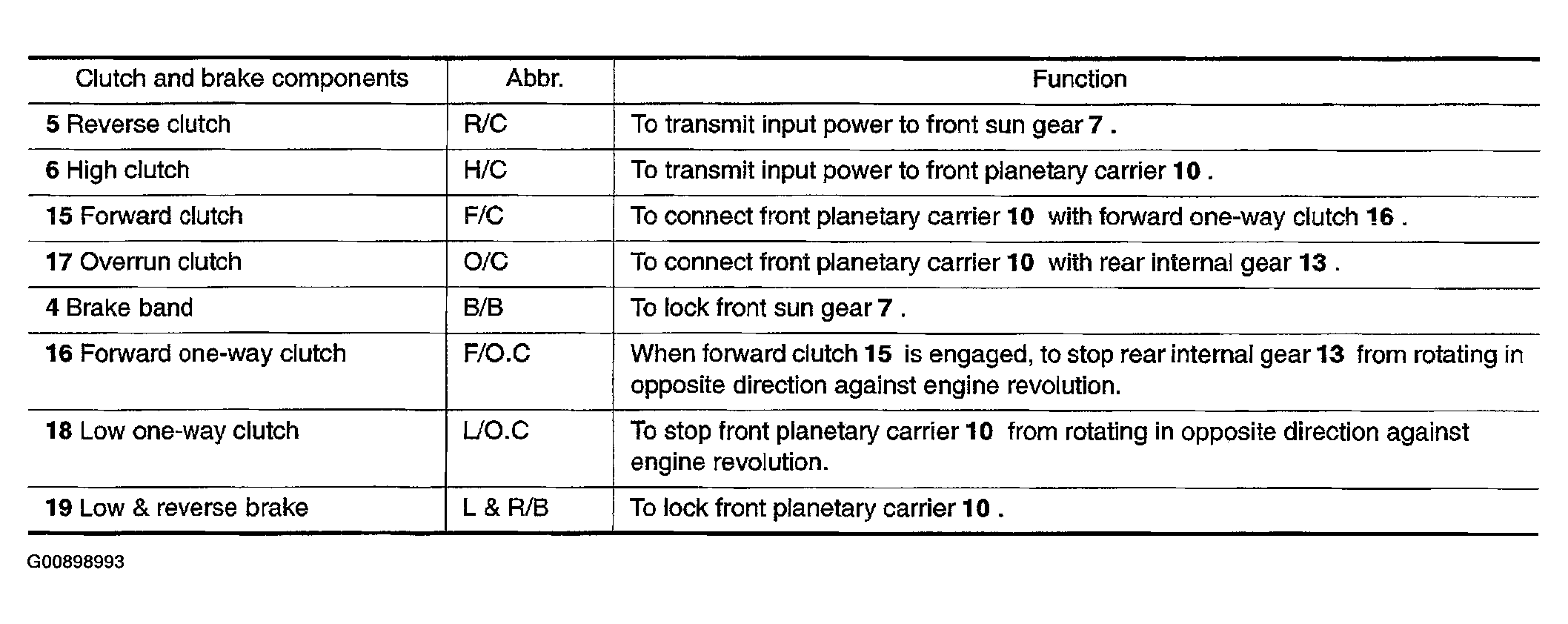

Fig 1: Clutch And Brake Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
