Reverse Clutch: Disassembly

WARNING: This page is about a different variant/trim than selected.

Check operation of reverse clutch.
1. Install seal ring onto drum support of oil pump cover and install reverse clutch assembly. Apply compressed air to oil hole.
2. Check to see that retaining plate moves to snap ring.
3. If retaining plate does not contact snap ring:
- D-ring might be damaged.
- Oil seal might be damaged.
- Fluid might be leaking past piston check ball.

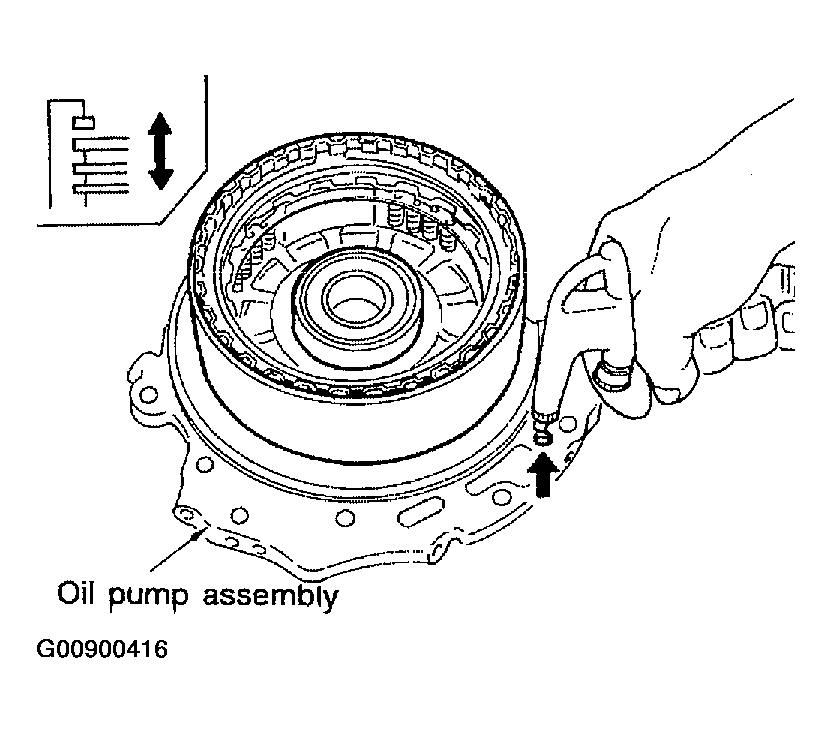

Fig 1: Checking Operation Of Reverse Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring.
- Do not expand snap ring excessively.
Remove drive plates, driven plates, retaining plate, and dish plates.

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and remove snap ring from reverse clutch drum while compressing return springs.
- Set Tool directly above springs.
- Do not expand snap ring excessively.
Fig 3: Removing Snap Ring From Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove spring retainer and return springs.
- Do not remove return springs from spring retainer.

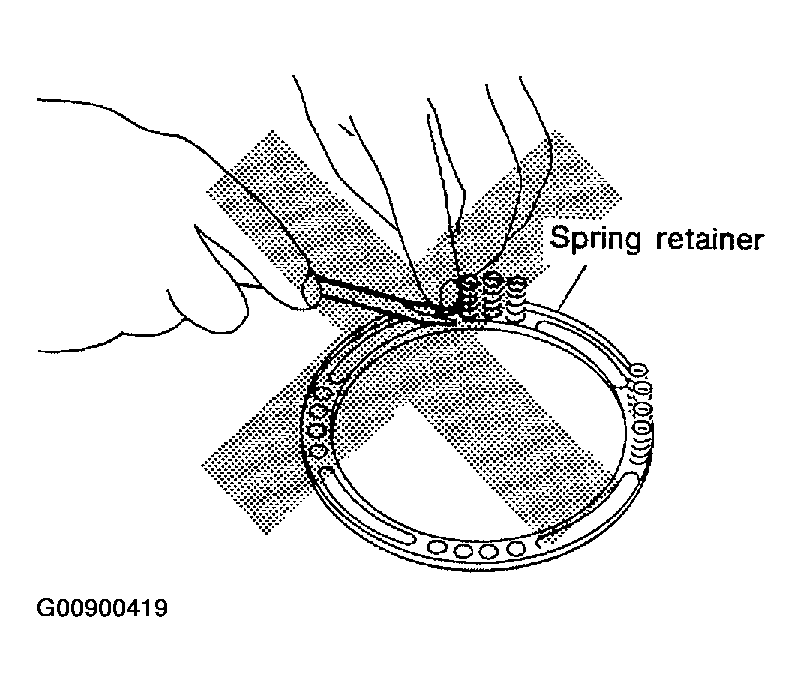

Fig 4: Do Not Remove Return Springs From Spring Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove piston from reverse clutch drum by turning it.

Fig 5: Removing Piston From Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-ring and oil seal from piston.

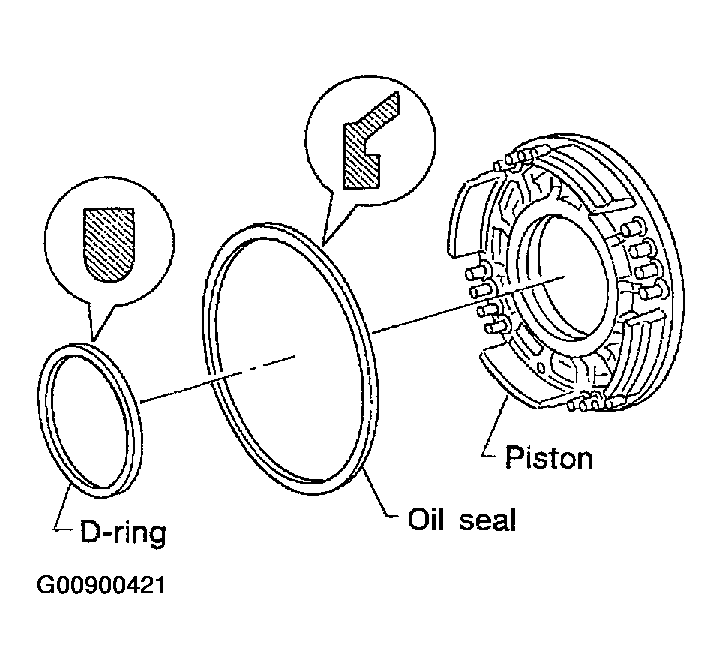

Fig 6: Removing D-Ring And Oil Seal From Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
