Section 9 (Automatic Transaxle - Re4F03B)
›
Service Data And Specifications (SDS)
›
Final Drive
›
Differential Side Gear Thrust Washers
Differential Side Gear Thrust Washers
WARNING:
This page is about a different variant/trim than selected.

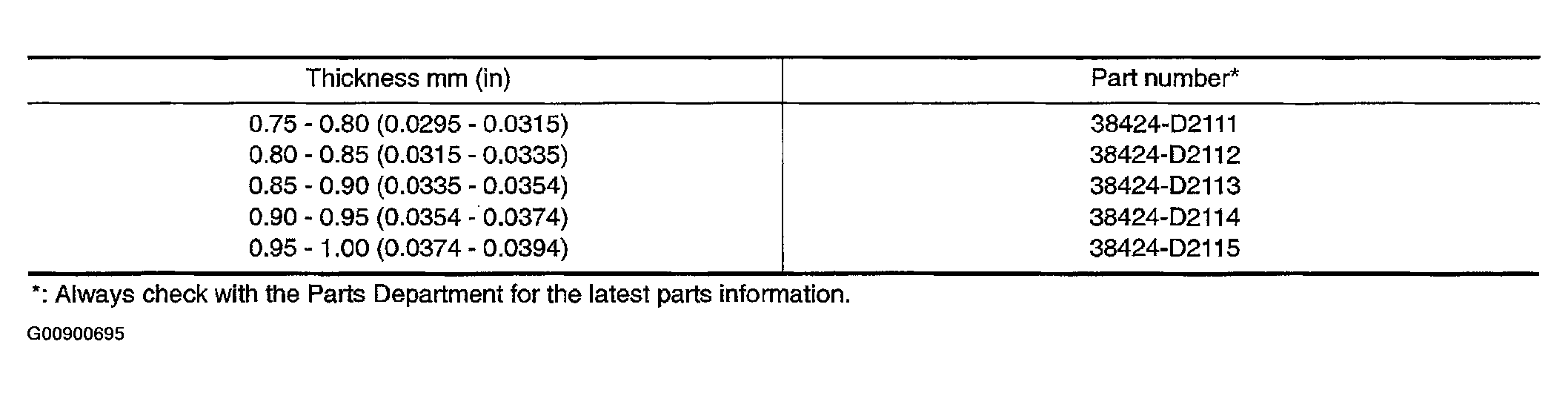

Fig 1: Differential Side Gear Thrust Washers Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
