Line Pressure Test Procedure

1. Check A/T fluid and engine oil levels. If necessary, add fluid or oil.
2. Drive vehicle for approx. 10 minutes or until engine oil and ATF reach operating temperature.
   1. ATF operating temperature: 50 - 80°C (122 - 176°F)
3. Install pressure gauge to corresponding line pressure port.

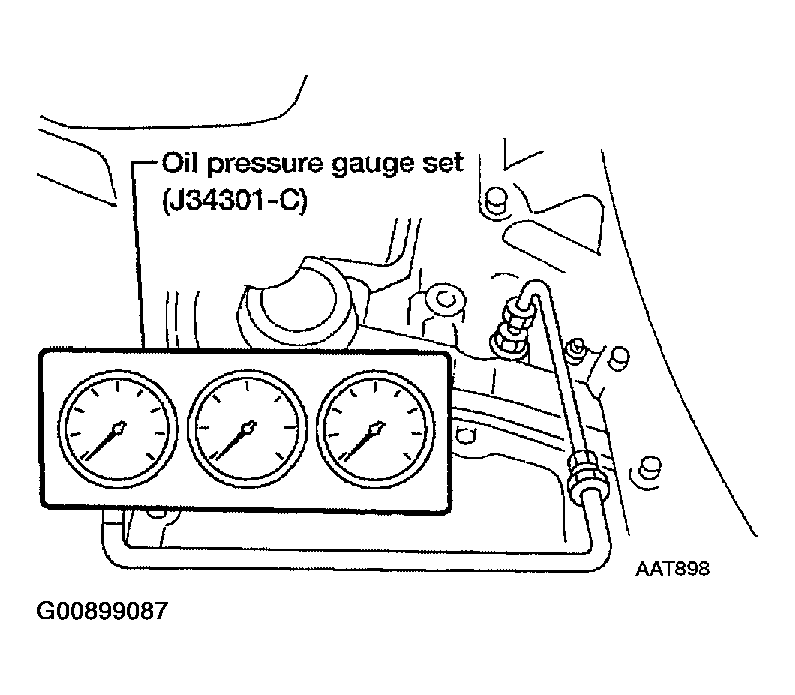

   Fig 1: Installing Pressure Gauge To Corresponding Line Pressure Port

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Set parking brake and block wheels.
   • Continue to depress brake pedal fully while line pressure test is being performed at stall speed.
5. Start engine and measure line pressure at idle and stall speed.
   • When measuring line pressure at stall speed, follow the stall test procedure.

Refer to "LINE PRESSURE TEST ".

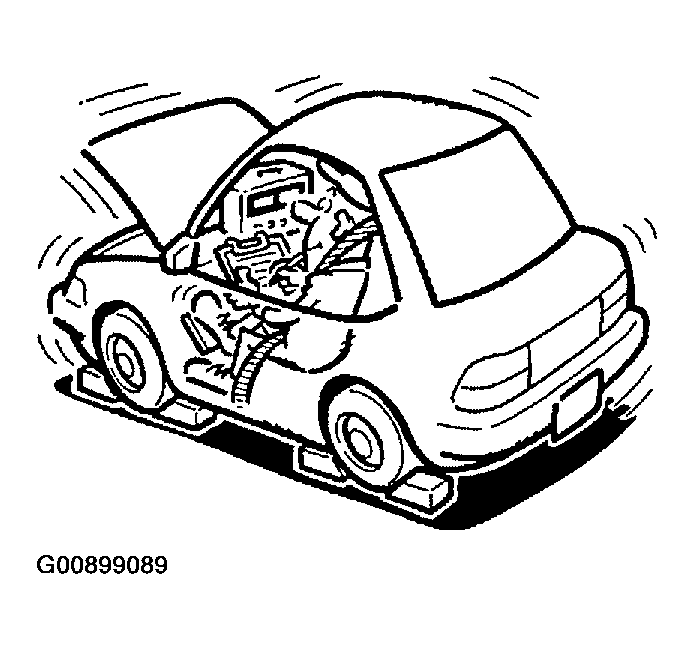

Fig 2: Measuring Line Pressure At Idle And Stall Speed

Courtesy of NISSAN MOTOR CO., U.S.A.
