Automatic Transaxle - Re4F04B
›
Overall System
›
Circuit Diagram
Circuit Diagram

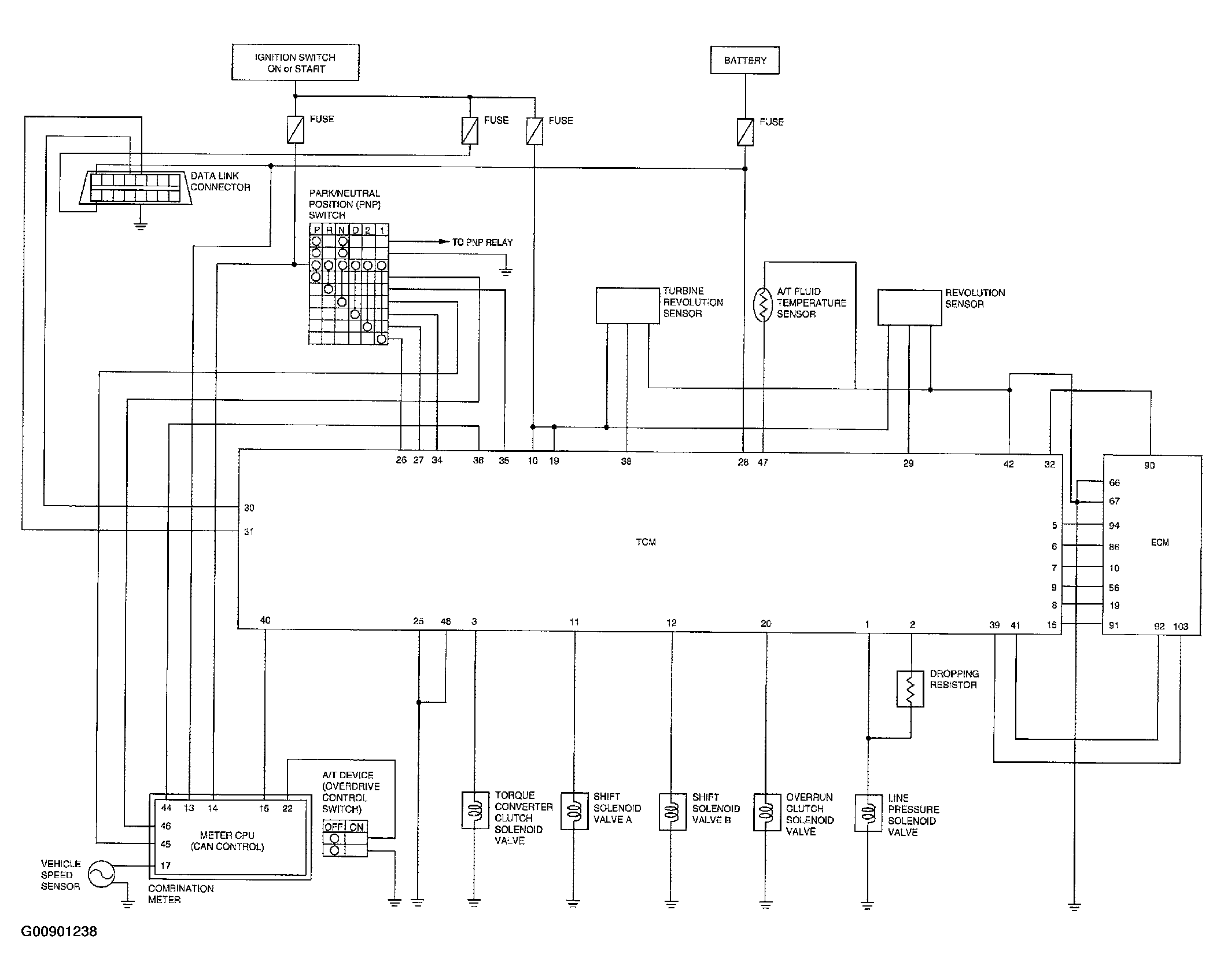

Fig 1: Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
