Automatic Transaxle - Re4F04B
›
Overall System
›
Cross-sectional View
Cross-sectional View

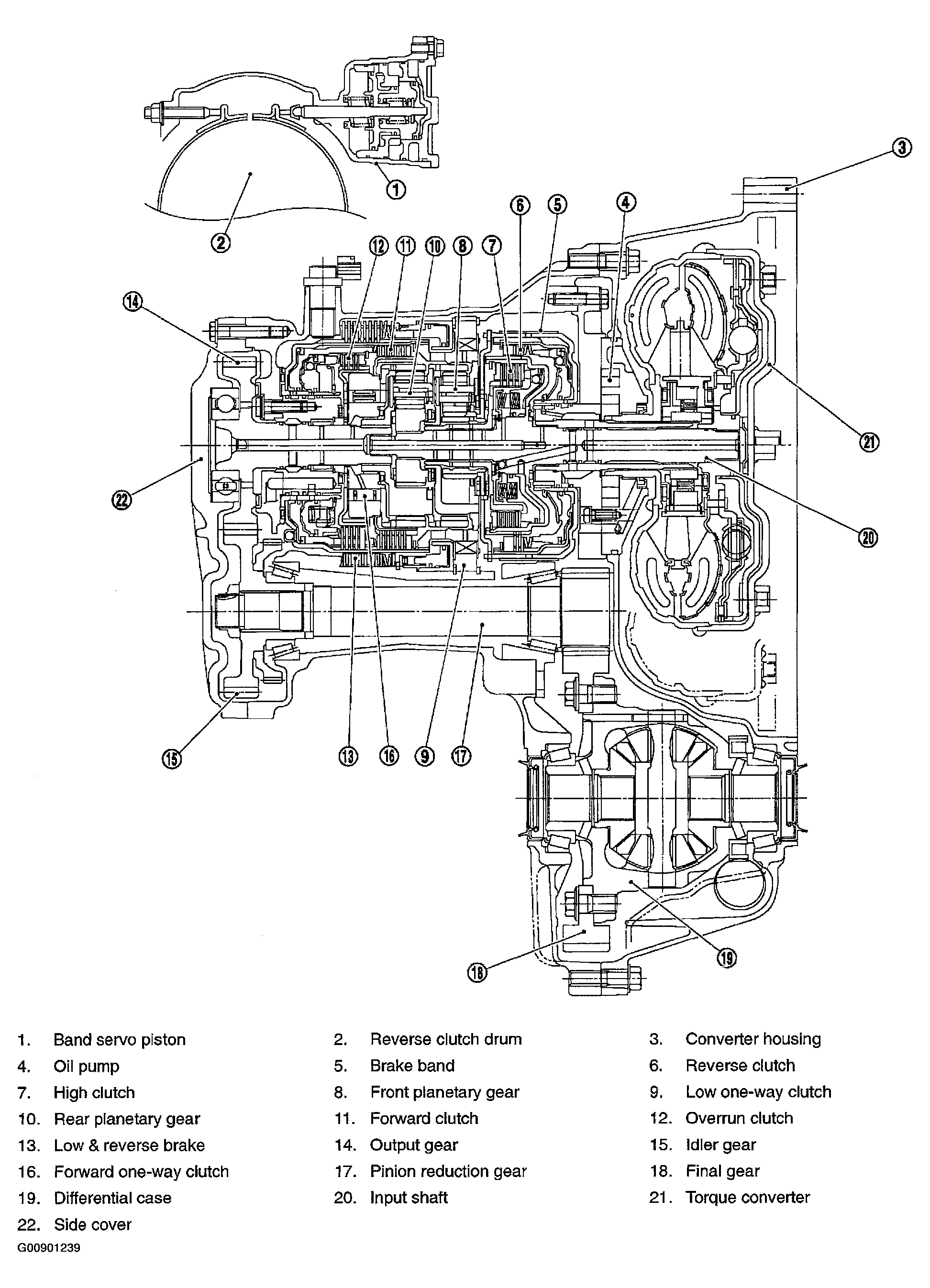

Fig 1: Cross-Sectional View Of A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
