Automatic Transaxle - Re4F04B
›
Overall System
›
Hydraulic Control Circuit
Hydraulic Control Circuit

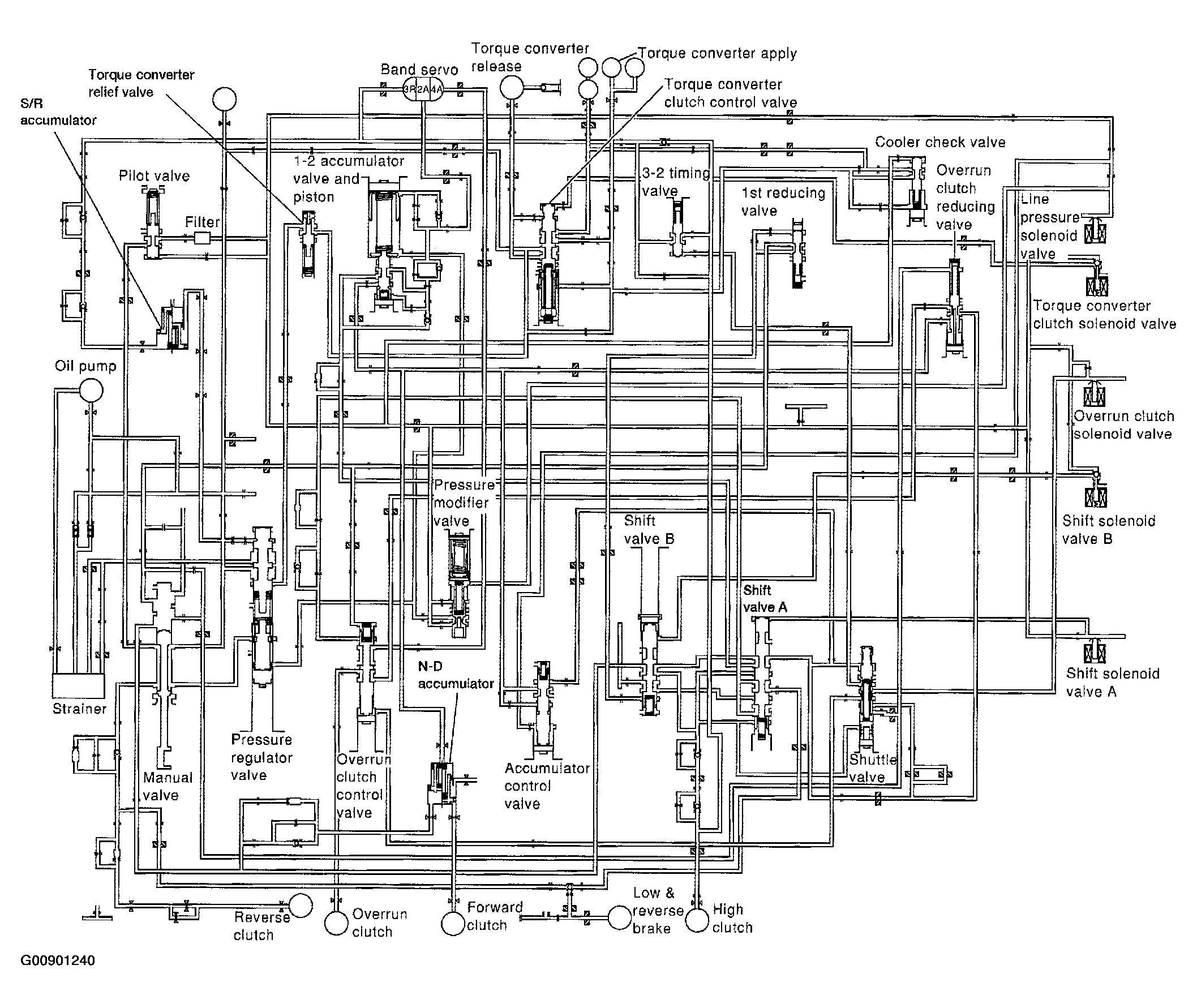

Fig 1: Hydraulic Control Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
