Clutch And Band Chart
Clutch And Band Chart

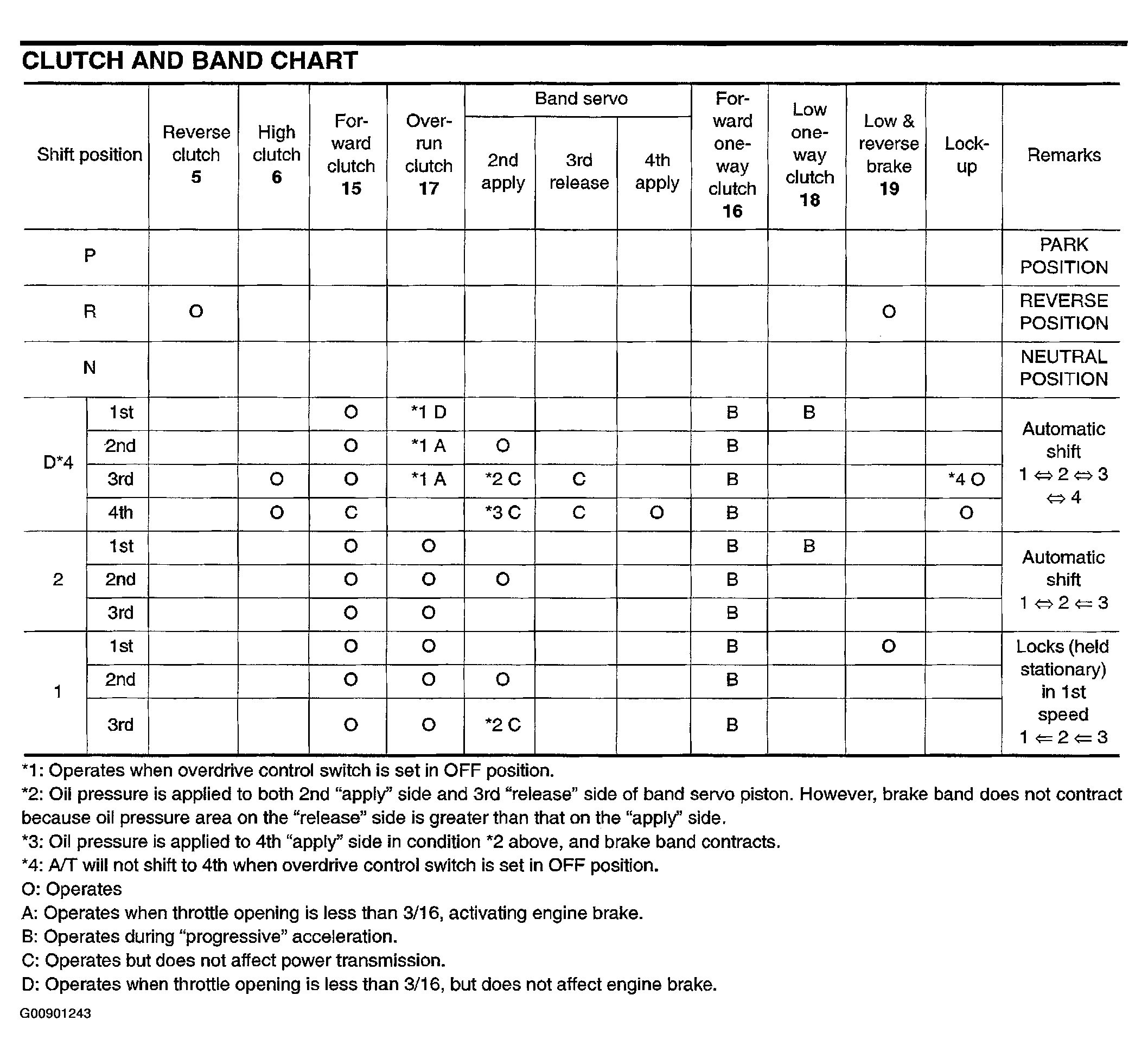

Fig 1: Clutch And Band Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
