11 Position

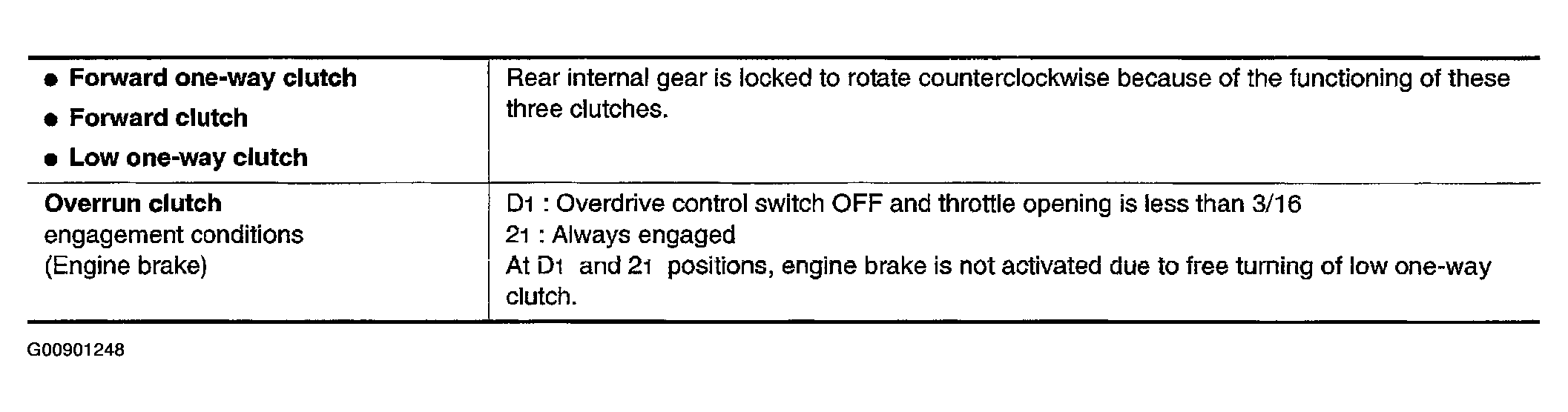

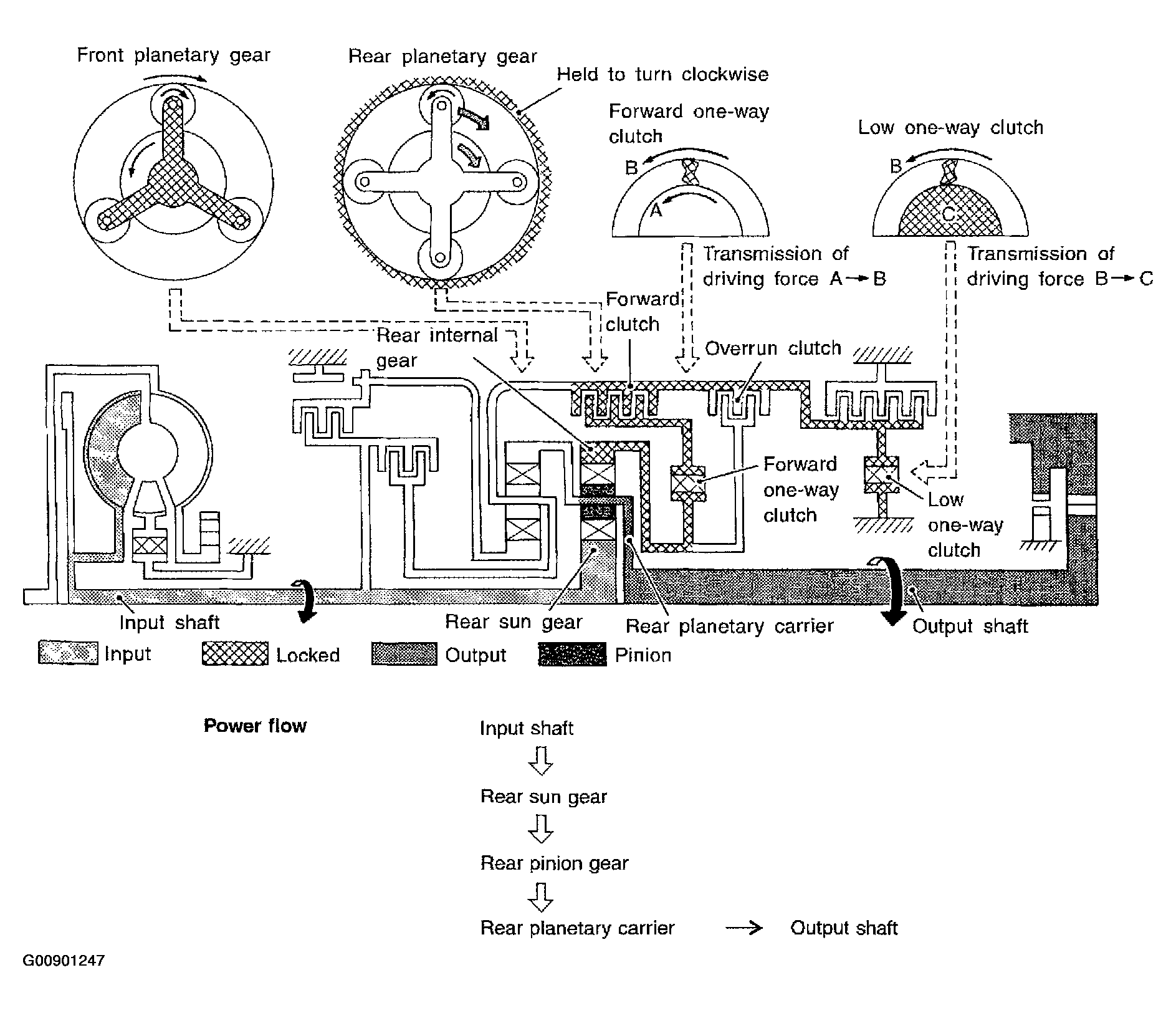

Fig 1: Power Transmission - "11" Position (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Power Transmission - "11" Position (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

D1 and 21 Positions

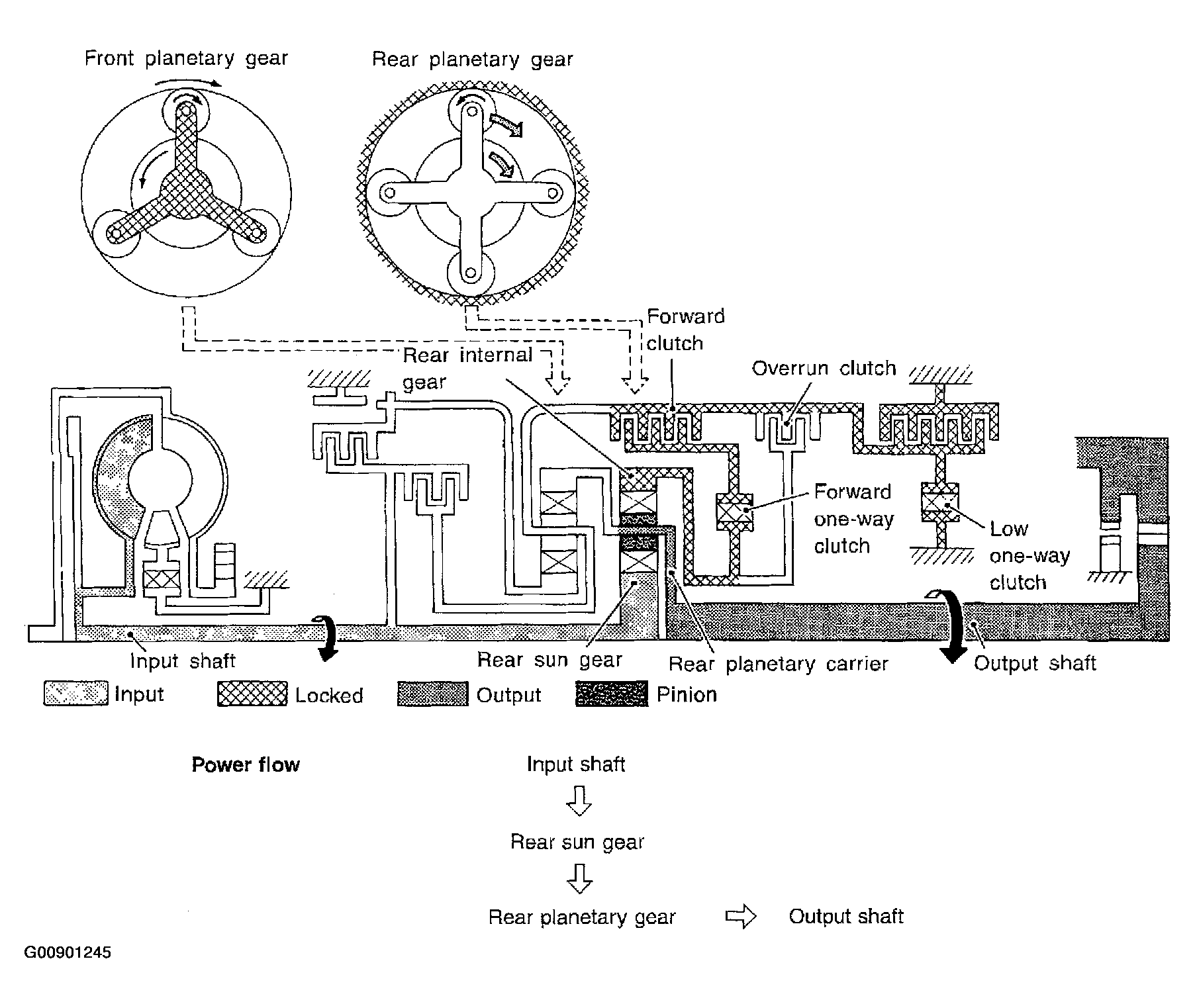

Fig 3: Power Transmission - "D1" And "21" Position (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Power Transmission - "D1" And "21" Position (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
