Automatic Transaxle - Re4F04B
›
Overhaul
›
Oil Channel
Oil Channel

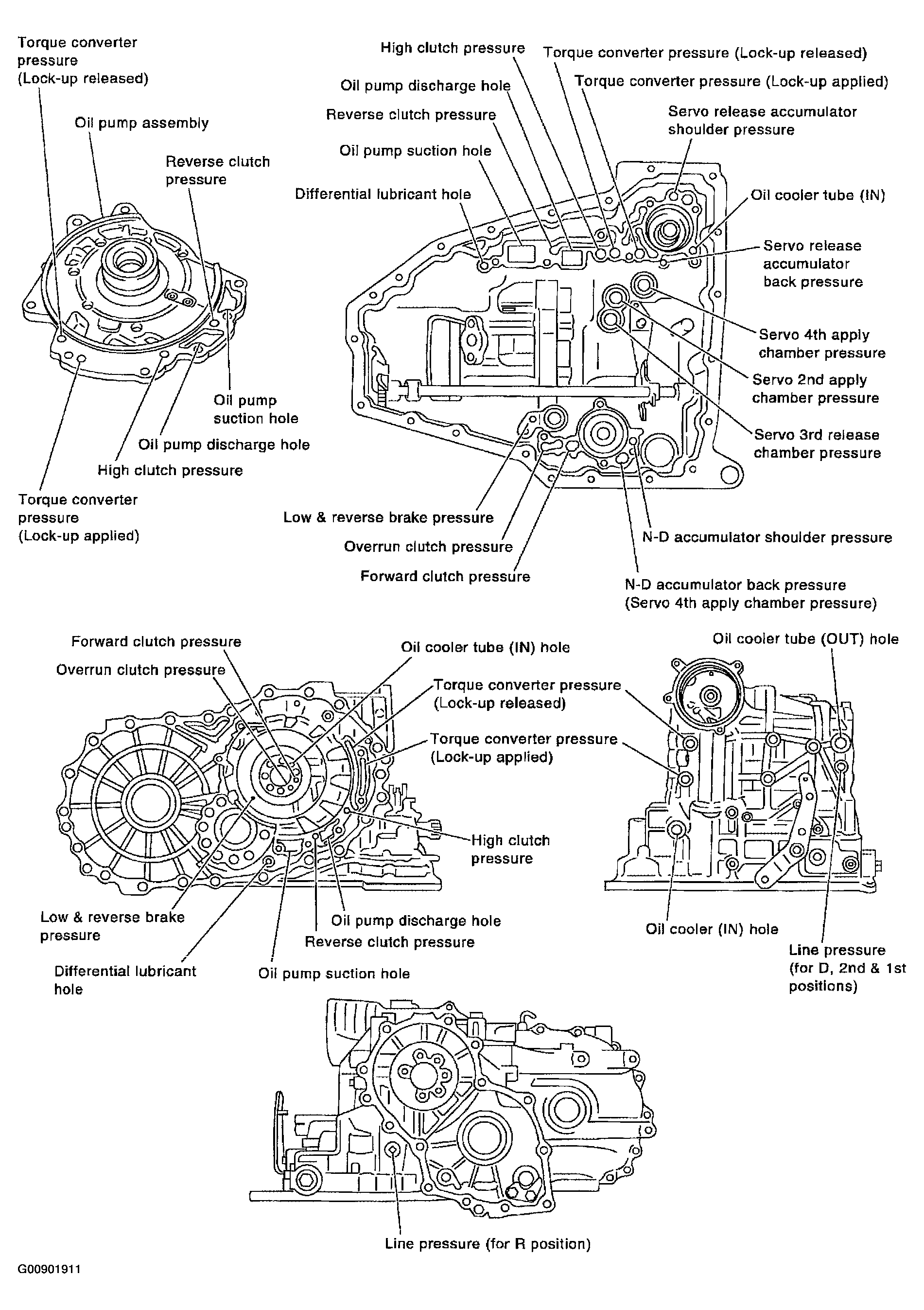

Fig 1: Identifying Oil Channels
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
