Band Servo Piston Assembly
›
Components
Band Servo Piston Assembly: Components

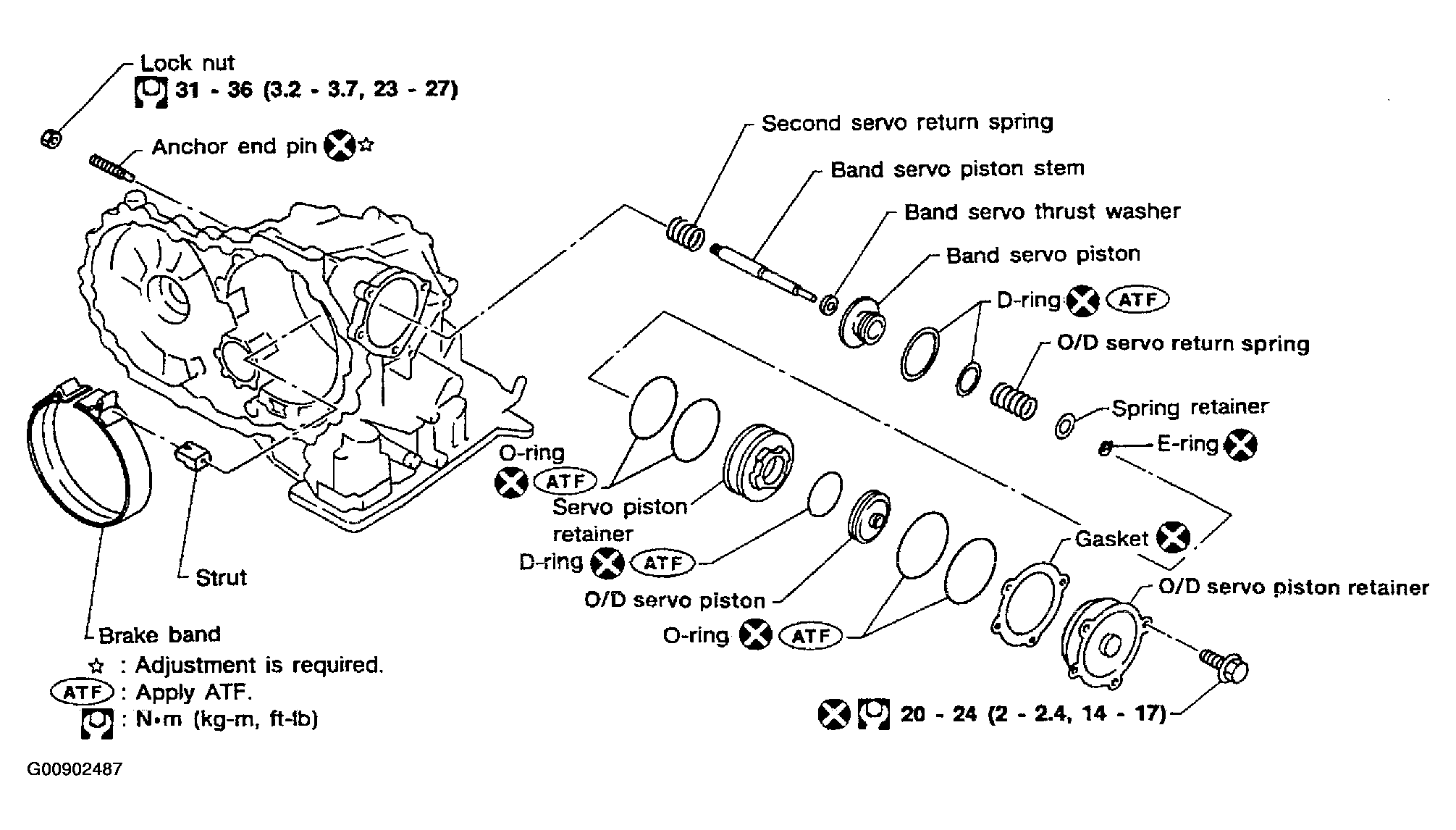

Fig 1: Identifying Band Servo Piston Assembly Components And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
