Control Valve Upper Body: Components
Apply ATF to all components before installation.

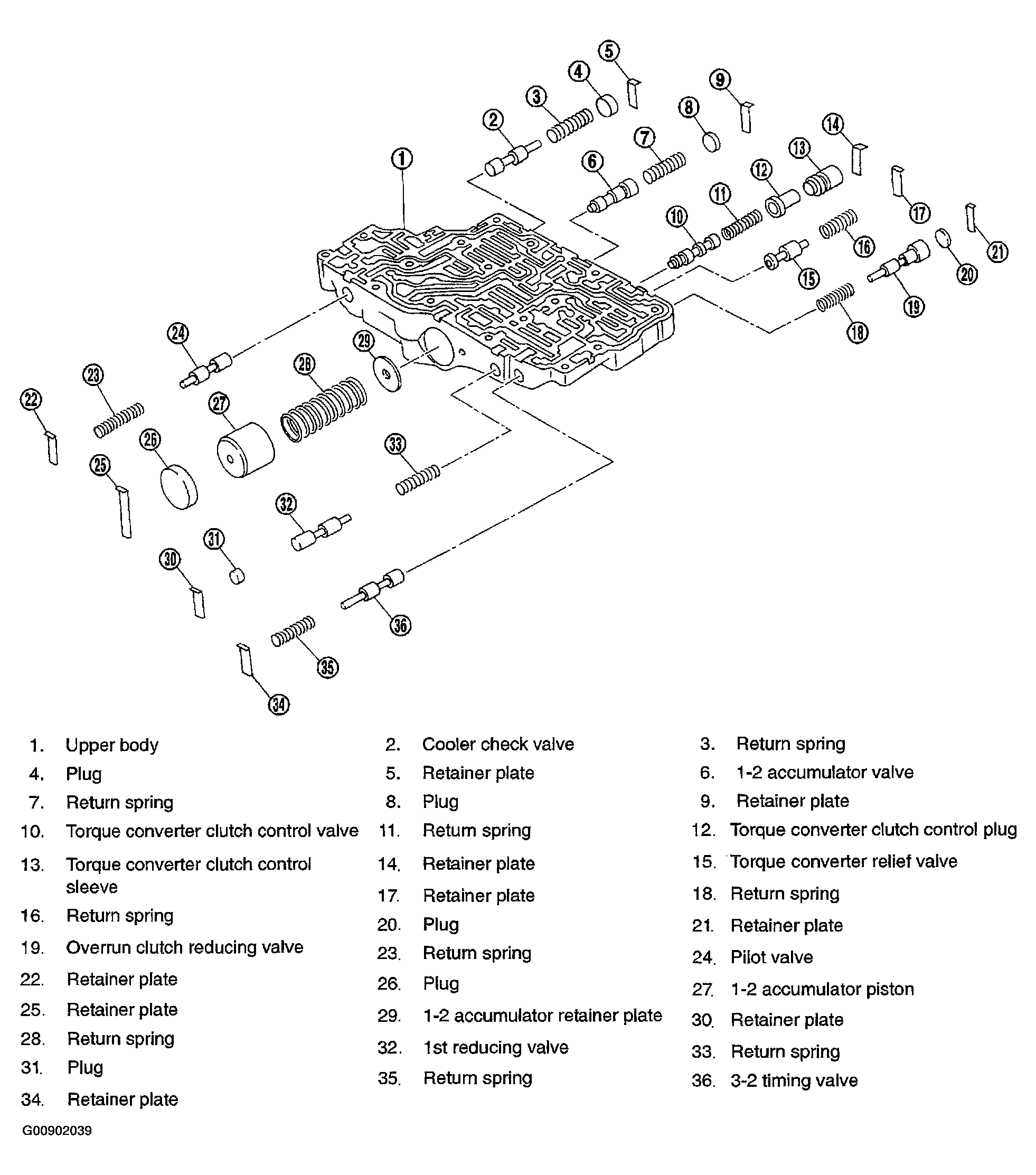

Fig 1: Identifying Control Valve Upper Body Components
Courtesy of NISSAN MOTOR CO., U.S.A.
