Automatic Transaxle - Re4F04B
›
Repair For Component Parts
›
Low & Reverse Brake
›
Components
Low & Reverse Brake: Components

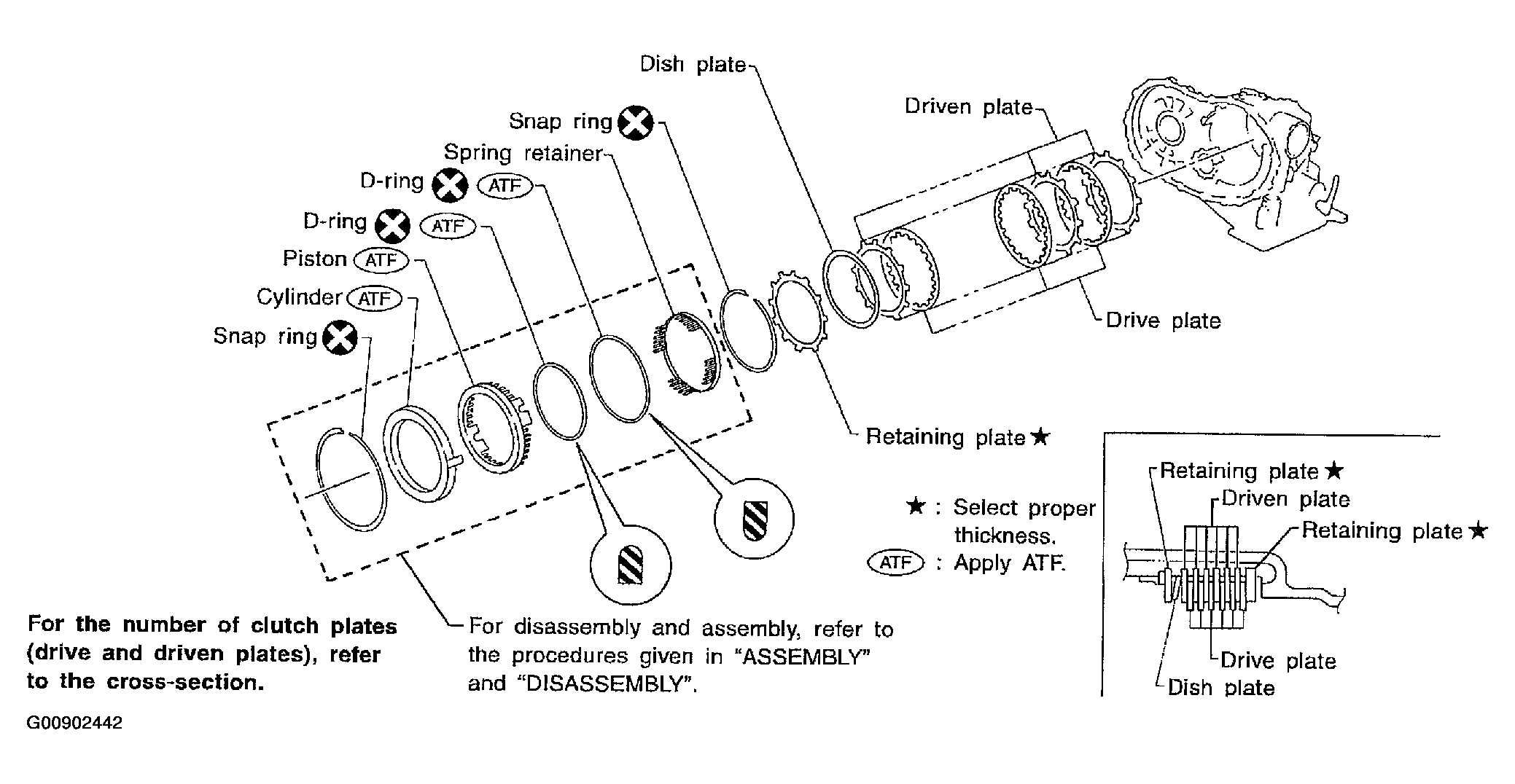

Fig 1: Identifying Low & Reverse Brake Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
