Automatic Transaxle - Re4F04B
›
Repair For Component Parts
›
Manual Shaft
›
Components
Manual Shaft: Components

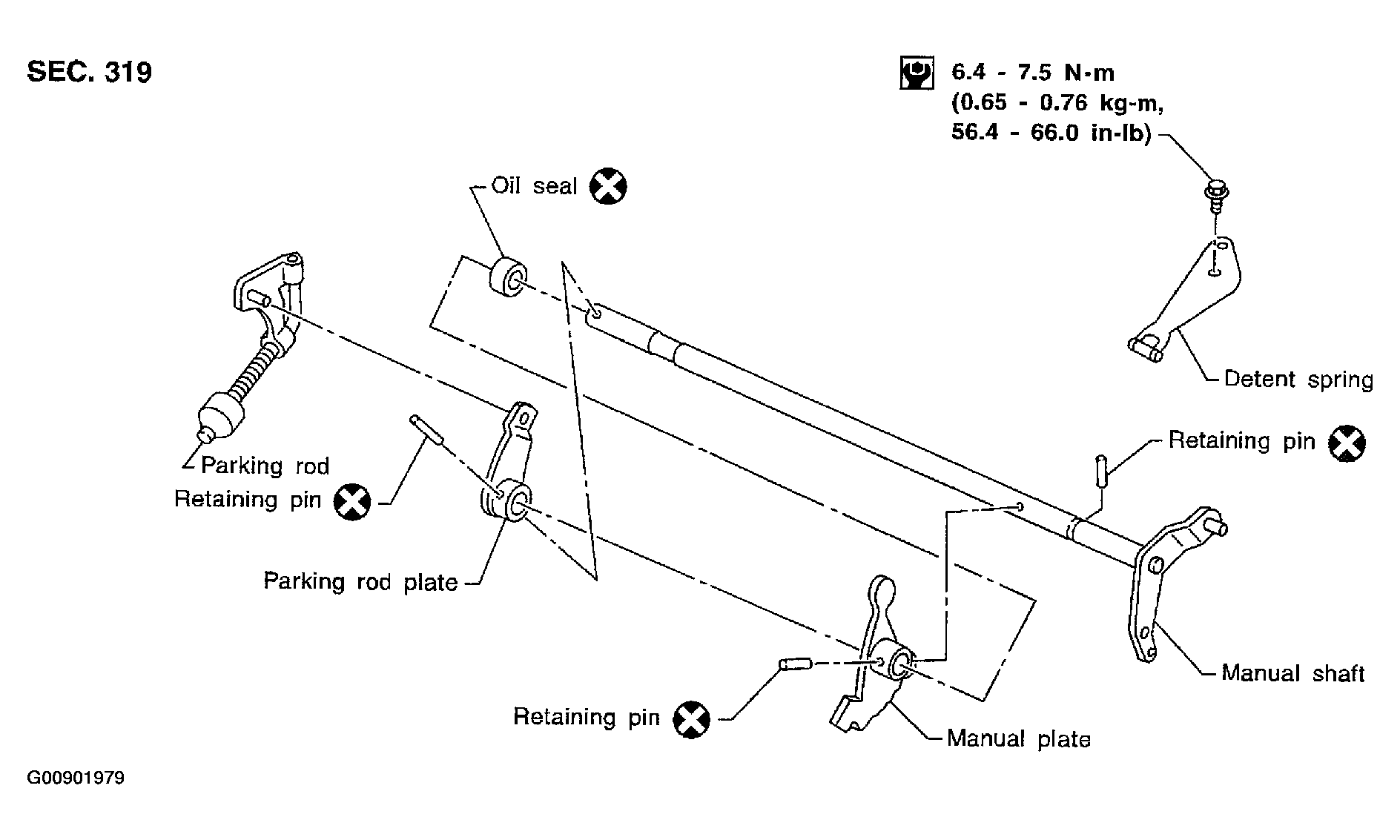

Fig 1: Identifying Manual Shaft Components And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
