Oil Pump: Components

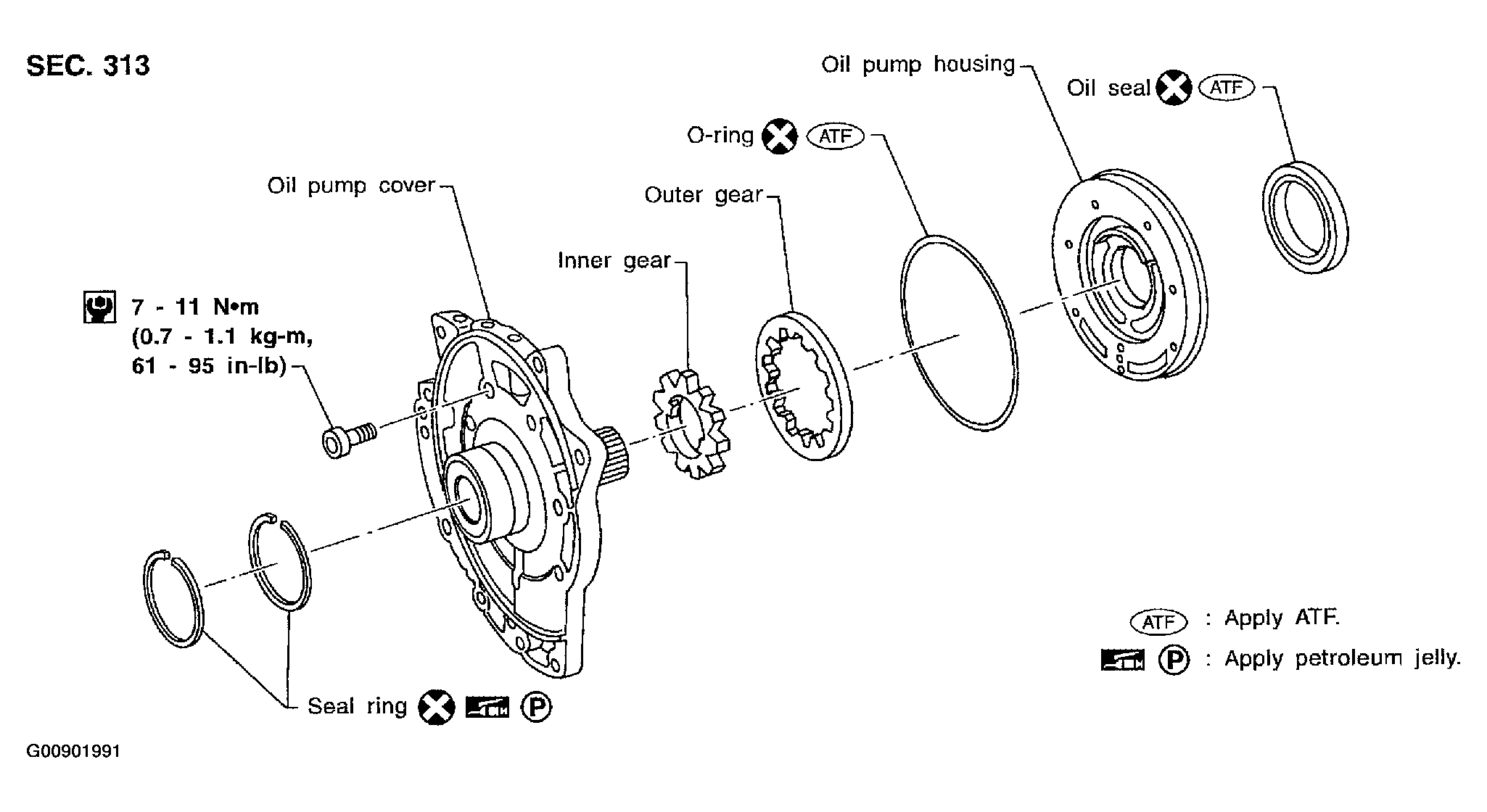

Fig 1: Identifying Oil Pump Components And Tightening Torques
G00901991Courtesy of NISSAN MOTOR CO., U.S.A.
