Automatic Transaxle - Re4F04B
›
Service Data And Specifications (SDS)
›
Turbine Revolution Sensor
Turbine Revolution Sensor

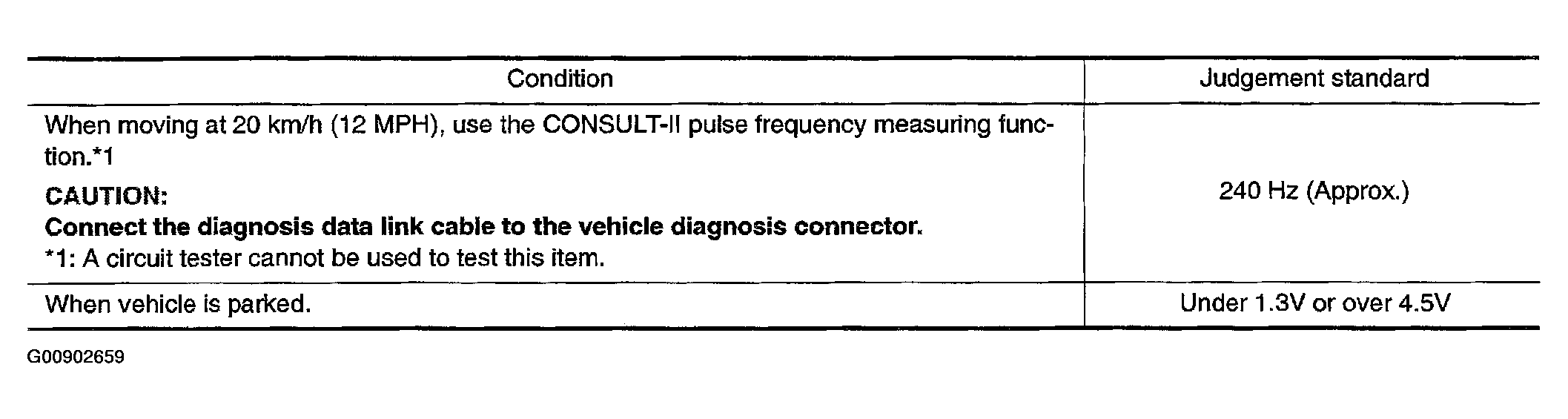

Fig 1: Turbine Revolution Sensor Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
