Line Pressure Test Ports

Location of line pressure test ports are shown in the illustration.

• Always replace pressure plugs as they are self-sealing bolts.

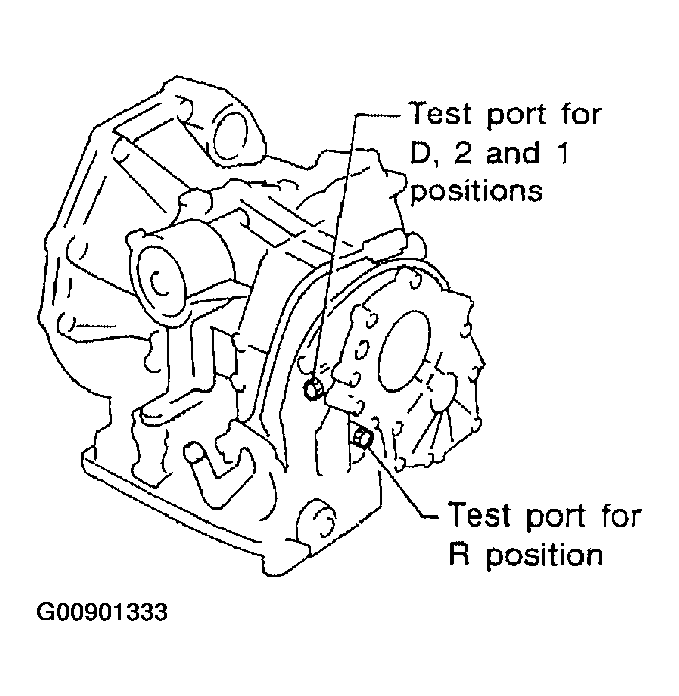

Fig 1: Identifying Location Of Line Pressure Test Ports

Courtesy of NISSAN MOTOR CO., U.S.A.
