Automatic Transaxle - Re4F04B
›
Trouble Diagnosis - Introduction
›
Work Flow
›
Work Flow Chart
Work Flow Chart

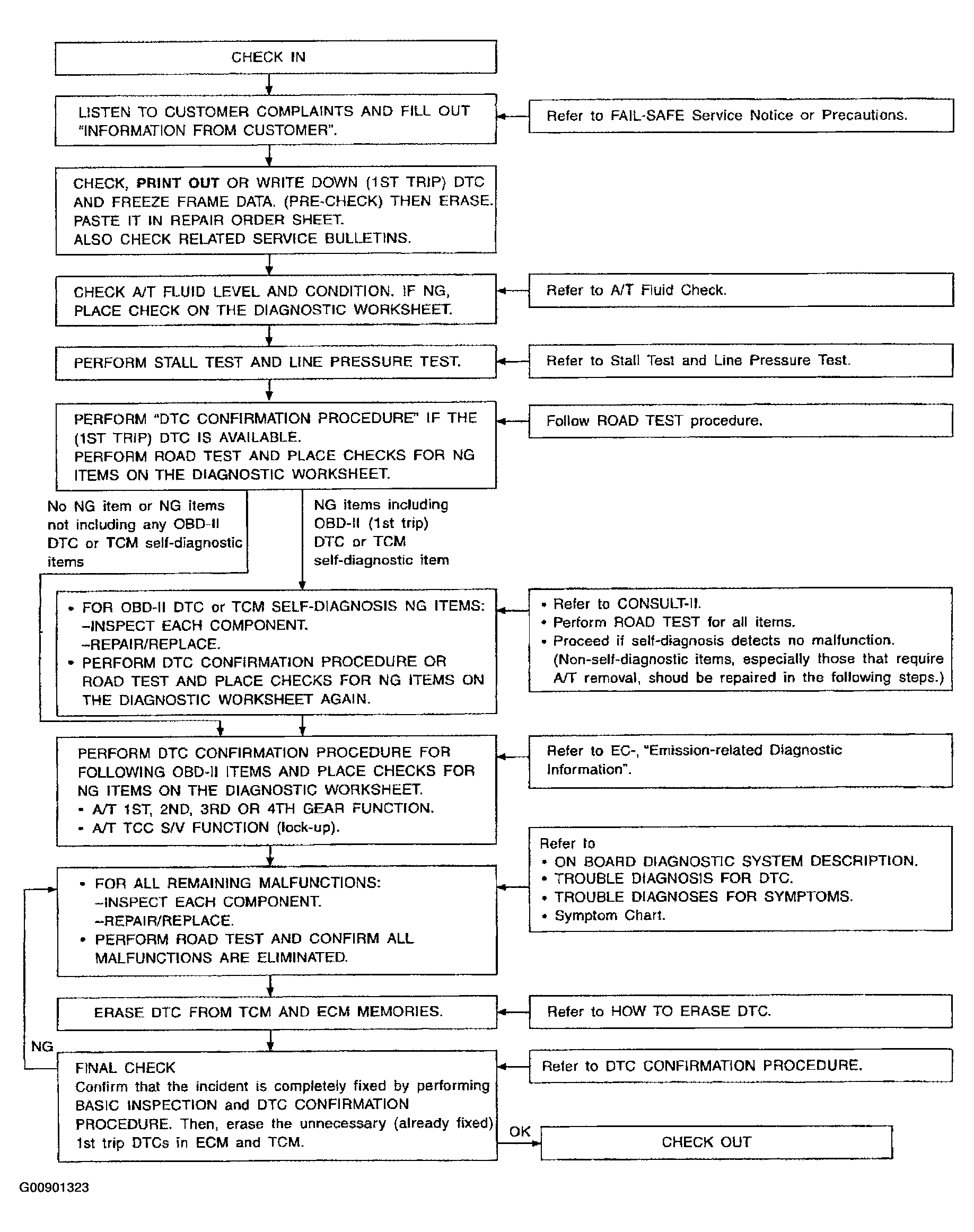

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
