Diagnostic Procedure

1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.

OK or NG

1. OK: GO TO 2.
2. NG: Replace with genuine NISSAN fuel filler cap.

Fig 1: Fuel Filler Cap

Courtesy of NISSAN MOTOR CO., U.S.A.

Check that the cap is tightened properly by rotating the cap clockwise.

OK or NG

1. OK: GO TO 3.
2. NG:
   • Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.
   • Retighten until ratcheting sound is heard.

Check for air releasing sound while opening the fuel filler cap.

OK or NG

1. OK: GO TO  5.
2. NG: GO TO 4.

Refer to FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FULLER CAP) .

OK or NG

1. OK: GO TO 5.
2. NG: Replace fuel filler cap with a genuine one.

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.

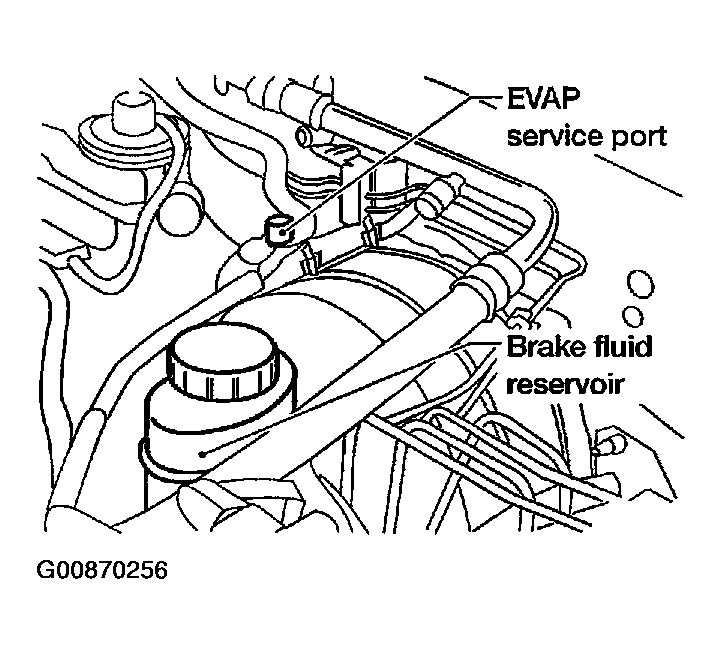

Fig 2: Identifying EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.

Models with CONSULT-II: GO TO 6.

Models without CONSULT-II: GO TO  7.

Fig 3: Identifying EVAP Service Port Adapter

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

1. Turn ignition switch ON.
2. Select "EVAP SYSTEM CLOSE" of "WORK SUPPORT" mode with CONSULT-II.
3. Touch "START" and apply pressure into the EVAP line until the pressure indicator reaches the middle of the bar graph.
   NOTE:

   • Never use compressed air or a high pressure pump.
   • Do not exceed 4.12 kPa (0.042 kg/cm² , 0.6 psi) of pressure in the system.
   Fig 4: Identifying Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details.

   Refer to EVAPORATIVE EMISSION LINE DRAWING

OK or NG

1. OK: GO TO  8.
2. NG: Repair or replace.

Fig 5: Identifying Leak Detector

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Apply 12 volts DC to EVAP canister vent control valve. The valve will close. (Continue to apply 12 volts until the end of test.)
3. Apply 12 volts DC to vacuum cut valve bypass valve. The valve will open. (Continue to apply 12V until the end of test.)
4. Pressurize the EVAP line using pressure pump with 1.3 to 2.7 kPa (10 to 20 mmHg, 0.39 to 0.79 inHg), then remove pump and EVAP service port adapter.
   NOTE:

   • Never use compressed air or a high pressure pump.
   • Do not exceed 4.12 kPa (0.042 kg/cm² , 0.6 psi) of pressure in the system.

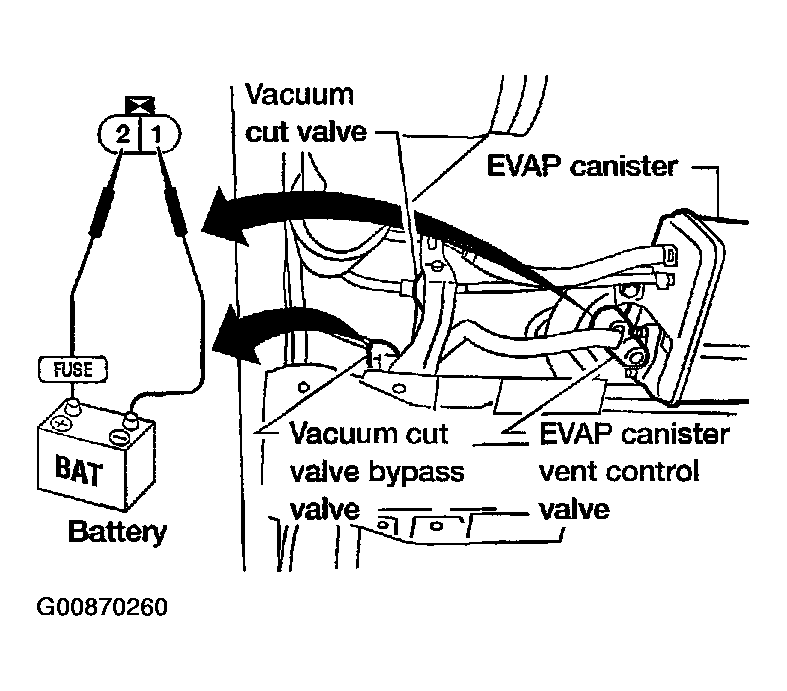

   Fig 6: Applying 12 Volts DC To EVAP Canister

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details. Refer to EVAPORATIVE EMISSION LINE DRAWING

OK or NG

1. OK: GO TO 8.
2. NG: Repair or replace.

Fig 7: Identifying Leak Detector

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Check that A  and C  are not clogged by blowing air into B  with A  , and then C  plugged.
5. In case of NG in items 2-4, replace the parts.

OK or NG

1. OK: GO TO 9.
2. NG: Replace water separator.

Fig 8: Checking Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to Diagnostic Procedure  .

OK or NG

1. OK: GO TO 10.
2. NG: Repair or replace EVAP canister vent control valve and O-ring or harness/connector.

1. Remove EVAP canister with EVAP canister vent control valve attached.
2. Does water drain from the EVAP canister?

Yes or No

1. Yes: GO TO 11.
2. No (With CONSULT-II): GO TO  13.
3. No (Without CONSULT-II): GO TO  14.

Fig 9: Identifying EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.

Weigh the EVAP canister with the EVAP canister vent control valve attached.

The weight should be less than 1.8 kg (4.0 lb).

OK or NG

1. OK (With CONSULT-II): GO TO  13.
2. OK (Without CONSULT-II): GO TO  14.
3. NG: GO TO 12.

Check the following.

• EVAP canister for damage
• EVAP hose between EVAP canister and water separator for clogging or poor connection
  1. Repair hose or replace EVAP canister.

With CONSULT-II

1. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
2. Start engine.
3. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode.

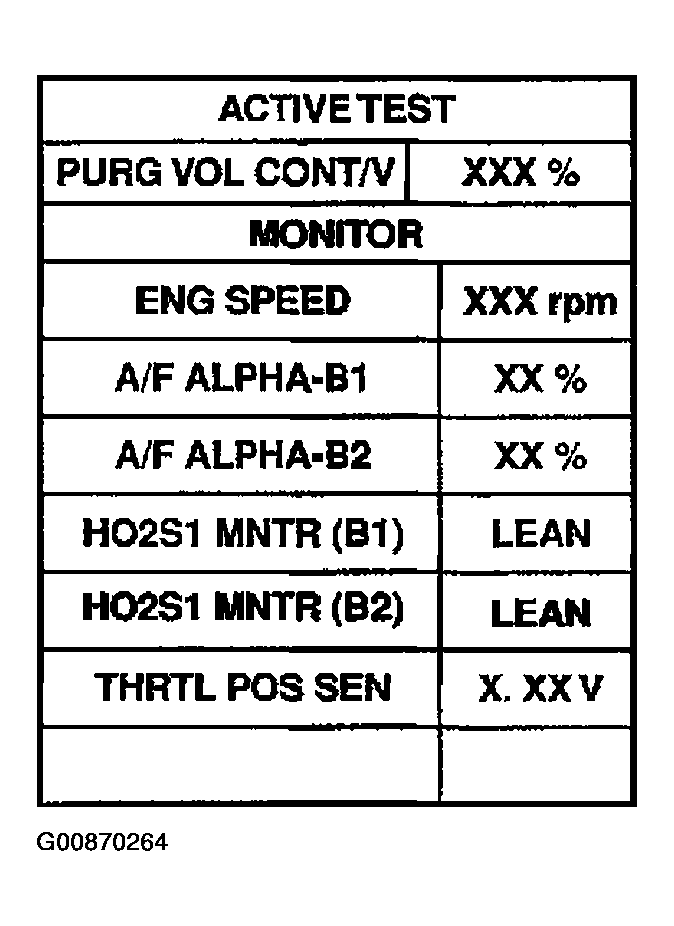

   Fig 10: Identifying Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Touch "Qu" on CONSULT-II screen to increase "PURG VOL CONT/V" opening to 100%.
5. Check vacuum hose for vacuum when revving engine up to 2, 00 RPM.
   1. Vacuum should exist.

OK or NG

1. OK: GO TO  16.
2. NG: GO TO  15.

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
4. Start engine and let it idle for at least 80 seconds.
5. Check vacuum hose for vacuum when revving engine up to 2, 00 RPM.
   1. Vacuum should exist.

OK or NG

1. OK: GO TO  17.
2. NG: GO TO 15.

Check vacuum hoses for clogging or disconnection. Refer to Vacuum Hose Drawing .

OK or NG

1. OK (With CONSULT-II): GO TO 16.
2. (Without CONSULT-II): GO TO  17.
3. NG: Repair or reconnect the hose.

With CONSULT-II

1. Start engine.
2. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening.

OK or NG

1. OK: GO TO  18.
2. NG: GO TO 17.

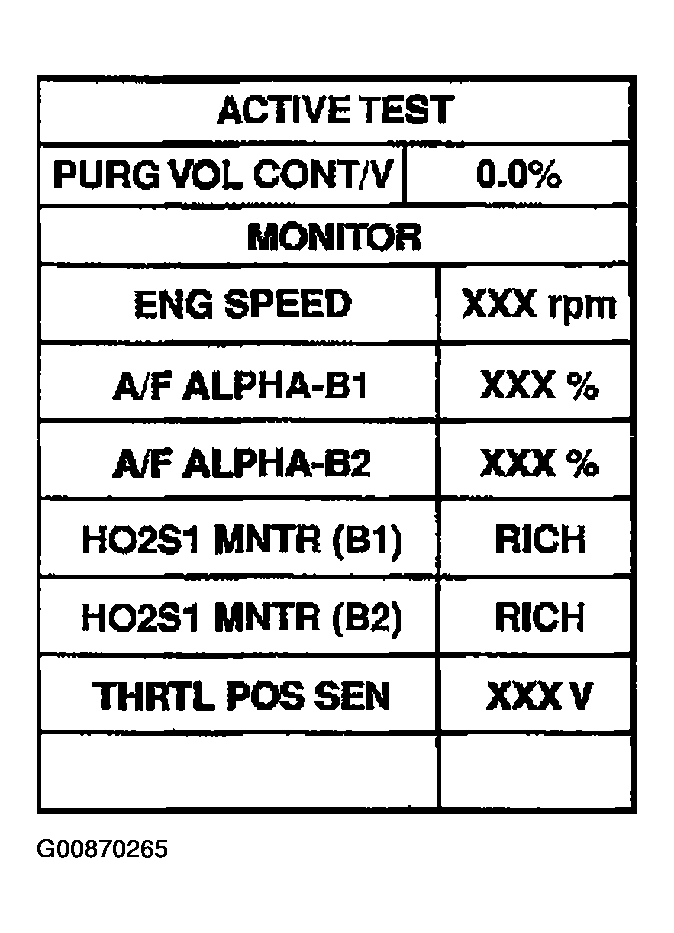

Fig 11: Active Test

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

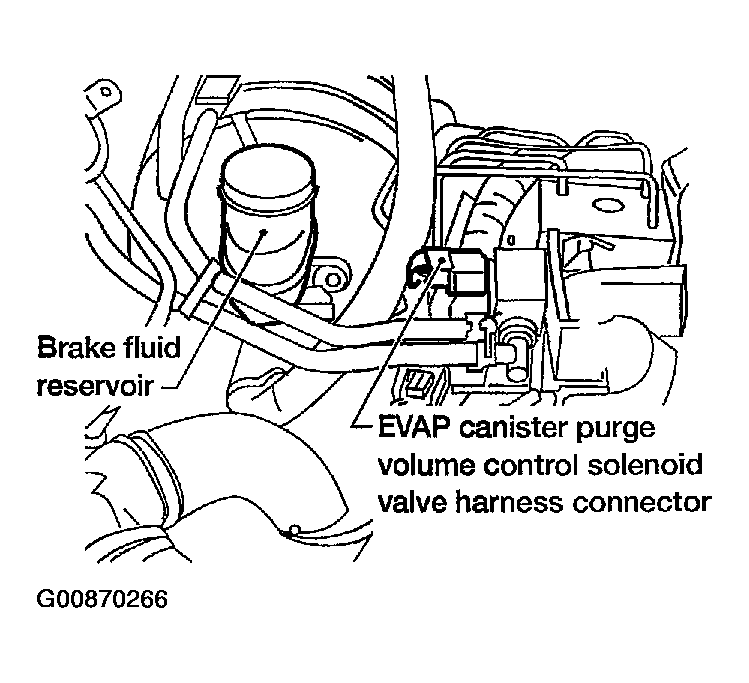

Fig 12: Identifying Brake Fluid Reservoir & EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Air Passage Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

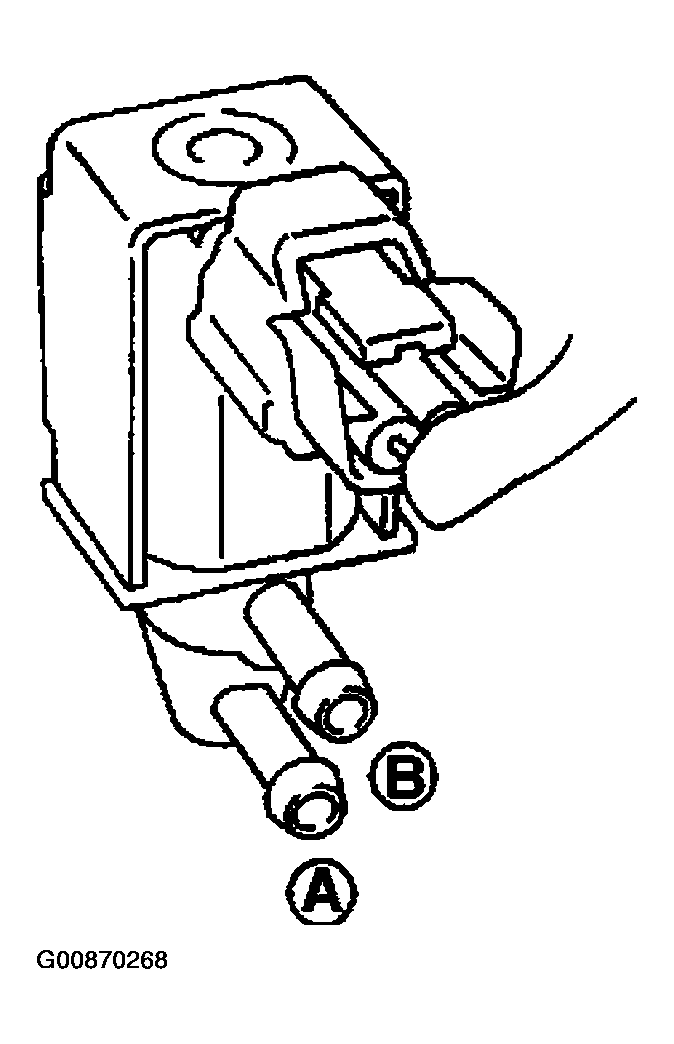

Fig 14: Checking Air Passage

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

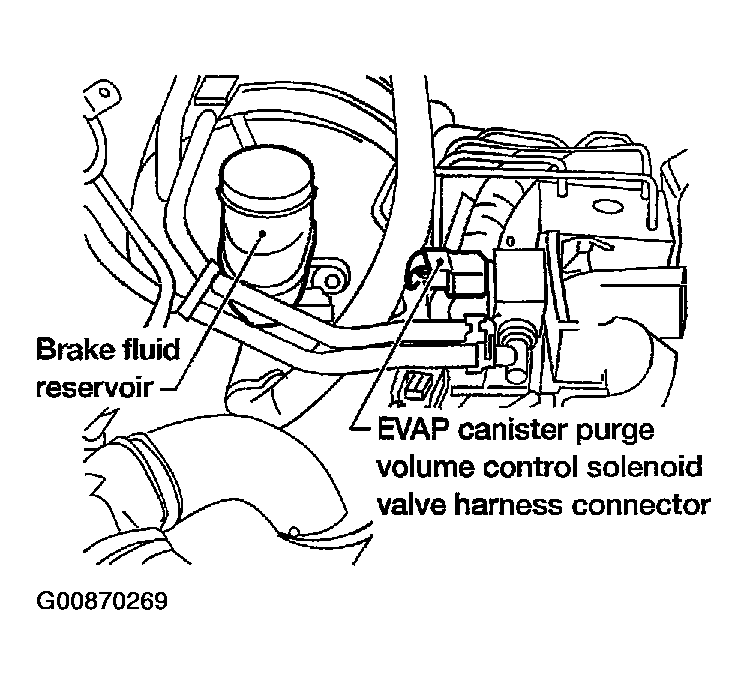

Fig 15: Identifying Brake Fluid Reservoir & EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Air Passage Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Checking Air Passage With Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 18.
2. NG: Replace EVAP canister purge volume control solenoid valve.

1. Remove fuel level sensor unit.
2. Check resistance between fuel level sensor unit terminals 1 and 4 by heating with hot water as shown in the figure.

Fig 18: Temperature And Resistance Table

Courtesy of NISSAN MOTOR CO., U.S.A.

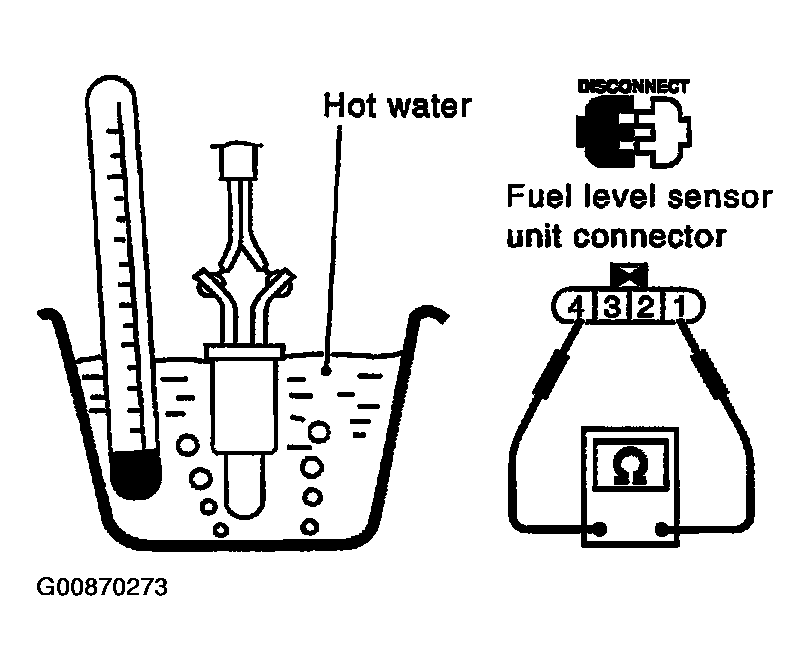

Fig 19: Checking Resistance Between Fuel Level Sensor Unit Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 19.
2. NG: Replace fuel level sensor unit. See FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY .

1. Remove EVAP control system pressure sensor with its harness connector connected.
2. Remove hose from EVAP control system pressure sensor.
3. Turn ignition switch ON.
4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.
5. Check input voltage between ECM terminal 62 and ground.

Fig 20: Voltage Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

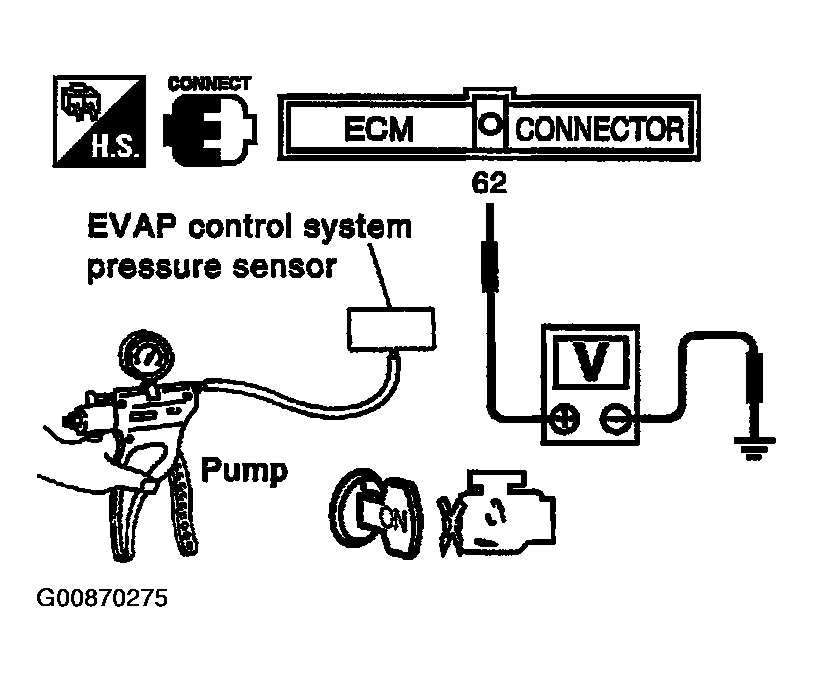

Fig 21: Checking Input Voltage Between ECM Terminal 62 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 20.
2. NG: Replace EVAP control system pressure sensor.

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection. Refer to EVAPORATIVE EMISSION LINE DRAWING

OK or NG

1. OK: GO TO 21.
2. NG: Repair or reconnect the hose.

Clean EVAP purge line (pipe and rubber tube) using air blower.

1. GO TO 22.

Refer to FUEL WARNING SENSOR CHECK .

OK or NG

1. OK: GO TO 23.
2. NG: Replace fuel level sensor unit. See FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY .

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

1. INSPECTION END.
