Engine Control System - VG33E
›
Trouble Diagnosis
›
CONSULT-II Function
›
Active Test Mode
›
Test Item
Test Item

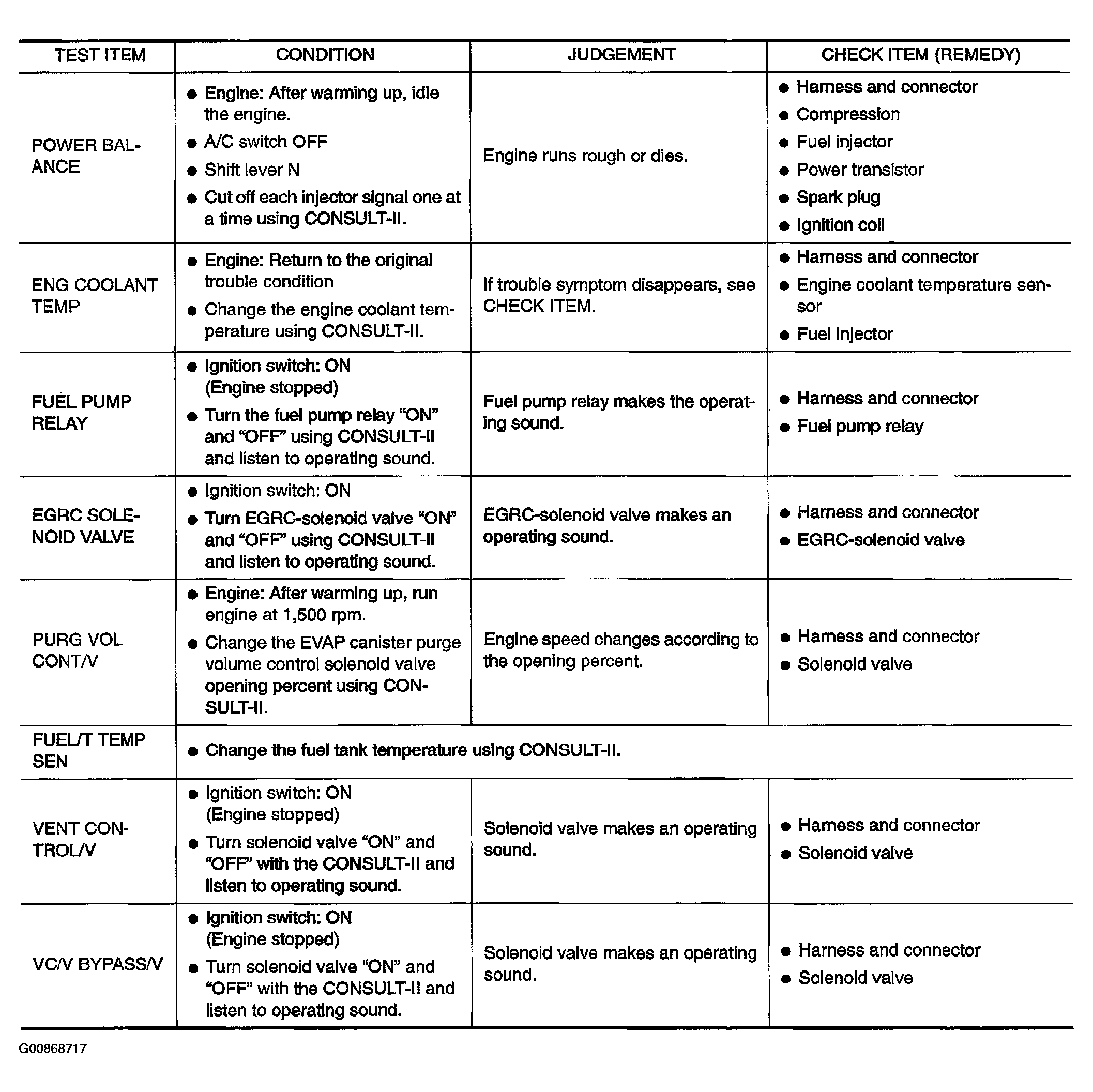

Fig 1: ACTIVE TEST MODE (Test Item) Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

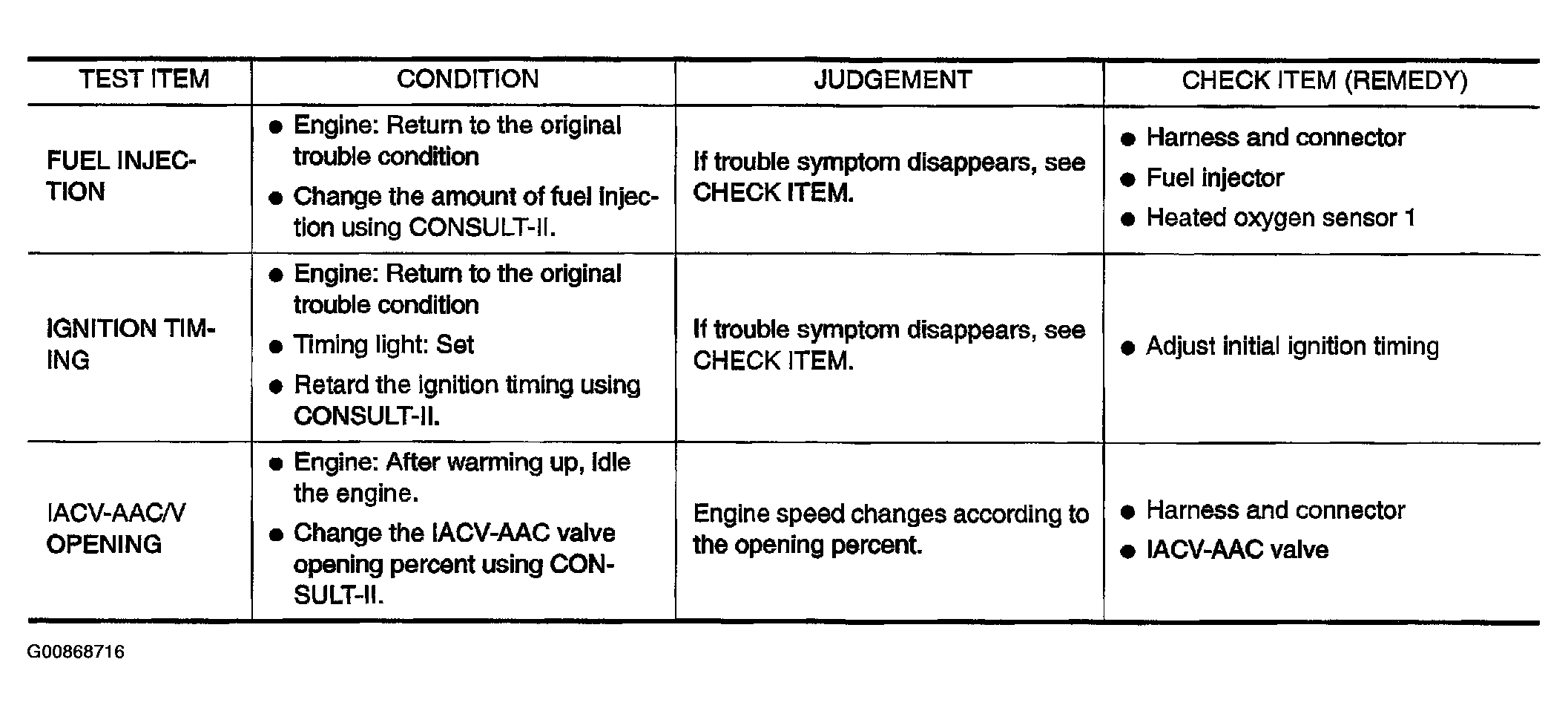

Fig 2: ACTIVE TEST MODE (Test Item) Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
