Procedure For DTC P0102

With CONSULT-II

1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and wait at least 5 seconds at most.
4. If DTC is detected, go to Diagnostic Procedure ".

   If DTC is not detected, go to next step.

5. Start engine and let it idle for at least 6 seconds.
6. If DTC is detected, go to Diagnostic Procedure .

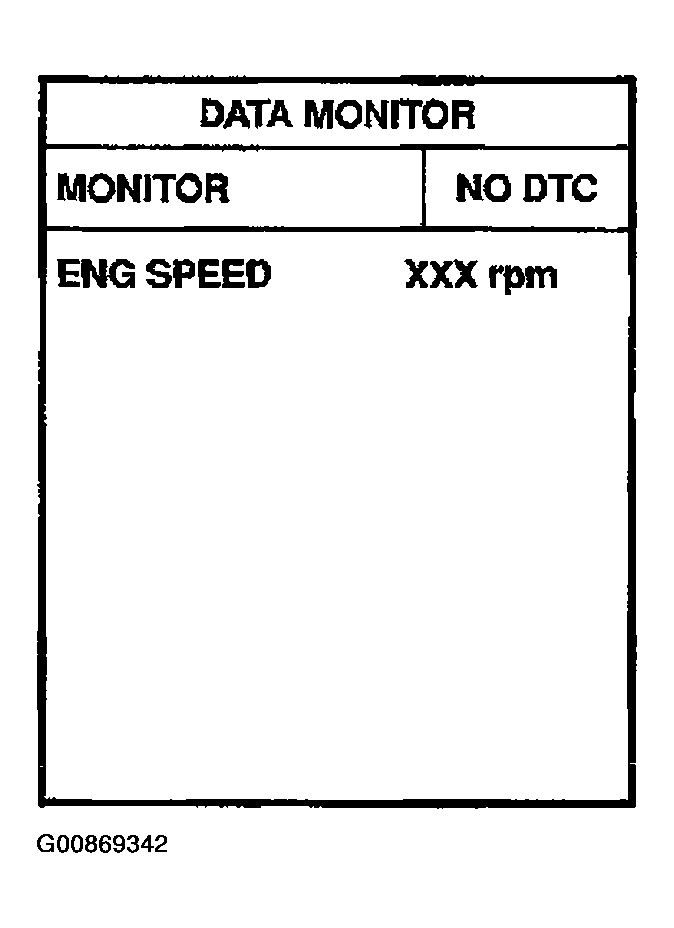

Fig 1: Displaying DATA MONITOR Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "With CONSULT-II".
