Engine Coolant Temperature Sensor

Check resistance as shown in the figure.

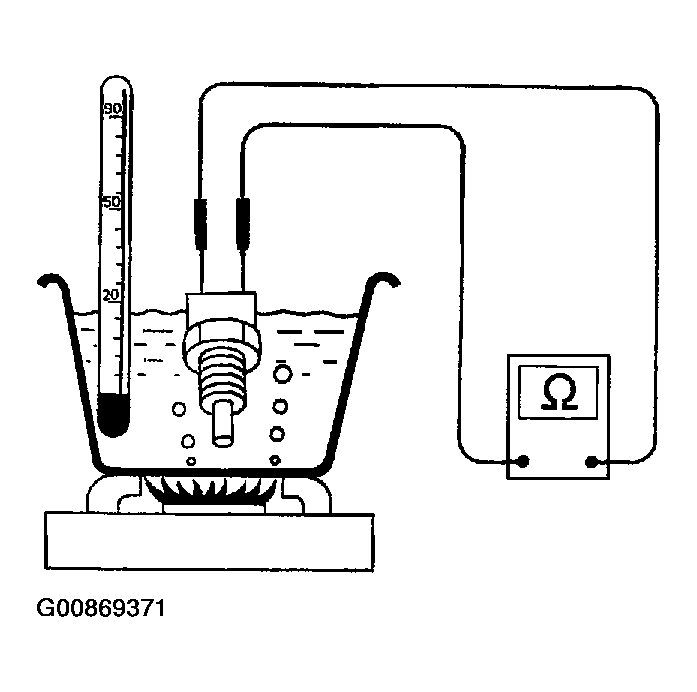

Fig 1: Checking Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

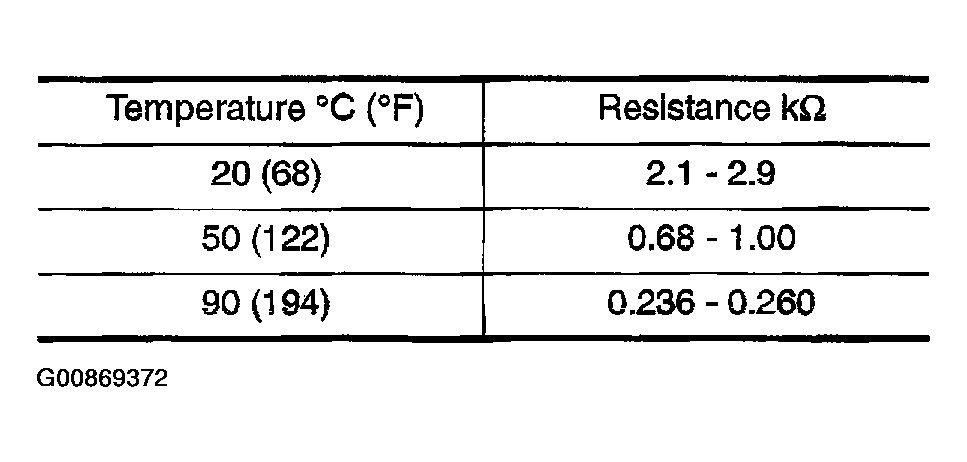

Fig 2: Resistance Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

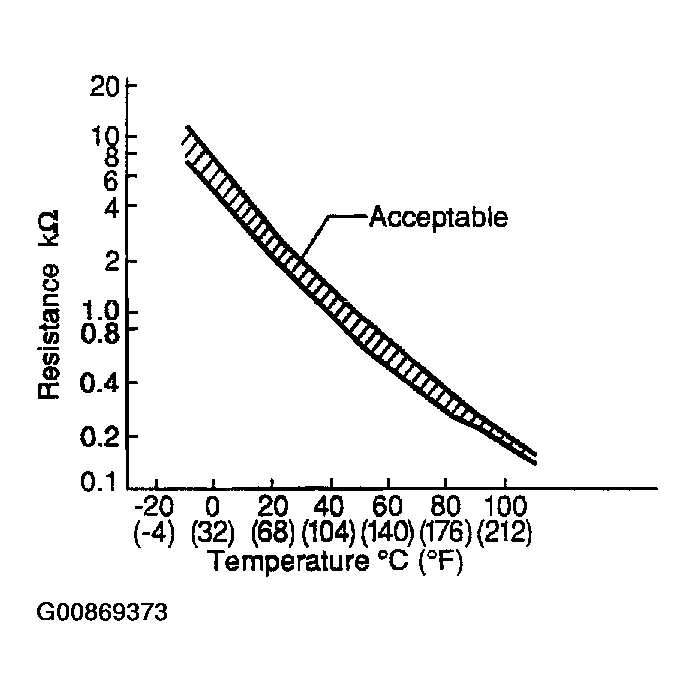

Fig 3: Temperature And Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
